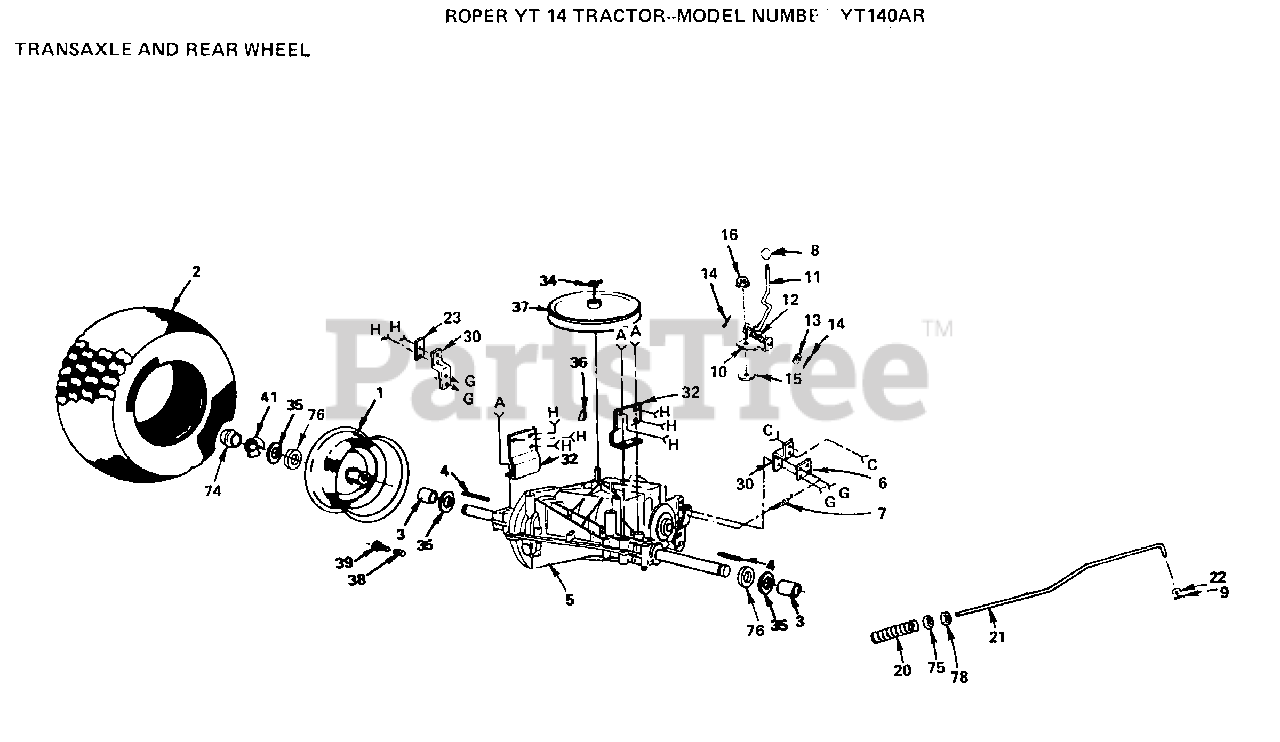

YT 140 AR - Electrolux/AYP Lawn Tractor TRANSAXLE, REAR WHEELS Parts Diagram

Lawn Tractor

TRANSAXLE, REAR WHEELS Parts Diagram

  • Title
1

Electrolux/AYP 106108X

SUB= 106108X417

$

$

Not available

2

Electrolux/AYP 106268X

SUB= 122074X
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 105702X

"SPACER, SPLIT LT"

$

$

Not available

4

Electrolux/AYP 2703J

SUB= 123583X

$

$

Not available

$

$

Not available

6

Electrolux/AYP 106320X

BRACKET-SPRING LT
(Superseded to 583650201)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 106319X

SPRING-EXT LT
(Superseded to 583650101)

$18.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 106919X

PLATE SHIFT LT
(Superseded to 532106919)

$

$

Not available

11

Electrolux/AYP 105699X

SUB= 110458X

$

$

Not available

12

Electrolux/AYP 105700X

SPRING LT
(Superseded to 532105700)

$

$

Not available

13

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

14

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

20

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 105752X

SUB= 110437X

$

$

Not available

22

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 106157X

PLATE-STRAP LT

$

$

Not available

30

Electrolux/AYP 105842X

"STRAP, TORQUE LT"

$

$

Not available

32

Electrolux/AYP 3723J

SUB= 109167X

$

$

Not available

34

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

35

$

$

Not available

36

Murray 2228M

SUB= 2228M1

$

$

Not available

37

Electrolux/AYP 106192X

SUB= 125479X

$

$

Not available

38

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

39

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

41

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

75

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

76

$

$

Not available

78

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
