YT 130 (954820111-B) - Husqvarna Yard Tractor (1996-01) DRIVE Parts Diagram

Yard Tractor

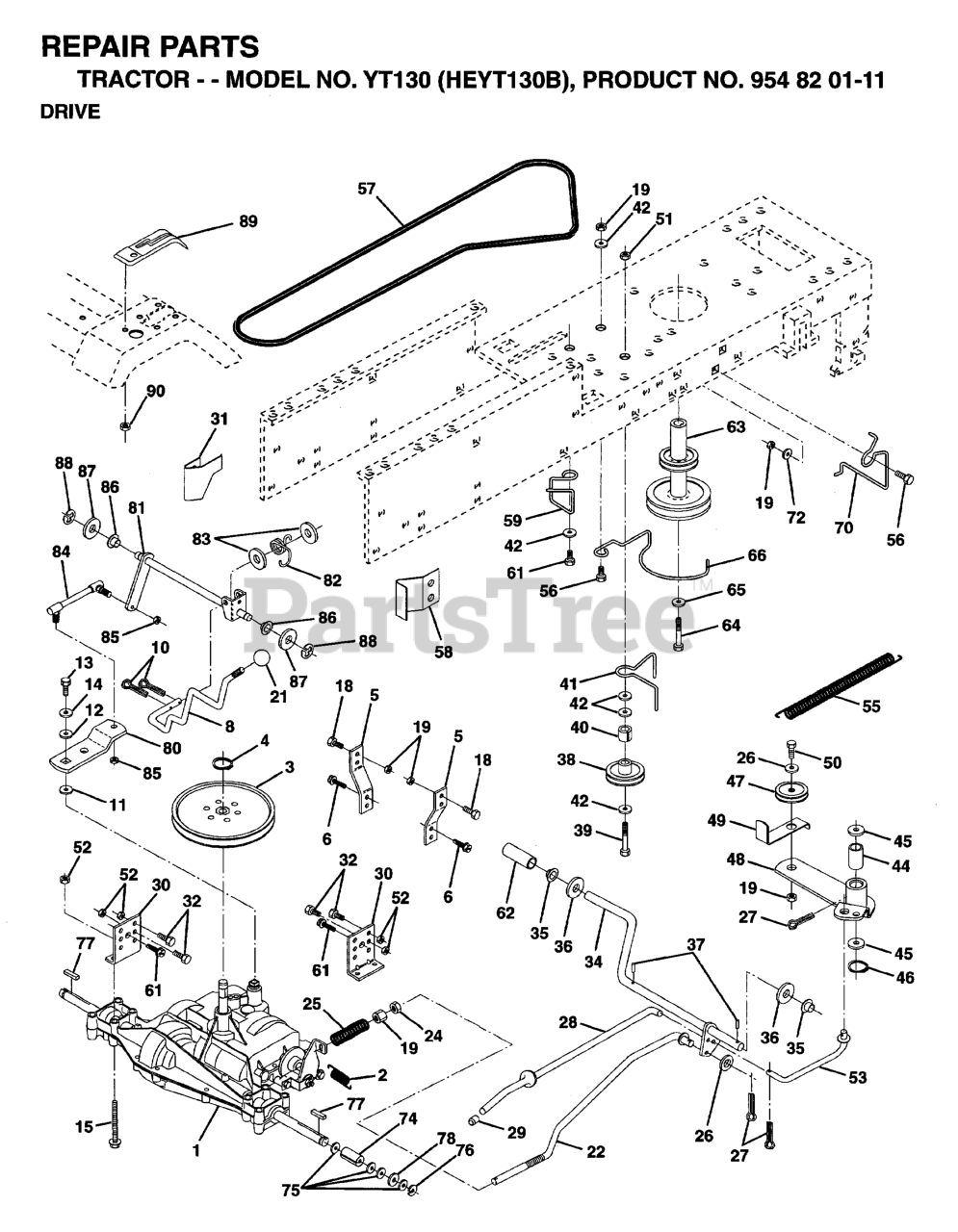

DRIVE Parts Diagram

  • Title
90

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

8

$

$

Not available

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532130801

V-BELT
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

36

$6.49

$

Usually ships in 3-10 days

0

51

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532140186

PULLEY.ENG.CL.MECH.SLVR.LT/YT

$113.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

46

$6.49

$

In Stock, Qty 7

0

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

81

Husqvarna 532136933

SHAFT ASMBLY
(Superseded to 532161077)

$

$

Not available

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

89

$

$

Not available

4

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 7

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

41

Husqvarna 532109070

BELT KEEPER LT NLA

$6.49

$

Usually ships in 3-10 days

0

74

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

84

$60.99

$

Usually ships in 3-10 days

0

48

$

$

Not available

64

Husqvarna 871170764

BOLT
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 532105706

BEARING LT (2 2)

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532145605

TRANSAXLE ASSY 6 SPD
(Superseded to 532170269)

$

$

Not available

66

Husqvarna 532129921

KEEPER, BELT

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

80

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 20+

0

45

$

$

Not available

86

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

12

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Gauge

$

$

Not available

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874550412

BOLT 1/4-28X3/4
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532123666

PULLEY TRANS

$45.99

$

In Stock, only 1 left!

0

72

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

76

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532149001

SHAFT PEDAL FOOT

$34.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

85

Husqvarna 532150360

NUT LOCK CENTER 1/4 -28 FNTHD

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

KEEPER BELT ENG

$

$

Not available

88

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

$31.99

$

Usually ships in 3-10 days

0

6

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

87

$6.49

$

Usually ships in 3-10 days

0
