YT 130 (954150004-G) - Husqvarna Yard Tractor (1998-12) STEERING Parts Diagram

Yard Tractor

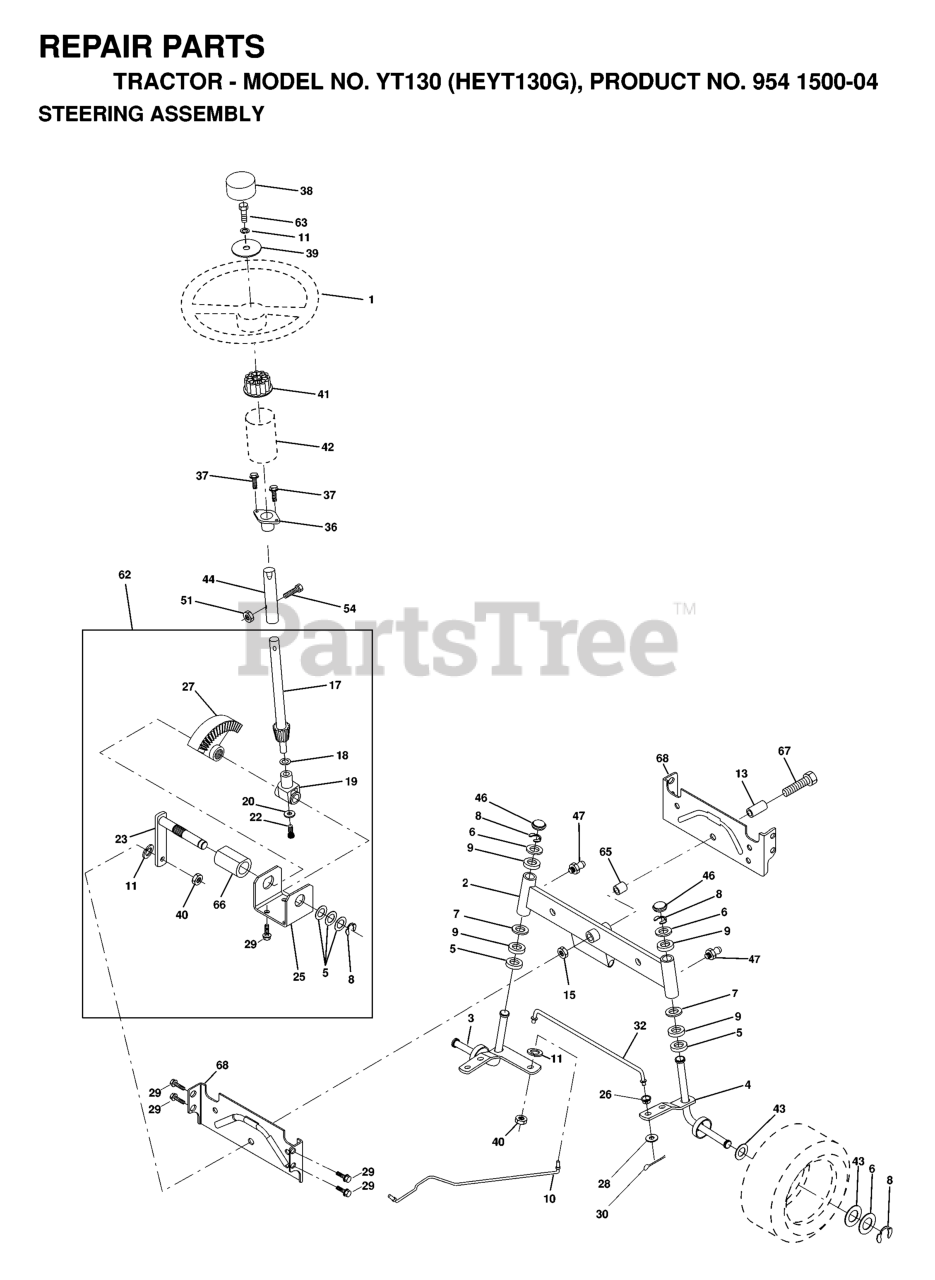

STEERING Parts Diagram

  • Title
42

Husqvarna 532155092

BOOT, STEERING
(Superseded to 532145054)

$

$

Not available

29

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

1

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

2

Husqvarna 532154427

AXLE ASSY
(Superseded to 532175131)

$68.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 819133808

WASHER T
(Superseded to 819133812)

$

$

Not available

37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532156594

KIT, STEERING ASSEMBLY
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

13

Husqvarna 532154779

BEARING AXLE

$10.99

$

In Stock, only 1 left!

0

65

Husqvarna 532154780

SPACER AXLE

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 5

0

8

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154404

BEARING ARM

$6.49

$

In Stock, only 3 left!

0

$4.99

$

In Stock, Qty 10

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

22

Husqvarna 871200410

SCREW HEX SOCKET 1/4-20 X 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

67

Husqvarna 874781044

Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5

$

$

Not available

51

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

4

Husqvarna 532157473

SPINDLE ASM RH

$26.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 532155099

BUSHING, STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

54

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 12

0

44

Husqvarna 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

17

Husqvarna 532156546

SHAFT ASM STEERING
(Superseded to 531166901)

$49.99

$

In Stock, Qty 5

0

3

Husqvarna 532156483

SPINDLE ASM LH

$26.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

20

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532154406

BRACKET STEERING

$8.99

$

In Stock, only 1 left!

0

23

Husqvarna 532127501

SHAFT PITMAN
(Superseded to 532156365)

$

$

Not available

38

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

40

Husqvarna 532124701

GRIPCO NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0

10

Husqvarna 532156438

DRAGLINK-STAMPED

$93.99

$

In Stock, only 1 left!

0

26

Husqvarna 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

68

Husqvarna 532154429

AXLE, BRACE

$21.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

$3.49

$

Usually ships in 3-10 days

0
