YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) Transaxle And Rear Wheel Parts Diagram

Yard Tractor

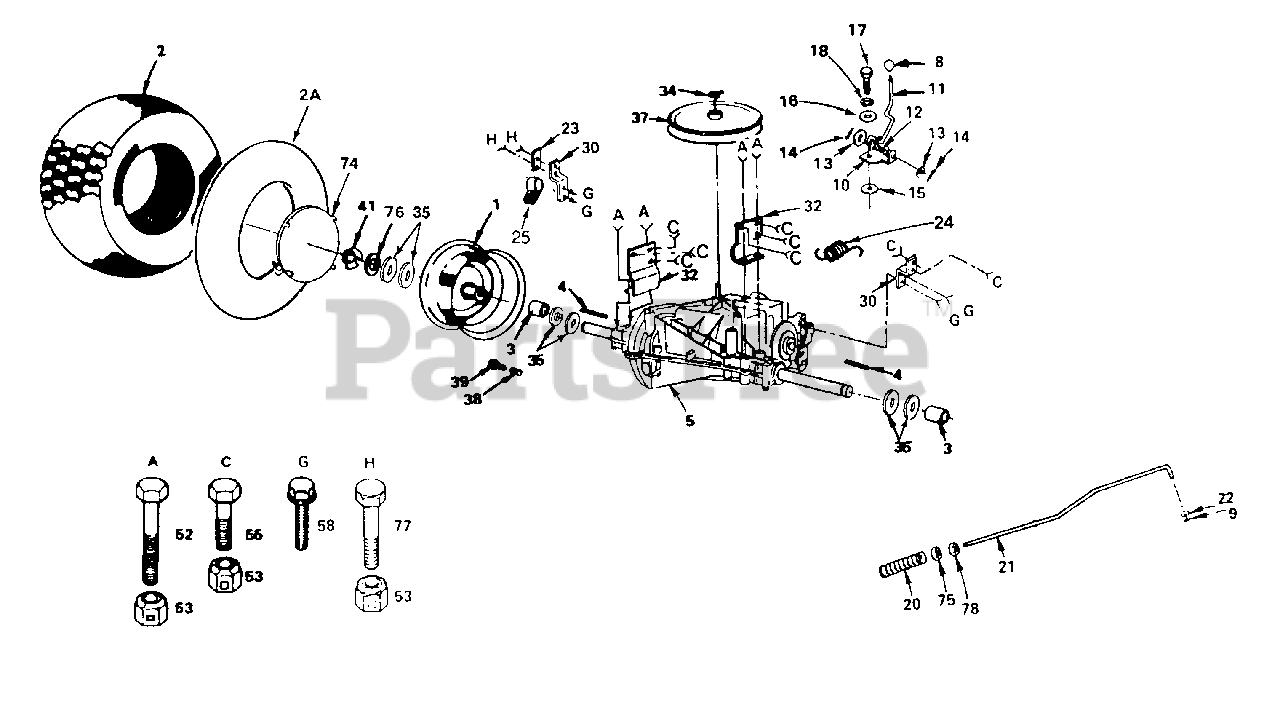

Transaxle And Rear Wheel Parts Diagram

  • Title

1

Husqvarna 532124723

Rim Assembly 8" Rear
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532106268

Tire, 18 x 9.50 - 8 (Tubeless)
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

2A

Husqvarna 532124926

Tube, Tire
(Superseded to 532007152)

Note: (Not furnished with Tractor)

$74.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532109502

Spacer, Split

$

$

Not available

4

Husqvarna 532123583

Key, Square 3/16 x 2.5

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 532124162

Transaxle, 6 Speed, Model No.4360-19

$

$

Not available

8

Husqvarna 532121274

Knob, Control

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 876020412

Cotter Pin, 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 532106919

Plate, Rod, Shift

$

$

Not available

11

Husqvarna 532124461

Rod, Shifter

$

$

Not available

12

Husqvarna 532105700

Spring, Torsion

$

$

Not available

13

Husqvarna 819151216

Washer, 15/32 x 3/4 x 16 Ga.

$

$

Not available

14

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 819091210

Washer, 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 871040412

Bolt, Hex 1/4- 28 x 3/4, Gr.8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532110437

Rod, Brake
(Superseded to 532131867)

$

$

Not available

22

Husqvarna 819131316

Washer, 13/32 x 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532106157

Plate, Strap, Torque

$

$

Not available

24

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

30

Husqvarna 532121520

Strap, Torque

$7.99

$

In Stock, only 3 left!

0

32

Husqvarna 532109167

Bracket, Transaxle

$

$

Not available

34

Husqvarna 812000028

Ring, Klip

$7.49

$

In Stock, Qty 8

0

35

Husqvarna 532121749

Washer, 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123666

Pulley, Transaxle

$45.99

$

In Stock, only 1 left!

0

38

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

39

Husqvarna 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

41

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 874760644

Bolt, Hex 3/8-16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 873680600

Nut, Lock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 874760612

Bolt, Hex 3/8 - 16 x 3/4

$4.99

$

In Stock, only 2 left!

0

58

Husqvarna 817490512

Screw, Hex Washer Hd. Thd Forming, Type TT 5/16 18 UNC x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

74

Husqvarna 532124578

Cap, Hub, Rear

$

$

Not available

75

Husqvarna 873800600

Nut, Lock, Hex, Washer Insert, 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532121748

Washer, 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 873350600

Nut, Hex Jam, 3/8 - 16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
