YT 125 (954000041) - Husqvarna Yard Tractor (1990-01) Chassis And Enclosures (Part 1) Parts Diagram

Yard Tractor

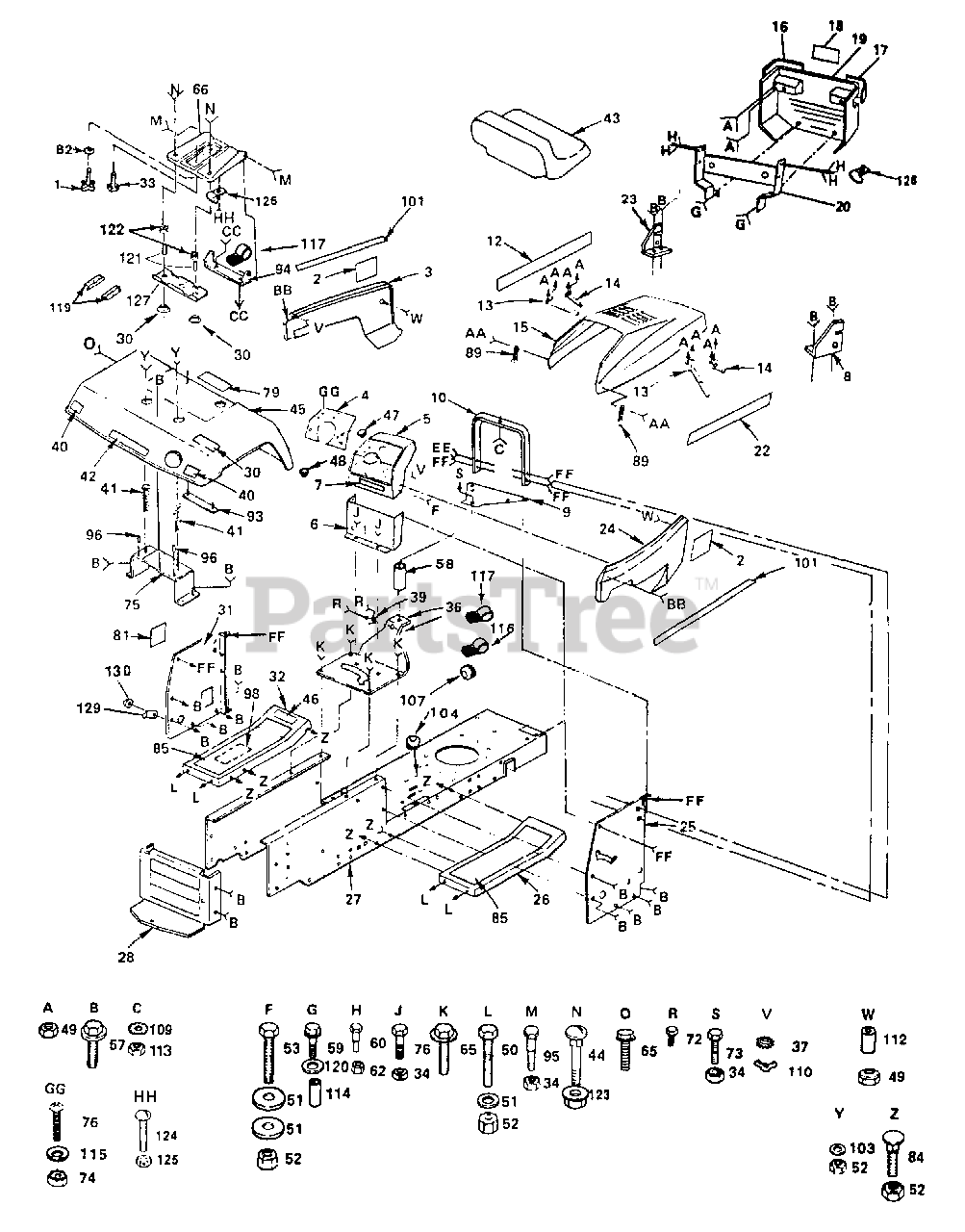

Chassis And Enclosures (Part 1) Parts Diagram

  • Title

1

Husqvarna 532120068

Adjustment Knob
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

2

Husqvarna 532124485

Decal, Side Panel

$

$

Not available

3

Husqvarna 532124905

Panel, Side, L.H.

$

$

Not available

4

Husqvarna 532124991

Dash Plate

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104783

Dash Assembly, Lower

$

$

Not available

7

Husqvarna 532109821

Decal, Instruction

$

$

Not available

8

Husqvarna 532110853

Bracket Assembly, R.H.

$

$

Not available

9

Husqvarna 532106965

Plate, Support, Battery

$

$

Not available

10

Husqvarna 532124130

Support Assembly, Dash

$

$

Not available

12

Husqvarna 532124480

Decal, Hood, L.H.

$

$

Not available

13

Husqvarna 532106784

Strap Assembly, Hinge, Rear

$

$

Not available

14

Husqvarna 532104618

Strap Assembly, Hinge, Front

$

$

Not available

15

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

16

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

17

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

18

Husqvarna 532124483

Decal, Grill

$

$

Not available

19

Husqvarna 532126689

Grill Assembly
(Superseded to 532157236)

$

$

Not available

20

Husqvarna 532126025

Support Assembly, Grill

$

$

Not available

22

Husqvarna 532124481

Decal, Hood, R.H.

$

$

Not available

23

Husqvarna 532110852

Bracket Assembly, L.H.

$

$

Not available

24

Husqvarna 532125063

Panel, Side, R.H.

$

$

Not available

25

Husqvarna 532110828

Panel, Dash, R.H.

$

$

Not available

26

Husqvarna 532125036

Footrest, R.H.

$

$

Not available

27

Husqvarna 532121277

Chassis

$

$

Not available

28

Husqvarna 532121306

Drawbar
(Superseded to 532145009)

$

$

Not available

30

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532124118

Panel, Dash, L.H.

$

$

Not available

32

Husqvarna 532124722

Footrest, L.H
(Superseded to 532147203)

$

$

Not available

33

Husqvarna 532121144

Bolt, Shoulder
(Superseded to 532127018)

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 873680500

Locknut, Gripco, 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532124800

Saddle

$

$

Not available

37

Husqvarna 811030400

Lockwasher, 1/4 Int./Ext.
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

39

Husqvarna 532124720

Bushing, Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

40

Husqvarna 532106202

Reflector, Taillight

$

$

Not available

41

Husqvarna 532124181

Spring, Compression
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

42

Husqvarna 532124484

Decal, Fender

$

$

Not available

43

Husqvarna 532124186

Seat
(Superseded to 532401043)

$

$

Not available

44

Husqvarna 872170410

Bolt, Carriage 1/4 - 20 x 11/4

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124974

Fender

$

$

Not available

46

Husqvarna 532101892

Decal, Clutch/Brake

$

$

Not available

47

Husqvarna 532005479

Plug, Button

$5.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532008022

Plug, Dash

$

$

Not available

49

Husqvarna 873510400

Nut, Hex Keps 1/4 - 20 UNC (A)
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

50

Husqvarna 874760612

Bolt, Hex 3/8 - 16 x 3/4

$4.99

$

In Stock, only 3 left!

0

51

Husqvarna 819131312

Washer, 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680600

Nut, Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 874760616

Bolt, Hex 3/8 - 16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 817490612

Screw, Hex Washer Hd. Thd.
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

Rolling 3/8 - 16 x 3/4 Type TT

$

$

Not available

58

Husqvarna 532121236

Spacer

$

$

Not available

59

Husqvarna 874760440

Bolt, 1/4 - 20 x 2 1/2

$2.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532123481

Bolt, Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 873680400

Nut, Crownlock 1/4 - 20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

65

Husqvarna 817490608

Screw, Hex Wsh. Thdrol. 3/8 - 16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532124294

Pan, Seat

$

$

Not available

69

Husqvarna 817490608

Screw, Hex Wsh. Thdrol. 3/8 x 16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 817431008

Screw, Hex Head Self Tapping, No.10 - 16 x 1/2 Type B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874760532

Bolt, Hex 5/16-18 x 2 Gr 2

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532105509

Bracket Assembly, Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874180512

Screw, Mach. 5/16-18 x 3/4

$

$

Not available

79

Husqvarna 532120822

Decal, Caution

$

$

Not available

81

Husqvarna 532121794

Cover, Access

$

$

Not available

82

Husqvarna 819171912

Washer, 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0

84

Husqvarna 872270606

Bolt, Carriage 3/8 - 16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532108256

Pad, Footrest

$

$

Not available

89

Husqvarna 532109808

Latch, Hood

$6.99

$

In Stock, Qty 13

0

93

Husqvarna 532105511

Strap Assembly, Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532105513

Bracket, Pivot, Seat
(Superseded to 532126656)

$

$

Not available

95

Husqvarna 532105529

Bolt, Shoulder 5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

96

Husqvarna 532105531

Nut, Push

$2.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532109199

Decal, V-Belt Drive, Schematic

$

$

Not available

101

Husqvarna 532124485

Decal, Side Panel

$

$

Not available

103

Husqvarna 819131614

Washer, 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

104

Husqvarna 532124934

Grommet

$

$

Not available

107

Husqvarna 532110436

Grommet, Split
(Superseded to 532009151)

$

$

Not available

109

Husqvarna 811050400

Lockwasher, 1/4 Int. Ext.
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

110

Husqvarna 873490400

Wing Nut, 1/4-20
(Superseded to 532146525)

$

$

Not available

112

Husqvarna 532001260

Spacer

$

$

Not available

113

Husqvarna 873220400

Nut, Hex 1/4 - 20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

114

Husqvarna 532121235

Spacer

$

$

Not available

115

Husqvarna 819111116

Washer, 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

116

Husqvarna 532005320

Clip, Insulated

$5.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532124996

Clip, Insulated
(Superseded to 532002751)

$

$

Not available

119

Husqvarna 532121251

Foam Strip

$

$

Not available

120

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

121

Husqvarna 532121249

Spacer Split, 0.28 x 0.88

$6.49

$

In Stock, only 2 left!

0

122

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

123

Husqvarna 532123976

Nut, Hex, Flanged 1/4-20 UNC
(Superseded to 873900400)

$4.99

$

In Stock, Qty 15

0

124

Husqvarna 874641008

Screw, Slotted Pan Head, #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

125

Husqvarna 873951000

Nut, Keps, #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

126

Husqvarna 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

127

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

128

Husqvarna 532123934

Scale, Height Indicator

$

$

Not available

129

Husqvarna 532124763

Pointer, Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532120529

Washer, Nylon .44 x .75 x .032

$2.99

$

Usually ships in 3-10 days

0

132

Husqvarna 532120992

Decal, Grill

$

$

Not available

133

Husqvarna 819131210

Washer, 13/32 x 3/4 x 10 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0
