YT 12333 (82039) - Snapper 33" Yard Tractor, 12.5hp Clutch, Brake & Transmission Control Parts Diagram

33" Yard Tractor, 12.5hp

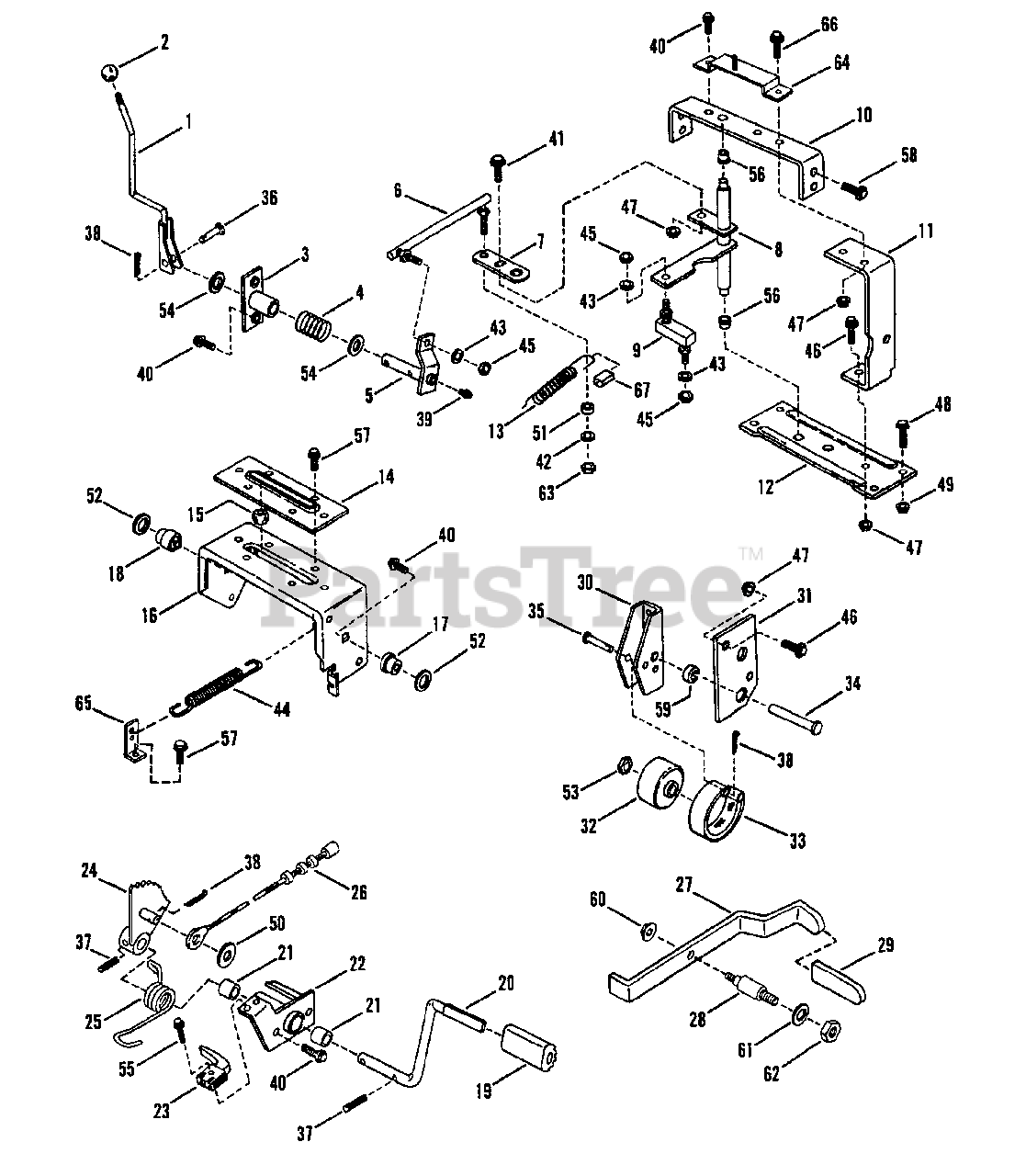

Clutch, Brake & Transmission Control Parts Diagram

  • Title

1

Snapper 7040494

SHIFTER, Transmission

$

$

Not available

2

Snapper 7014501

KNOB, Shifter
(Superseded to 7014501YP)

$17.99

$

In Stock, Qty 6

0

3

Snapper 7040486

PIVOT, Shift
(Superseded to 7040486YP)

$46.99

$

Usually ships in 2-12 days

0

4

Snapper 7014442

SPRING, Shift Detent
(Superseded to 7014442YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7051610

ARM, Shifter
(Superseded to 7051610YP)

Note: (Incl. Item 39)

$75.99

$

Usually ships in 2-12 days

0

6

Snapper 7014441

LINK, Shift-Long (8.53")(No longer available)

Note: Was 14441

$

$

Not available

7

Snapper 7032257

ARM, Shift Adjusting

$

$

Not available

8

Snapper 7047828

ARM, Shift
(Superseded to 7047828YP)

$107.99

$

Usually ships in 2-12 days

0

9

Snapper 7014337

LINK, Shift-Short
(Superseded to 7014337YP)

$

$

Not available

10

Snapper 7038046

STRAP, Upper Cross

$

$

Currently unavailable

11

Snapper 7038100

STRAP, Brake Pivot Support (No longer available)

Note: Was 38100

$

$

Currently unavailable

12

Snapper 7038084

STRAP, Lower Cross (No longer available)

Note: Was 38084

$

$

Currently unavailable

13

Snapper 7014528

SPRING, Reverse Assist
(Superseded to 7014528YP)

$28.99

$

In Stock, only 1 left!

0

14

Snapper 7032315

RETAINER (PLATE), Clutch Yoke Bushing

$

$

Not available

15

Snapper 7014396

BUSHING, Clutch Ball
(Superseded to 7014396YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7036077

YOKE, Clutch
(Superseded to 7036077YP)

$34.99

$

Usually ships in 2-12 days

0

17

Snapper 7014327

BUSHING, Yoke Pivot-Short
(Superseded to 7014327YP)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 7014328

BUSHING, Yoke Pivot-Long
(Superseded to 7014328YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7012661

PAD, Pedal
(Superseded to 7012661YP)

$

$

Not available

20

Snapper 7036086

PEDAL, Clutch Brake
(Superseded to 7036086YP)

$48.99

$

Usually ships in 2-12 days

0

21

Snapper 7014435

BEARING, Sleeve
(Superseded to 7014435YP)

$3.99

$

In Stock, only 2 left!

0

22

Snapper 7051483

BRACKET, Pedal Pivot
(Superseded to 7051483YP)

Note: (Includes two item 21)

$188.99

$

Usually ships in 2-12 days

0

23

Snapper 7018524

SWITCH, Clutch Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 9

0

24

Snapper 7040514

ARM, Clutch/Brake
(Superseded to 7040514YP)

$50.99

$

Usually ships in 2-12 days

0

25

Snapper 7014752

SPRING, Clutch/Brake
(Superseded to 7014752YP)

$9.49

$

Usually ships in 2-12 days

0

26

Snapper 7017432

CABLE, Clutch/Brake 36"
(Superseded to 7017432YP)

$23.99

$

Usually ships in 2-12 days

0

27

Snapper 7038142

LEVER, Parking Brake

$

$

Not available

28

Snapper 7014754

STUD, Parking Brake

$

$

Currently unavailable

29

Snapper 7014755

SLEEVE, Parking Brake
(Superseded to 7014755YP)

$

$

Not available

30

Snapper 7032324

LEVER, Brake Pivot

$

$

Not available

31

Snapper 7032335

SUPPORT, Brake Pivot

$

$

Not available

32

Snapper 7040542

DRUM, Brake

Note: Was 40493

$83.99

$

In Stock, only 1 left!

0

33

Snapper 7019093

BAND, Brake

Note: Was 57340

$

$

Not available

34

Snapper 7014539

PIN, 3/8 x 2-9/16" Clevis
(Superseded to 7014539YP)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7014538

PIN, 1/4 x 1-13/16" Clevis
(Superseded to 7014538YP)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper 7010121

PIN, 3/8 x 1-1/4" Clevis
(Superseded to 7010121YP)

$4.49

$

In Stock, Qty 5

0

37

Snapper 7013878

PIN, 3/16" x 1-1/4" Roll

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7013324

FITTING, Lube
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 6

0

40

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Flange Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

41

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

42

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

43

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7014659

SPRING
(Superseded to 7014659YP)

$15.99

$

Usually ships in 2-12 days

0

45

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

46

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock.
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

47

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

48

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

49

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

50

Snapper 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7011968

ROLLER, Shift Arm
(Superseded to 7011968YP)

$4.49

$

Usually ships in 2-12 days

0

52

Snapper 7010935

WASHER, Shim
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

53

Snapper 7090356

JAM-NUT, 5/8-18
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

54

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

55

Snapper 7090849

SCREW, #10-24 x 1" Self-Tap

$

$

Not available

56

Snapper 7011016

BEARING, Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, only 2 left!

0

57

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Flange Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 1 left!

0

58

Snapper 7090815

SCREW, 3/8-16 Hex Flange Self-Tap
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

59

Snapper 7011780

RING
(Superseded to 7011780YP)

$3.49

$

Usually ships in 2-12 days

0

60

Snapper 7091545

NUT, 1/4-20 Small Flange Lock
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, Qty 6

0

61

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

62

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

63

Snapper 7090222

NUT, 5/16-24 hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

64

Snapper 7051909

ASSEMBLY, Bracket

$

$

Not available

65

Snapper 7032446

CLIP, Spring Attach

$

$

Not available

66

Snapper 7090661

BOLT, 5/16-18 x 1" Hex Flange Lock

$

$

Not available

67

Snapper 7015291

CLIP, Spring Retainer
(Superseded to 7015291YP)

$

$

Not available
