YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Power And Mechanical Controls Group Parts Diagram

Yard Tractor

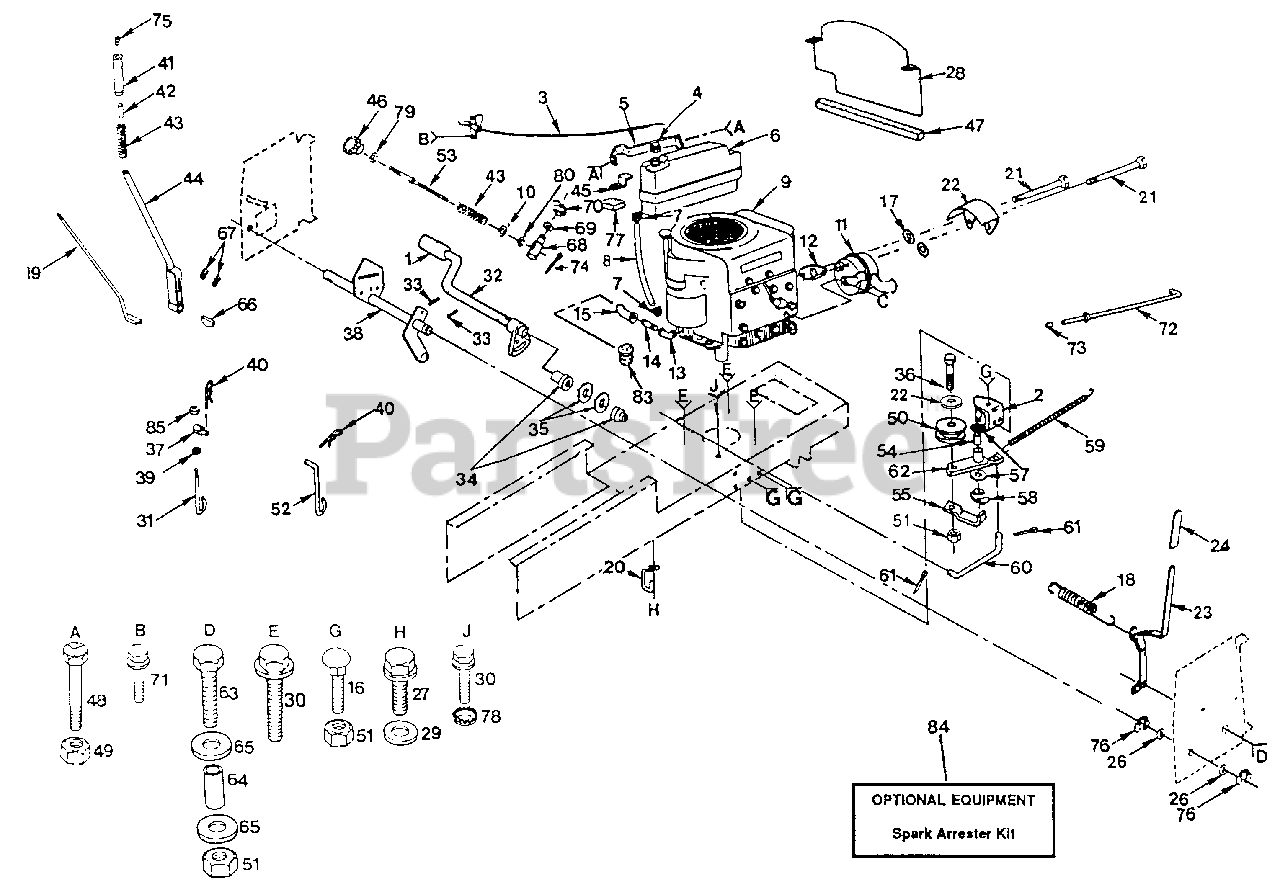

Power And Mechanical Controls Group Parts Diagram

  • Title

1

Husqvarna 532124872

Pedal Cover
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

2

Husqvarna 532123102

Bracket Assembly, Clutch

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532121275

Control, Throttle

$

$

Not available

4

Husqvarna 532124912

Fuel Cap
(Superseded to 532008504)

$

$

Not available

5

Husqvarna 532121281

Support, Tank, Fuel

$

$

Not available

6

Husqvarna 532121280

Tank, Fuel

$

$

Not available

7

Husqvarna 532123487

Hose Clamp

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 863083730

Fuel Line
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532124136

Engine Briggs & Stratton, Type No. 0412-01

$

$

Not available

10

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

11

Husqvarna 532121304

Muffler

$

$

Not available

12

Husqvarna 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 813310300

450 Street Elbow 3/8 NPT

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 813280328

Std. Pipe Nipple 3/8-18 NPT x 3 1/2

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 813200300

900 Elbow 3/8 NPT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/4

$

$

Not available

17

Husqvarna 819151616

Washer Lock 15/32 x 11/16 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

18

Husqvarna 532102727

Spring, Extension

$

$

Not available

19

Husqvarna 532121719

Rod Assembly, Lever

$

$

Not available

20

Husqvarna 532121218

Retainer, Belt, Chassis L.H.

$

$

Not available

21

Husqvarna 532121744

Bolt 5/16-18 x 5/8

$

$

Not available

22

Husqvarna 532121742

Shield, Heat, Muffler

$

$

Not available

23

Husqvarna 532106983

Handle, Clutch Attachment

$

$

Not available

24

Husqvarna 532124917

Grip, Handle

$

$

Not available

25

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 817490612

Screw, Hex Washer Thrd. Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 532126423

Baffle, Vertical

$

$

Not available

29

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 817490620

Screw, Hex Washer Hd. Thread Rolling 3/8-16 x 1-1/4 Type TT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532110448

Link, Lift, Adjustable

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532122424

Shaft, Pedal, Foot

$

$

Not available

33

Husqvarna 532001572

Roll Pin 3/16 x 1

$4.99

$

In Stock, Qty 7

0

34

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 3 left!

0

35

Husqvarna 819211616

Washer, 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 874760644

Bolt, Fin Hex 3/8-16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

38

Husqvarna 532120174

Shaft, Assembly Lift

$

$

Not available

39

Husqvarna 873360700

Nut, Hex Jam 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

40

Husqvarna 532124670

Retainer Spring

$

$

Not available

41

Husqvarna 532109413

Grip, Handle

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532122364

Plunger, Lever, Hand
(Superseded to 532125925)

$

$

Not available

43

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532121718

Lever Assembly, Hand Kit

Note: (Inc. Key No. 19)

$

$

Not available

45

Husqvarna 532104799

Brace, Tank

$

$

Not available

46

Husqvarna 532121891

Handle, Adjust Lift

$

$

Not available

47

Husqvarna 532104915

Strip, Foam 14.5"
(Superseded to 532105037)

$

$

Not available

48

Husqvarna 874780512

Bolt, Hex 5/16-18 x 3/4 Gr. 5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 873680500

Locknut 5/16-18 Gr. B
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532123766

Pulley, Idler
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532110029

Link, Lift

$

$

Not available

53

Husqvarna 532110729

Rod, Adjust, Lift

$

$

Not available

54

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532110812

Washer, Hardened

$

$

Not available

58

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

59

Husqvarna 532105709

Spring, Return Clutch

$11.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

61

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

62

Husqvarna 532123789

Arm, Asm. Idler

$

$

Not available

63

Husqvarna 874760624

Bolt Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532108056

Bushing, Handle, Clutch

$

$

Not available

65

Husqvarna 819121612

Washer 3/8 x 1 x 12 Ga.

$

$

Not available

66

Husqvarna 532124997

Woodruff Key 1/4 x 1

$

$

Not available

67

Husqvarna 823180606

Set Screw, Hex Socket Forged Headless 3/8-16 x 3/8

$

$

Not available

68

Husqvarna 532110810

Trunnion, Stop, Depth

$

$

Not available

69

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

70

Husqvarna 812000037

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 817720410

Screw Hex Thread Cutting 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

72

Husqvarna 532125637

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

73

Husqvarna 532071673

Plunger Cap

$5.99

$

Usually ships in 3-10 days

0

74

Husqvarna 876020308

Cotter Pin 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

75

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

76

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532006431

Pad, Spacer

$

$

Not available

78

Husqvarna 811050600

Washer, Lock 3/8-Ext. Tooth
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

79

Husqvarna 873350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

80

Husqvarna 532110807

Nut, Special

$

$

Not available

83

Husqvarna 813290300

Oil Drain Plug

$

$

Not available

84

Husqvarna 532121851

Spark Arrester Kit

$

$

Not available

85

Husqvarna 873710700

Nut, Jam Crownlock 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0
