YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Engine B&S Model 281707, Type 0412-01 (Part 2) Parts Diagram

Yard Tractor

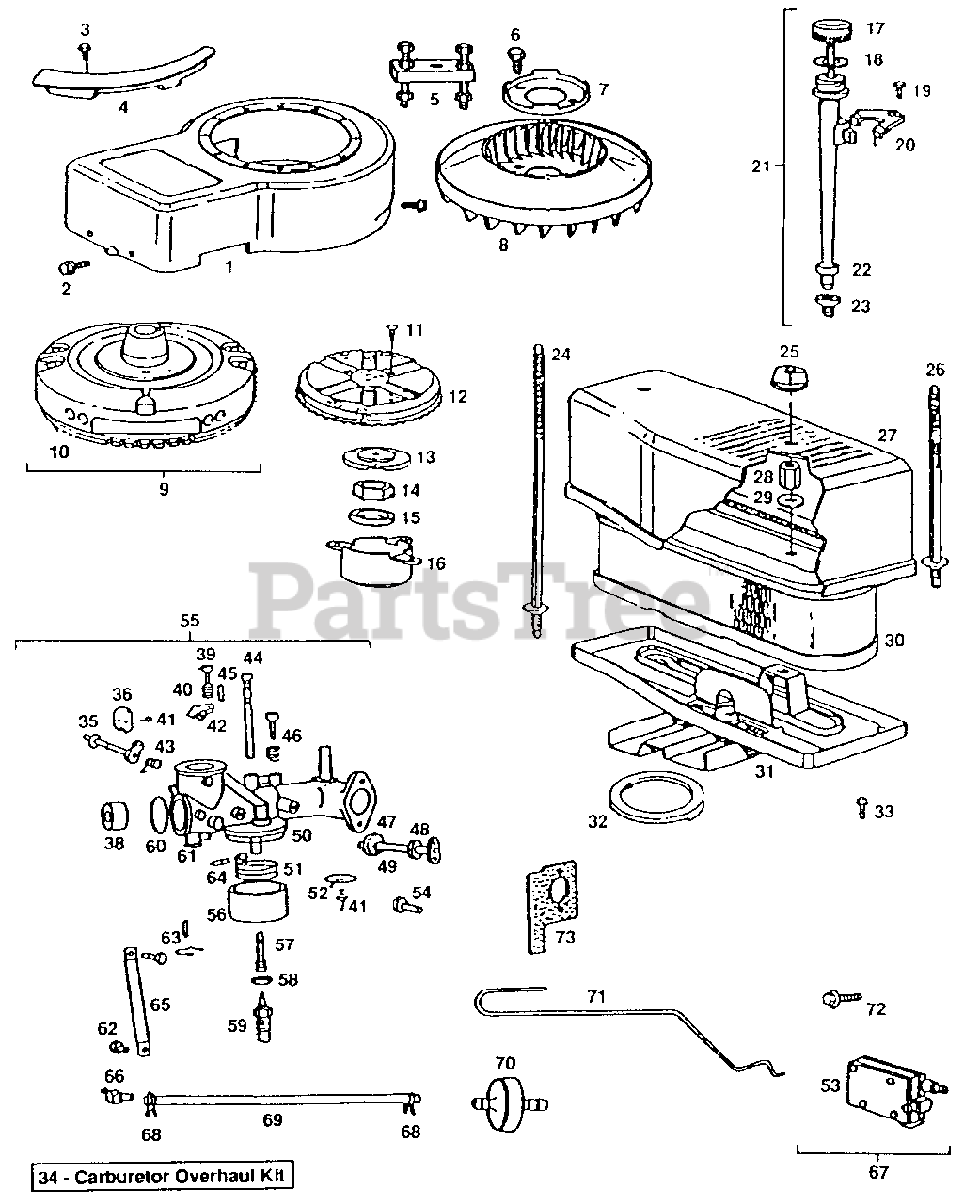

Engine B&S Model 281707, Type 0412-01 (Part 2) Parts Diagram

  • Title

1

Husqvarna 490689

Housing, Blower

$

$

Not available

2

Husqvarna 93158

Screw, Blower Housing Mounting Sem

$

$

Not available

3

Husqvarna 93705

Screw, Hex Hd.

$

$

Not available

4

Husqvarna 223752

Guard. Flywheel

$

$

Not available

5

Husqvarna 19203

Puller, Flywheel

$

$

Not available

6

Husqvarna 93535

Screw, Sem 3/4" Long

$

$

Not available

7

Husqvarna 223726

Retainer, Fan

$

$

Not available

8

Husqvarna 280687

Fan, Flywheel

$

$

Not available

9

Husqvarna 492326

Flywheel and Ring Gear Assy Magneto

$

$

Not available

10

Husqvarna 392134

Gear. Ring

Note: (Includes Mounting Parts)

$

$

Not available

11

Husqvarna 93805

Screw, Sem

$

$

Not available

12

Husqvarna 222562

Screen, Flush Rotating

$

$

Not available

13

Husqvarna 280848

Spacer

$

$

Not available

14

Husqvarna 92284

Nut. Hex

$

$

Not available

15

Husqvarna 220865

Washer, Spring

$

$

Not available

16

Husqvarna 222561

Cup, Screen Mounting

$

$

Not available

17

Husqvarna 490327

Cap and Dipstick, Oil Filter

$

$

Not available

18

Husqvarna 270920

Seal, Oil Filler Cap

$

$

Not available

19

Husqvarna 93572

Screw, Clamp Mounting

$

$

Not available

20

Husqvarna 223721

Clamp, Oil Filler Tube

$

$

Not available

21

Husqvarna 490474

Fill Group, Oil

$

$

Not available

22

Husqvarna 280741

Tube. Oil Filler

$

$

Not available

23

Husqvarna 68838

Seal, Filler Tube

$

$

Not available

24

Husqvarna 94248

Stud, Air Cleaner

$

$

Not available

25

Husqvarna 212706

Knob. Air Cleaner

$

$

Not available

26

Husqvarna 94246

Stud. Air Cleaner

$

$

Not available

27

Husqvarna 223700

Cover. Air Cleaner

$

$

Not available

28

Husqvarna 231532

Nut, Air Cleaner Mtg.

$

$

Not available

29

Husqvarna 94249

Washer, Air Cleaner

$

$

Not available

30

Husqvarna 491519

Cartridge, Air Cleaner

$

$

Not available

31

Husqvarna 490332

Body, Air Cleaner

$

$

Not available

32

Husqvarna 270853

Gasket, Air Cleaner

$

$

Not available

33

Husqvarna 94018

Screw, Air Cleaner Sem

$

$

Not available

34

Husqvarna 394698

Carburetor Overhaul Lit

$

$

Not available

35

Husqvarna 270382

Washer, Choke Shaft

$

$

Not available

36

Husqvarna 222010

Valve, Choke

$

$

Not available

37

Husqvarna 390684

Shaft and Lever, Choke

$

$

Not available

38

Husqvarna 211960

Venture, Carburetor

$

$

Not available

39

Husqvarna 91920

Screw, Machine Fit Hd. 8-32 x 5/8"

$

$

Not available

40

Husqvarna 26157

Spring, Throttle Adjustment

$

$

Not available

41

Husqvarna 93499

Screw, Throttle and Choke Valve Mtg Sem

$

$

Not available

42

Husqvarna 211712

Stop, Throttle

$

$

Not available

43

Husqvarna 261116

Spring, Choke Return

$

$

Not available

44

Husqvarna 299740

Nozzle, Carburetor

$

$

Not available

45

Husqvarna 93043

Pin, Throttle Stop

$

$

Not available

46

Husqvarna 292681

Valve Assembly, Carburetor Idle

$

$

Not available

47

Husqvarna 271853

Washer, Throttle Shaft Seal (Foam)

$

$

Not available

48

Husqvarna 398970

Seal, Throttle Shaft

$

$

Not available

49

Husqvarna 491006

Shaft and Lever, Throttle

$

$

Not available

50

Husqvarna 270511

Gasket, Flat Bowl

$

$

Not available

51

Husqvarna 299707

Float, Carburetor

$

$

Not available

52

Husqvarna 222433

Valve, Throttle

$

$

Not available

53

Husqvarna 390818

Pump, Impulse

$

$

Not available

54

Husqvarna 93357

Screw, Carburetor

$

$

Not available

55

Husqvarna 491031

Carburetor Assembly

$

$

Not available

56

Husqvarna 221995

Bowl, Float

$

$

Not available

57

Husqvarna 231323

Screw, Nozzle

$

$

Not available

58

Husqvarna 222014

Washer, Float Bowl

$

$

Not available

59

Husqvarna 396568

Valve, Needle

$

$

Not available

60

Husqvarna 221997

Plug. Welch

$

$

Not available

61

Husqvarna 490473

Body Assembly, Carburetor

$

$

Not available

62

Husqvarna 93572

Screw, Carburetor

$

$

Not available

63

Husqvarna 394682

Valve, Fuel Inlet

$

$

Not available

64

Husqvarna 230896

Pin, Float Hinge

$

$

Not available

65

Husqvarna 222311

Bracket, Carburetor

$

$

Not available

66

Husqvarna 67218

Connector, Fuel Pipe

$

$

Not available

67

Husqvarna 394462

Repair Kit, Pump

$

$

Not available

68

Husqvarna 93053

Clamp, Fuel Pipe

$

$

Not available

69

Husqvarna 393815

Fuel Line (11" Long)

$

$

Not available

70

Husqvarna 289090

Filter, Fuel (In Fuel Line)

$

$

Not available

71

Husqvarna 261610

Link, Choke

$

$

Not available

72

Husqvarna 93621

Screw, Sem

$

$

Not available

73

Husqvarna 270872

Gasket, Carburetor Mounting

$

$

Not available
