YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Enclosures (Part 1) Parts Diagram

Yard Tractor

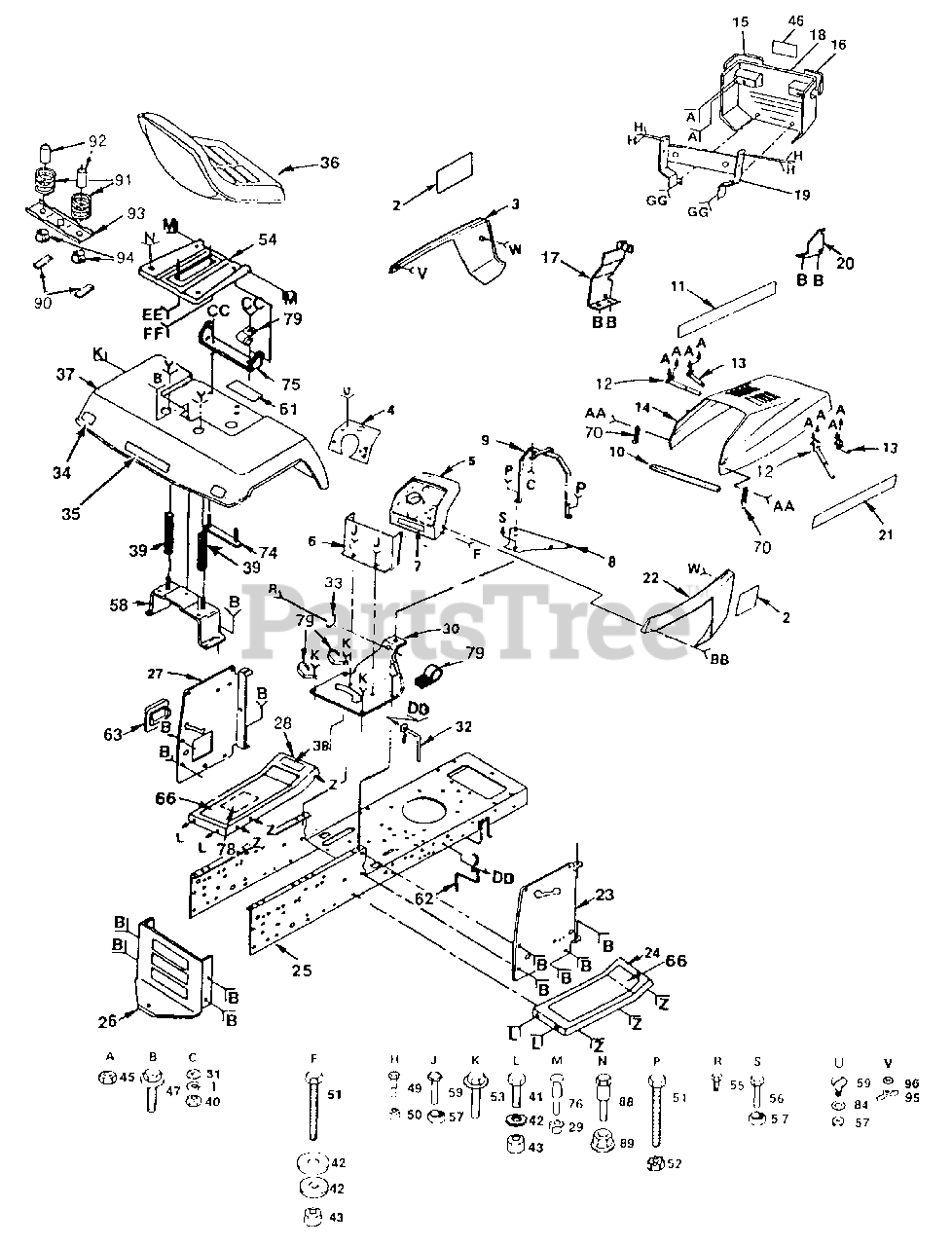

Enclosures (Part 1) Parts Diagram

  • Title
1

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 532124482

Decal, Side Panel

$

$

Not available

3

Husqvarna 532124905

Panel, Side L.H.

$

$

Not available

4

Husqvarna 532124990

Plate, Dashboard

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104783

Dash, Lower

$

$

Not available

7

Husqvarna 532109821

Decal, Instruction

$

$

Not available

8

Husqvarna 532106965

Plate, Support, Battery

$

$

Not available

9

Husqvarna 532104786

Support Assembly, Dash

$

$

Not available

10

Husqvarna 532105037

Foam, Strip

$

$

Not available

11

Husqvarna 532124480

Decal, Hood L.H.

$

$

Not available

12

Husqvarna 532106784

Strap Assembly, Hinge, Rear

$

$

Not available

13

Husqvarna 532104618

Strap Assembly, Hinge, Front

$

$

Not available

14

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

15

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

16

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

17

Husqvarna 532121610

Bracket Assembly Frame Pivot L.H.

$

$

Not available

18

Husqvarna 532126689

Grill Assembly
(Superseded to 532157236)

$

$

Not available

19

Husqvarna 532126025

Support, Asm. Grill

$

$

Not available

20

Husqvarna 532110852

Bracket Assembly Frame Pivot R.H.

$

$

Not available

21

Husqvarna 532124481

Decal, Hood, R.H.

$

$

Not available

22

Husqvarna 532125063

Panel, Side, R.H.

$

$

Not available

23

Husqvarna 532106976

Panel, Dash, R.H.

$

$

Not available

24

Husqvarna 532125036

Footrest, R .H.

$

$

Not available

25

$

$

Not available

26

Husqvarna 532121306

Drawbar
(Superseded to 532145009)

$

$

Not available

27

Husqvarna 532109665

Panel-Dash, L.H.

$

$

Not available

28

Husqvarna 532124722

Footrest-L.H.
(Superseded to 532147203)

$

$

Not available

29

Husqvarna 873680500

Nut-Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

31

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

32

Husqvarna 532121440

Guide-Bell, Lower, Engine Pulley, L.H.

$

$

Not available

33

Husqvarna 532124720

Bushing-Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 3 left!

0

34

Husqvarna 532106202

Reflector-Taillight

$

$

Not available

35

Husqvarna 532124484

Decal-Fender

$

$

Not available

36

Husqvarna 532124185

Seat
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0

$

$

Not available

38

Husqvarna 532101892

Decal-Clutch/Brake

$

$

Not available

39

Husqvarna 532124181

Spring, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

40

Husqvarna 873220400

Nut-Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 874760612

Bolt-Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 873680600

Nut-Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

46

Husqvarna 532124483

Decal, Grill, Husky

$

$

Not available

47

Husqvarna 817490612

Screw-Hex Washer Hd. Thrd. Rolling 3/8-16 3/4 Type TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

49

Husqvarna 532123481

Bolt-Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 873680400

Nut-Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

51

Husqvarna 874760620

Bolt-Hex 3/8-16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873510600

Nut-Keps 3/8-16

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817490608

Screw-Hex Washer Hd. Thrd. Forming 3/8-16 x 1/2 Type TT

$6.49

$

Usually ships in 3-10 days

0

54

$

$

Not available

55

Husqvarna 817431008

Screw-Hex Head Self Tapping No. 10-16 x 1/2 Type B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 874780512

Bolt-Hex 5/16-18 x 3/4 Gr. 5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 873510500

Nut-Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532105509

Bracket Assembly - Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

59

Husqvarna 874180512

Screw-Truss Hd. 5/16-18 x 3/4

$

$

Not available

61

Husqvarna 532120822

Decal-Caution

$

$

Not available

62

Husqvarna 532121441

Guide-Belt, Lower, Engine, Pulley, R.H.
(Superseded to 532131402)

$

$

Not available

63

Husqvarna 532121794

Cover-Access

$

$

Not available

66

Husqvarna 532108256

Pad-Footrest

$

$

Not available

70

Husqvarna 532109808

Latch-Hood

$6.99

$

In Stock, Qty 20+

0

74

Husqvarna 532105511

Strap Assembly-Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532126656

Bracket - Pivot, Seat

$

$

Not available

76

Husqvarna 532105529

Bolt - Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

78

Husqvarna 532109199

Decal, Ground Drive.

$

$

Not available

79

Husqvarna 532124996

Clip- Fuel Line
(Superseded to 532002751)

$

$

Not available

84

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

88

Husqvarna 872170410

Bolt Carriage 1/4 - 20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532123976

Nut - Hex Flange 1 /4 - 20
(Superseded to 873900400)

$4.99

$

In Stock, Qty 18

0

90

Husqvarna 532121251

Foam Strip

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 2 left!

0

93

Husqvarna 532121246

Bracket - Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532121248

Snap Bushing

$6.49

$

Usually ships in 3-10 days

0

95

Husqvarna 873490400

Wing Nut 1/4 - 20
(Superseded to 532146525)

$

$

Not available

96

Husqvarna 811030400

Washer, Lock 1/4 Ext/Int Tooth
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0
