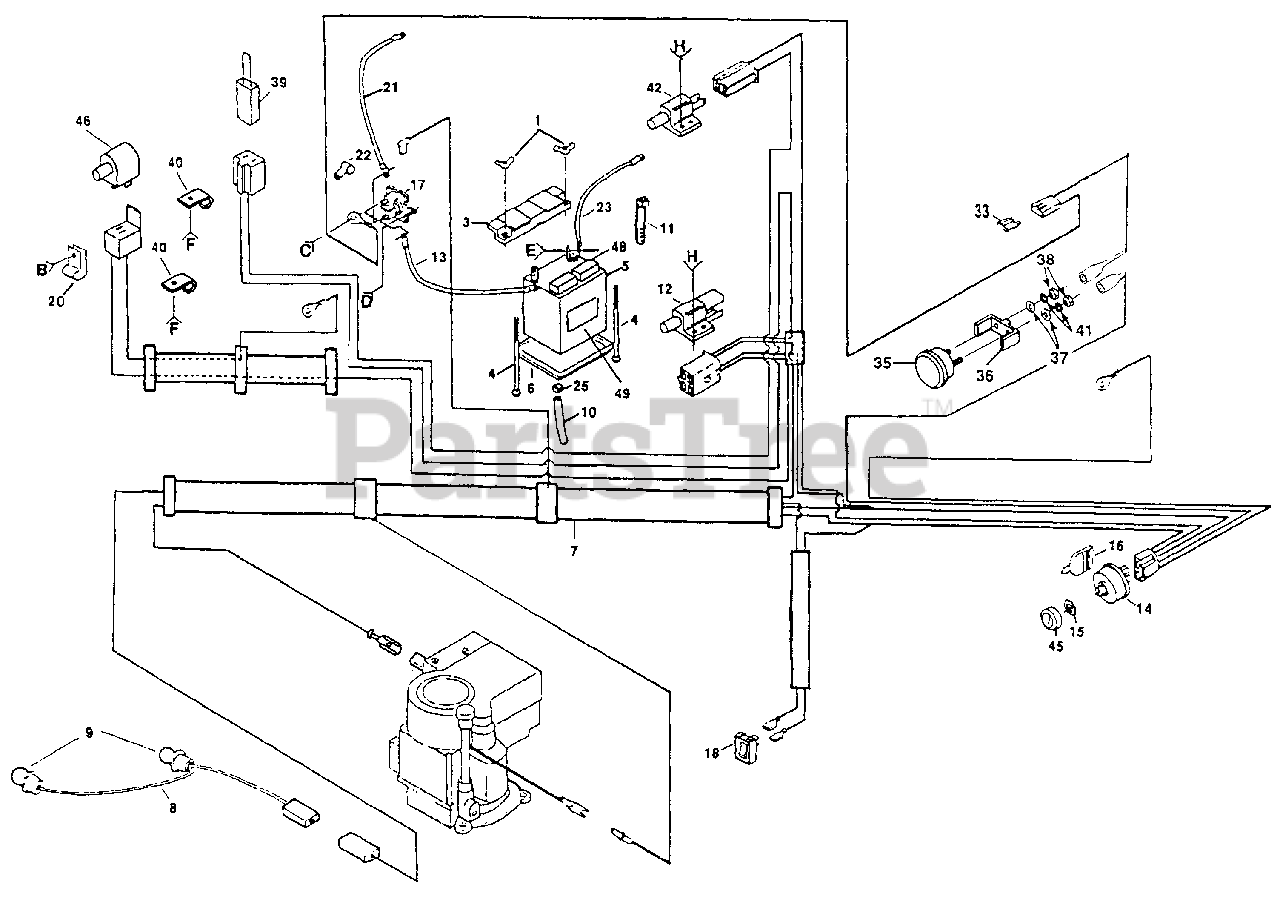

YT 120 (954000061) - Husqvarna Yard Tractor (1990-01) Electrical (Part 1) Parts Diagram

Yard Tractor

Electrical (Part 1) Parts Diagram

  • Title

1

Husqvarna 532123198

Wing Nut 1/4-20
(Superseded to 532146525)

$

$

Not available

3

Husqvarna 532102476

Terminal Guard
(Superseded to 532150109)

$

$

Not available

4

Husqvarna 872240460

Carriage Bolt 1/4-20 x 7-1/2

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532121265

Battery 12V.
(Superseded to 532123899)

Note: (Shipped Dry, Purchase Battery Acid Locally)

$194.99

$

In Stock, only 2 left!

0

6

Husqvarna 532124886

Battery Tray
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532125913

Ignition Harness

$

$

Not available

8

Husqvarna 532110859

Harness, Light Socket

$

$

Not available

9

Husqvarna 532124843

Light Bulb

$

$

Not available

10

Husqvarna 532007604

Tube, Battery Tray
(Superseded to 532007697)

$

$

Not available

11

Husqvarna 532124756

Cable Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532109553

Switch, Interlock, Attachment Clutch
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532125099

Cable, Battery (Battery to Solenoid)
(Superseded to 583750601)

$

$

Not available

14

Husqvarna 532125104

Switch, Ignition
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

15

Husqvarna 532109788

Nut, Ignition
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 532122147

Key

$

$

Not available

17

Husqvarna 532109081

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

18

Husqvarna 532110712

Switch, Light

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 532004171

Clip Wire
(Superseded to 532124967)

$

$

Not available

21

Husqvarna 532124780

Cable, Battery (Solenoid to Starter)
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532124783

Terminal Cover (For Solenoid)
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

23

Husqvarna 532124773

Cable, Battery (Battery to Ground)
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532108824

Fuse, 30 AMP

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532124900

Ammeter

$45.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532124901

Bracket, Ammeter
(Superseded to 532131708)

$

$

Not available

37

Husqvarna 819070818

Washer, 7/32 x 1/2 x 18 Ga.

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873911000

Nut

$0.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532102501

Loop, Wire

$

$

Not available

40

Husqvarna 532124995

Clip, Insulated

$

$

Not available

41

Husqvarna 811050600

Washer, Lock Ext. 3/4
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

42

Husqvarna 532104445

Switch, Interlock, Clutch Pedal

$17.99

$

In Stock, only 1 left!

0

45

Husqvarna 532109787

Bezel, Ignition
(Superseded to 584446901)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

48

Husqvarna 532121264

Battery Caps Set

$

$

Not available

49

Husqvarna 532121549

Decal, Battery Caution

$

$

Not available

Husqvarna 532124472

Manual, Operator's-(English)

$

$

Not available

Husqvarna 532124473

Manual, Owners-(French)

$

$

Currently unavailable

Husqvarna 532101539

Sheet, Inst. Tractor 15° Slope (English)

$

$

Not available

Husqvarna 532101572

Sheet, Inst. Tractor 15 Slope (French)

$

$

Not available

Husqvarna 532126890

Manual, Parts (English)

$

$

Not available
