YT 12 (UT-33009) - Homelite Yard Tractor Lift, Brake And Clutch Linkage Parts Diagram

Yard Tractor

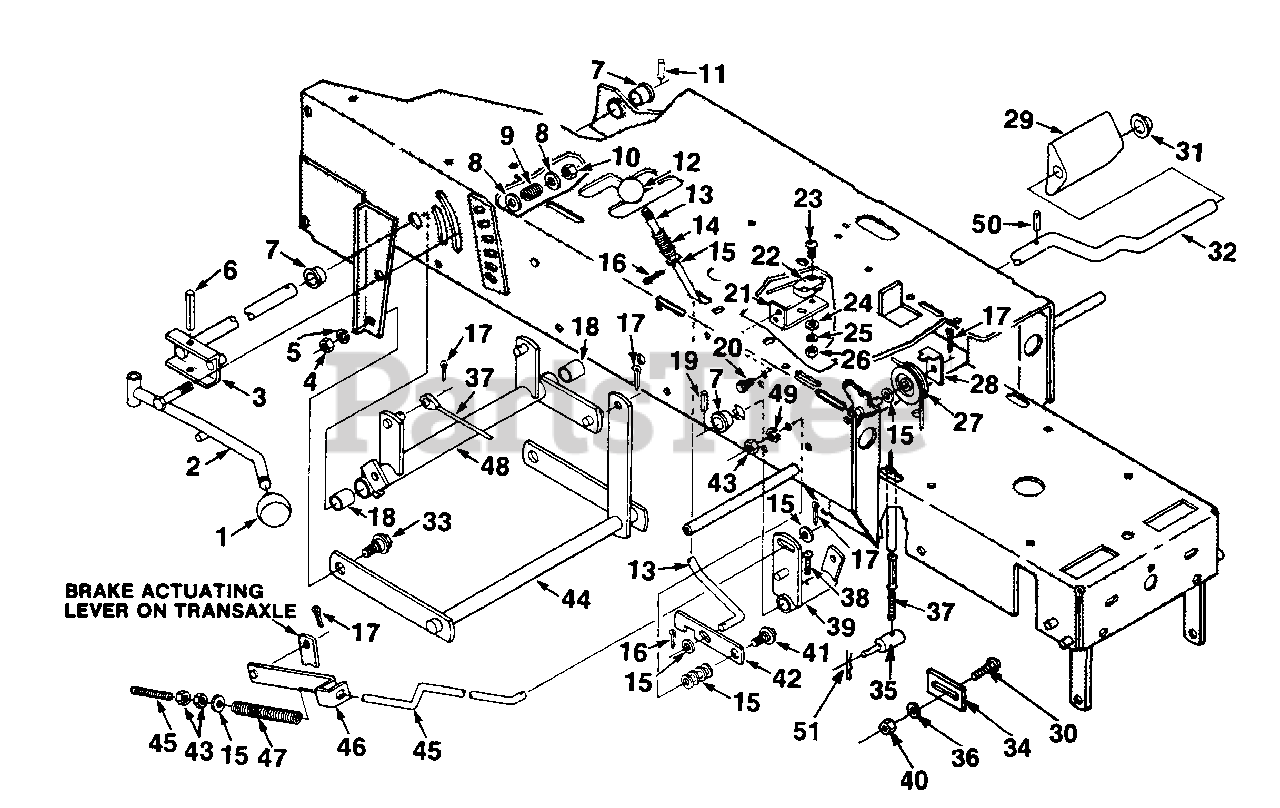

Lift, Brake And Clutch Linkage Parts Diagram

  • Title

1

Homelite JA343497

KNOB- implement lift handle

$

$

Currently unavailable

2

Homelite JA142186

HANDLE- Lift

$

$

Currently unavailable

3

Homelite JA181962

LIFT HANDLE BRACKET & ROD

$

$

Currently unavailable

4

Homelite JA443111

NUT- 3/8-16 hex

$

$

Currently unavailable

5

Homelite JA446142

WASHER- Lock 3/8 hvy.

$

$

Not available

6

Homelite JA461347

PIN- Groove 5/16 x 2 1/4

$

$

Currently unavailable

7

Homelite JA351587

BUSHING- Flanged

$

$

Not available

8

Homelite JA452006

WASHER- Flat 3/8

$

$

Currently unavailable

9

Homelite JA376092

SPRING- Compression

$

$

Currently unavailable

10

Homelite JA444718

NUT- 5/16-18 hex centerlock

$

$

Not available

11

Homelite JA461383

PIN- 3/16 x 1

$

$

Not available

12

Homelite JA315209

KNOB- Parking brake

$31.99

$

Usually ships in 3-7 days

0

13

Homelite JA376086

ROD- Crack lock

$

$

Currently unavailable

14

Homelite JA315344

SPRING- Compression

$7.49

$

Usually ships in 3-7 days

0

15

Homelite JA453009

WASHER- Flat 11/13
(Superseded to UP07173)

$

$

Not available

16

Homelite JA460026

PIN- Cotter 1/8 x 3/4

$2.99

$

Usually ships in 3-7 days

0

17

Homelite JA460014

PIN- Cotter

$

$

Not available

18

Homelite JA309902

BUSHING- Pivot

$

$

Currently unavailable

19

Homelite JA461383

PIN- 3/16 x 1

$

$

Not available

20

Homelite JA375978

BOLT- 1/4-14

$

$

Not available

21

Homelite JA376061

BRACKET- Safety switch

$7.49

$

Usually ships in 3-7 days

0

22

Homelite JA991560

SWITCH- Safety

Note: (traction clutch)

$

$

Currently unavailable

23

Homelite JA402776

SCREW #4-40 x 1.00 slotted truss hd

$

$

Currently unavailable

24

Homelite JA840110

WASHER- flat

$

$

Currently unavailable

25

Homelite JA446102

WASHER- Lock #4 Reg

$

$

Currently unavailable

26

Homelite JA444302

NUT- #4-40 hex

$

$

Currently unavailable

27

Homelite JA376073

PULLEY- Lift cable

$

$

Currently unavailable

28

Homelite JA376015

RETAINER- Lift cable

$

$

Currently unavailable

29

Homelite JA344895

PEDAL- Clutch

$

$

Currently unavailable

30

Homelite JA444624

BOLT

$

$

Currently unavailable

31

Homelite JA375810

NUT- 5/8 push on

$

$

Not available

32

Homelite JA339618

ROD- Clutch

$

$

Currently unavailable

33

Homelite JA376094

BOLT- Shoulder

$

$

Not available

34

Homelite JA992767

STUD

$

$

Currently unavailable

35

Homelite JA992371

CLEVIS

$

$

Currently unavailable

36

Homelite JA446140

WASHER
(Superseded to UP07435)

$

$

Not available

37

Homelite JA330026

CABLE- Deck lift

$

$

Currently unavailable

38

Homelite JA434027

SCREW

$

$

Currently unavailable

39

Homelite JA142200

CLUTCH ROD ACTUATOR ASSY.

$

$

Currently unavailable

40

Homelite JA443110

NUT

$

$

Not available

41

Homelite JA375431

BOLT- Idler pivot

$

$

Not available

42

Homelite JA992567

LATCH- Parking brake

$

$

Currently unavailable

43

Homelite JA443106

NUT- 5/16-18 hex
(Superseded to 81018)

$

$

Not available

44

Homelite JA142185

REAR LIFT BAR ASSY.

$

$

Currently unavailable

45

Homelite JA376099

ROD-Brake

$

$

Not available

46

Homelite JA181969

BRAKE SPRING BRACKET ASSY.

$

$

Currently unavailable

47

Homelite JA376102

SPRING- Brake compression

$

$

Not available

48

Homelite JA181965

REAR LIFT & BUSHING ASSY.

$

$

Currently unavailable

49

Homelite JA446136

WASHER- Lock 5/16 hvy
(Superseded to UP03791)

$

$

Not available

50

Homelite JA461363

PIN- Roll

$

$

Currently unavailable

51

Homelite JA460306

PIN- Hair

$

$

Not available
