YPQ GT 25H50 A - Electrolux/AYP Lawn Tractor (1999) ENGINE Parts Diagram

Lawn Tractor

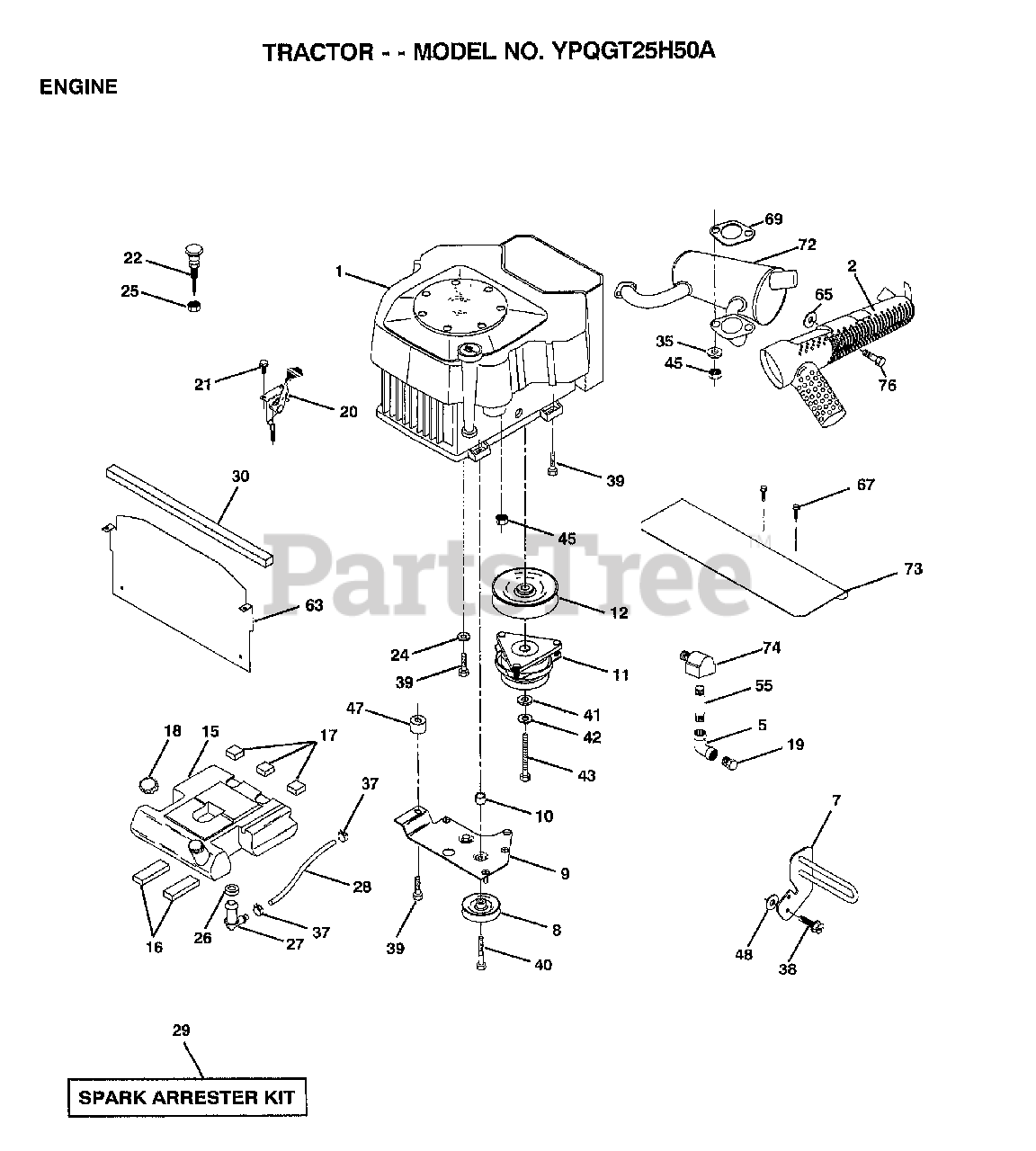

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

2

Electrolux/AYP 150249

MUFFLER VGT
(Superseded to 532150249)

$

$

Not available

5

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 151396

GUARD.MUFFLER.ASM
(Superseded to 532151396)

$

$

Not available

8

Electrolux/AYP 121361X

SUB= 139123
(Superseded to 532121361)

$

$

Not available

9

Electrolux/AYP 150828

KEEPER ASM BELT
(Superseded to 532177748)

$

$

Not available

10

Electrolux/AYP 105432X

BUSHING.
(Superseded to 532105432)

$

$

Not available

11

Electrolux/AYP 140923

SUB= 150283
(Superseded to 532140923)

$546.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 143996

PULLEY.ENG.CLUTCH
(Superseded to 532143996)

$53.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 151346

TANK FUEL REAR
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

18

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 13290300

PLUG T
(Superseded to 813290300)

$

$

Not available

20

Electrolux/AYP 142168

CONTROL THTL 37
(Superseded to 532162150)

$

$

Not available

21

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

22

Electrolux/AYP 145996

CONTROL.CHOKE.37
(Superseded to 532145996)

$

$

Not available

24

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73920600

"NUT,KEPS 3/8-24IM"
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

28

$

$

Not available

29

Electrolux/AYP 132920

SPARK ARREST KIT
(Superseded to 532132920)

$

$

Not available

30

Electrolux/AYP 161547

EXTRUSION HOOD
(Superseded to 532161547)

$2.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 10010500

WASHER.SPLIT
(Superseded to 810010500)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

38

Electrolux/AYP 17060620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

39

Electrolux/AYP 17490636

SCREW.3/8-16X2.25
(Superseded to 817490636)

$2.49

$

In Stock, Qty 6

0

40

Electrolux/AYP 17490664

SCREW.TT.3/8-16X4
(Superseded to 817490664)

$

$

Not available

41

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

$

$

Not available

45

Electrolux/AYP M73030800

NUT FLANGE M8-125
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

47

Electrolux/AYP 142040

SPACER.ENGINE
(Superseded to 532142040)

$

$

Not available

48

Electrolux/AYP 19132007

WASHER T
(Superseded to 819132007)

$3.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

63

Electrolux/AYP 145549

HEAT.SHIELD.VGT.
(Superseded to 532145549)

$

$

Not available

64

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

65

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 17060512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 24-041-02

GASKET
(Superseded to 532186054)

$

$

Not available

72

Electrolux/AYP 150250

"MUFFLER,PRE CV25"

$

$

Not available

73

Electrolux/AYP 153992

SHIELD.MUF.KOHLER

$

$

Not available

74

Electrolux/AYP 162295

ELBOW STREET BASS
(Superseded to 532162295)

$34.99

$

In Stock, only 1 left!

0

76

Electrolux/AYP 17060612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0
