YPQ GT 25H50 A - Electrolux/AYP Lawn Tractor (1999) ELECTRICAL Parts Diagram

Lawn Tractor

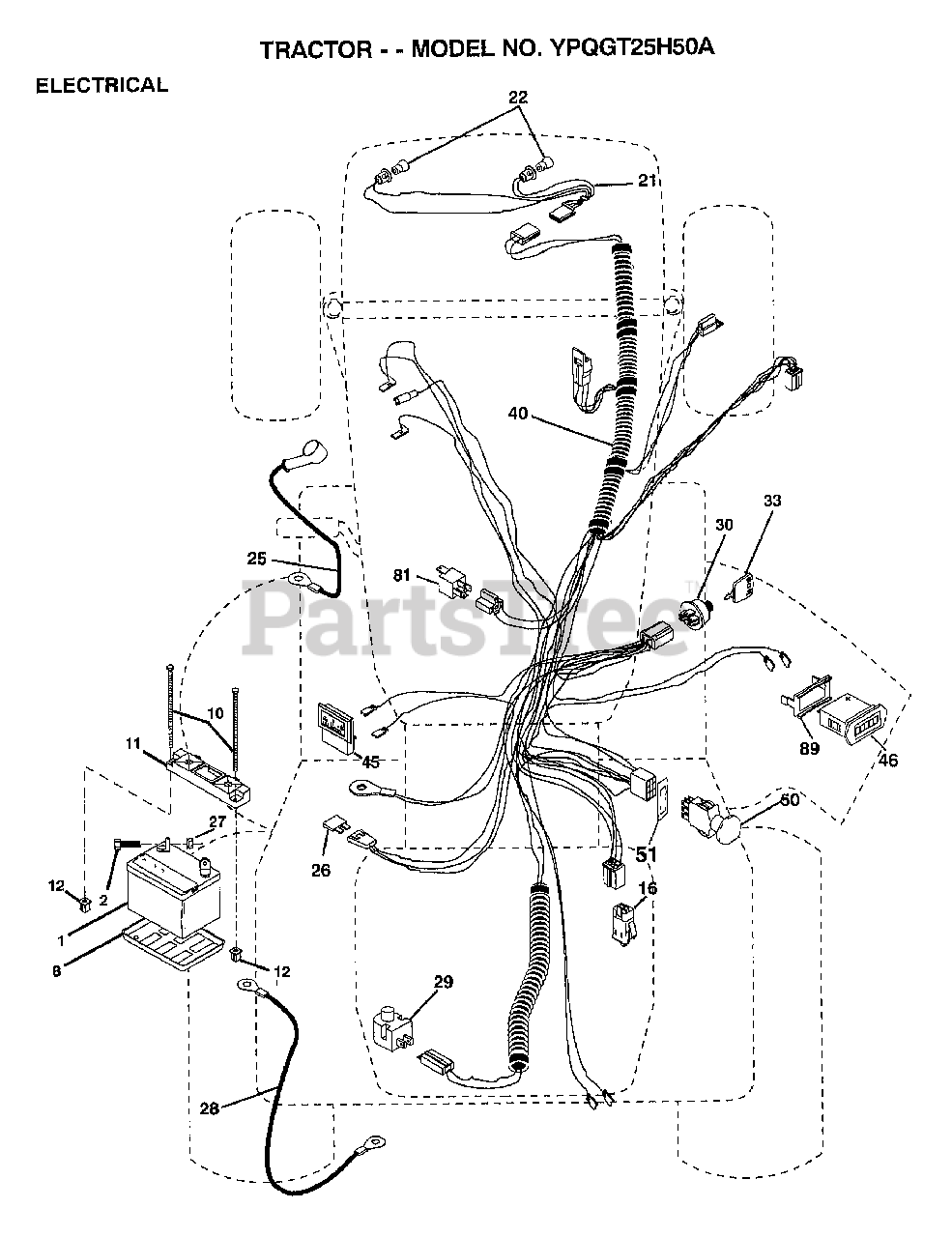

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 144927

SUB= 125603X
(Superseded to 532144927)

$

$

Not available

2

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145211

SUB= 150177
(Superseded to 532145211)

$

$

Not available

11

Electrolux/AYP 150109

HOLDDOWN BATTERY
(Superseded to 532150109)

$

$

Not available

12

Electrolux/AYP 145769

SUB= 150177
(Superseded to 532145769)

$

$

Not available

16

Electrolux/AYP 153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 166182

HARNESS.ASM.LIGHT.W/4152J

$

$

Not available

22

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 154335

CABLE.BOOT.ASM.
(Superseded to 532154335)

$33.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

27

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 157899

"CABLE BATTERY,GRD"

$

$

Not available

29

Electrolux/AYP 160784

SWITCH.PLUNGER
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 163968

SWITCH.IGN.
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 140401

KEY MLD GEN DELTA
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

40

Electrolux/AYP 166178

HARNESS.ING.VGT.

$

$

Not available

45

Electrolux/AYP 122822X

AMMETER
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 169635

METER HOUR
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 154959

PTO SWITCH.BLK
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

51

Electrolux/AYP 140405

RING RETAIN PTO
(Superseded to 532140405)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

89

Electrolux/AYP 169639

BRACKET SNAP
(Superseded to 532169639)

$6.49

$

Usually ships in 3-10 days

0
