YPQ GT 22H46 A - Electrolux/AYP Lawn Tractor (1999) ENGINE Parts Diagram

Lawn Tractor

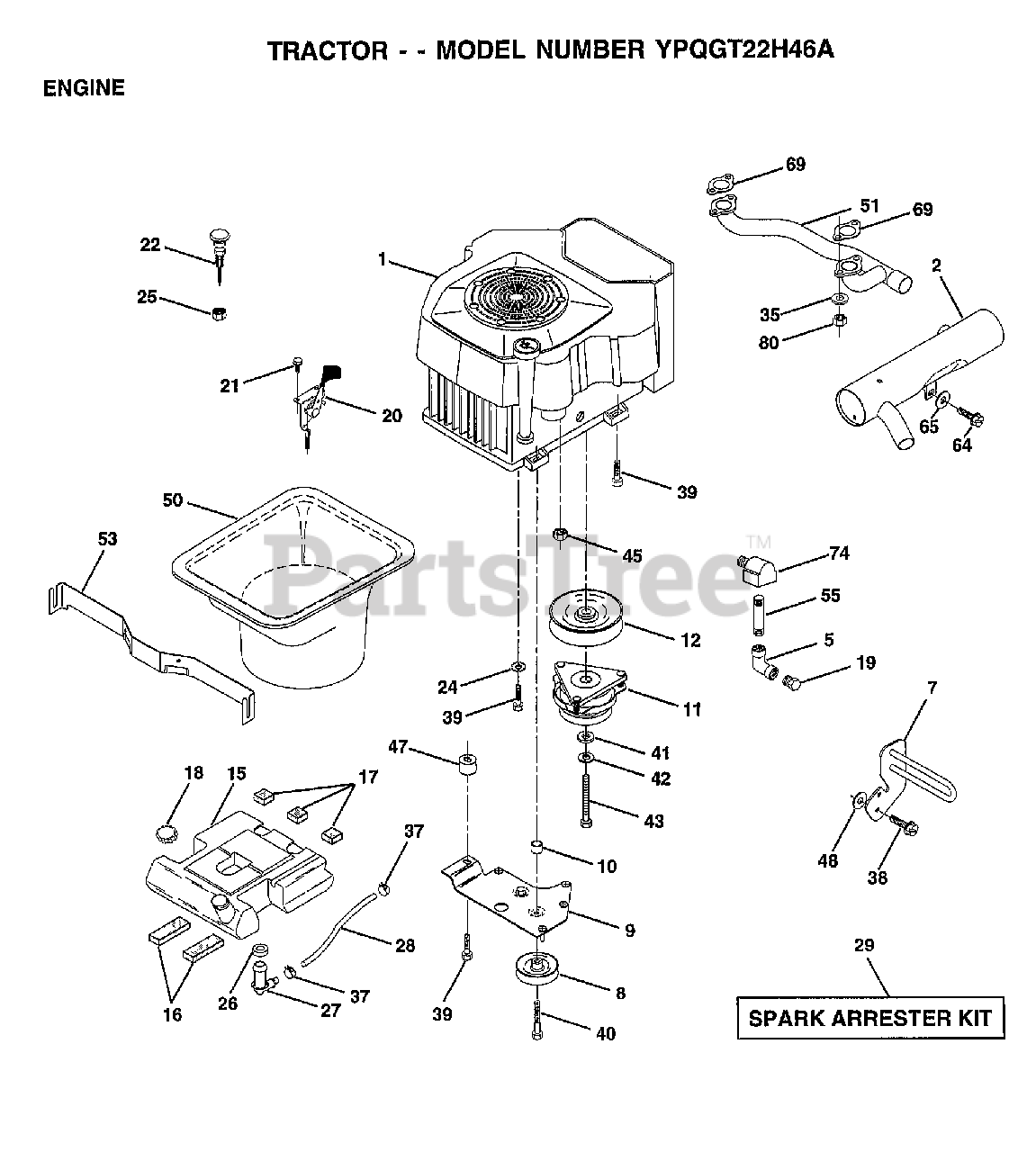

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

2

Electrolux/AYP 161063

MUFFLER.SIDE.VGT

$

$

Not available

5

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 151396

GUARD.MUFFLER.ASM
(Superseded to 532151396)

$

$

Not available

8

Electrolux/AYP 121361X

SUB= 139123
(Superseded to 532121361)

$

$

Not available

9

Electrolux/AYP 150828

KEEPER ASM BELT
(Superseded to 532177748)

$

$

Not available

10

Electrolux/AYP 105432X

BUSHING.
(Superseded to 532105432)

$

$

Not available

11

Electrolux/AYP 140923

SUB= 150283
(Superseded to 532140923)

$546.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 143996

PULLEY.ENG.CLUTCH
(Superseded to 532143996)

$53.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 151346

TANK FUEL REAR
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

18

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 13290300

PLUG T
(Superseded to 813290300)

$

$

Not available

20

Electrolux/AYP 143885

CONTROL.TRTL.37
(Superseded to 583048201)

$30.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

22

Electrolux/AYP 132779

CHOKE CONTROL
(Superseded to 532132779)

$21.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73920600

"NUT,KEPS 3/8-24IM"
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

28

$

$

Not available

29

Electrolux/AYP 132920

SPARK ARREST KIT
(Superseded to 532132920)

$

$

Not available

35

Electrolux/AYP 10010500

WASHER.SPLIT
(Superseded to 810010500)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

38

Electrolux/AYP 17060620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

39

Electrolux/AYP 17490636

SCREW.3/8-16X2.25
(Superseded to 817490636)

$2.49

$

In Stock, Qty 6

0

40

Electrolux/AYP 17490664

SCREW.TT.3/8-16X4
(Superseded to 817490664)

$

$

Not available

41

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 150280

BOLT.7/16-20X4.25
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 128861

NUT
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 142040

SPACER.ENGINE
(Superseded to 532142040)

$

$

Not available

48

Electrolux/AYP 19132007

WASHER T
(Superseded to 819132007)

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 161862

DUCT AIR INTAKE

$

$

Not available

51

Electrolux/AYP 161231

MANIFOLD.PIPE.VGT
(Superseded to 532161231)

$

$

Not available

53

Electrolux/AYP 161829

ROD SUPT HOOD DUC

$

$

Not available

55

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

64

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

65

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 24-041-02

GASKET
(Superseded to 532186054)

$

$

Not available

74

Electrolux/AYP 162295

ELBOW STREET BASS
(Superseded to 532162295)

$34.99

$

In Stock, only 1 left!

0

80

Electrolux/AYP M73030800

NUT FLANGE M8-125
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0
