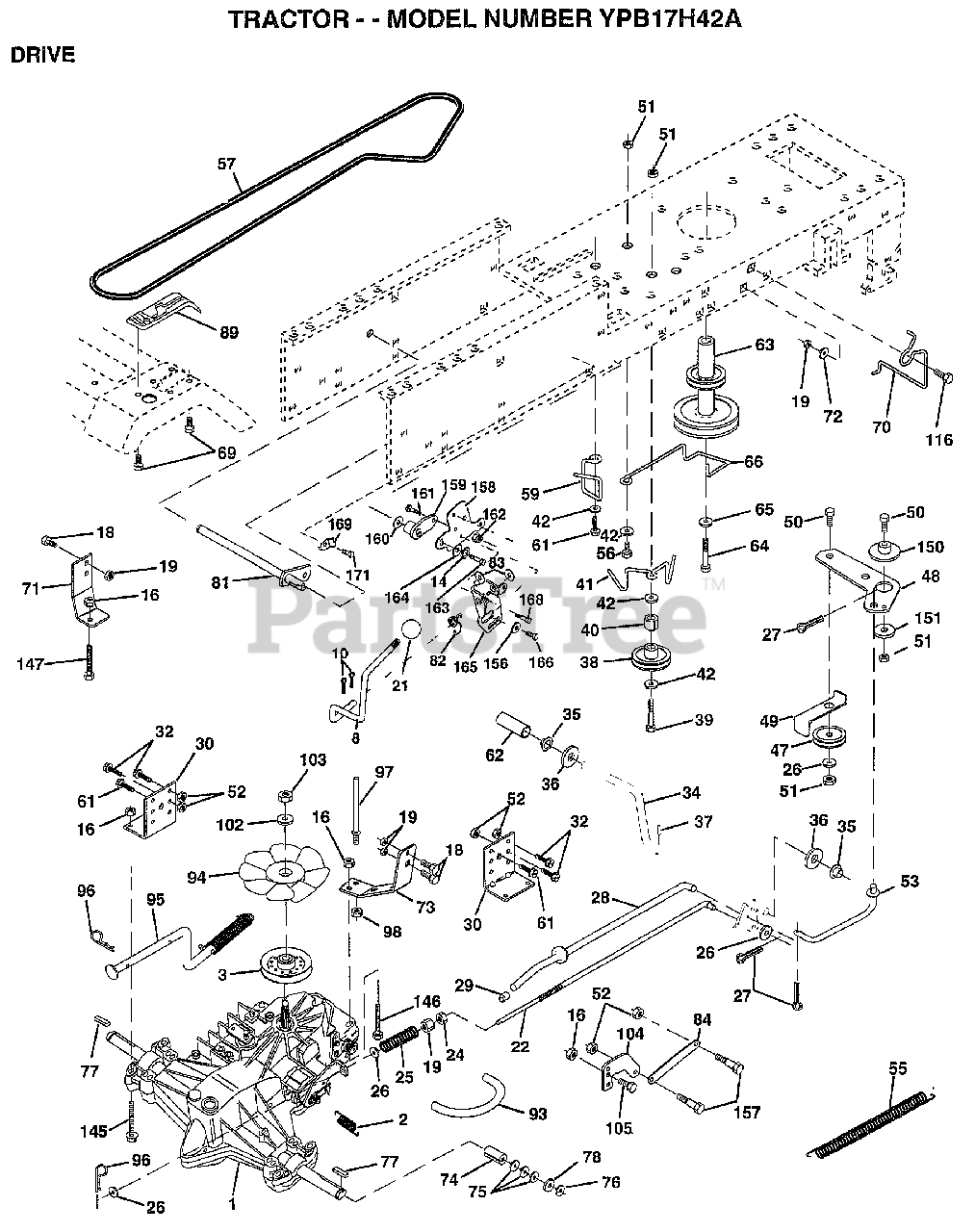

YPB 17H42 A - Electrolux/AYP Lawn Tractor (1999) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

1

Electrolux/AYP 150071

TRANSAXLE.3100650
(Superseded to 532140295)

$

$

Not available

2

Electrolux/AYP 142431

SPRING RET BRAKE
(Superseded to 532142431)

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 143995

PULLEY.TRANSAXLE
(Superseded to 532143995)

$34.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$16.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 74490544

BOLT.HX.FLG.5/16
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 140845

KNOB DLX BLK/BLK
(Superseded to 532140845)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 145627

ROD.BRAKE.HYDRO.
(Superseded to 532145627)

$193.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 73550600

NUT HEX JAM 3/8-16

$

$

Not available

25

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 145204

ROD.BRAKE.PARK.LT
(Superseded to 532145204)

$

$

Not available

29

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 130807

TRANSAXLE MTG BKT
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 155071

SHAFT ASM-PEDAL F
(Superseded to 532155071)

$

$

Not available

35

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

SUB= 2882J

$

$

Not available

38

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 165838

"KEEPER,BELT.IDLER FLAT"
(Superseded to 532165838)

$

$

Not available

42

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

43

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

47

Murray 127783

SUB= 139245

$

$

Not available

48

Electrolux/AYP 154407

BELLCRANK.CLUTCH
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 140294

"BELT.GD DRV 82"""
(Superseded to 532140294)

$39.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 140312

KEEPER BELT CNTSP
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 140186

PULLEY.ENGINE
(Superseded to 532140186)

$113.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 71170764

BOLT
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

KEEPER-BELT
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 142432

SCREW HEXWSH H-L
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 156470

"GUIDE.BELT,RH ENG"

$

$

Not available

71

Electrolux/AYP 140158

STRAP TORQ LH HYD
(Superseded to 532140158)

$

$

Not available

72

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 156347

"STRAP-TORQUE,RH"

$2.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 121199X

SPACER SPLIT
(Superseded to 532121199)

$

$

Not available

75

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 165591

SHAFT.ASM.CROSS
(Superseded to 583016301)

$30.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 123782X

"SPRING,TORSION"
(Superseded to 532123782)

$

$

Not available

83

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 165815

LINK.TRANSAXLE.LT/YT

$5.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 164893X428

CONSOLE.SHIFT.LT
(Superseded to 584460601)

$8.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 142564

"LINE FUEL HYD 4"""
(Superseded to 532142564)

$6.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 140462

"FAN 7"" HYDRO"
(Superseded to 532140462)

$12.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 144643

SUB= 918144643
(Superseded to 532167696)

$

$

Not available

96

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

97

Electrolux/AYP 140469

BOLT KEEPER RH
(Superseded to 532140469)

$

$

Not available

98

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 141322

WASHER BELLEVILLE
(Superseded to 532141322)

$4.99

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 73940800

SUB= 73360800
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

104

Electrolux/AYP 140156

ARM CONTROL HYDRO
(Superseded to 532140156)

$

$

Not available

105

Electrolux/AYP 71070516

SCREW CAP 5/16-18
(Superseded to 871070516)

$4.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 72110610

BOLT RDHD 3/8-16
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 74490540

BOLT.HEX.FLGHD
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 74490536

BOLT.HEX.FLGHD.
(Superseded to 583613101)

$2.99

$

Usually ships in 3-10 days

0

147

Electrolux/AYP 74490524

BOLT.HEX.FLGHD

$

$

Not available

150

Electrolux/AYP 165850

BUSHING.BELLCRANK.GRD.DR
(Superseded to 532165850)

$

$

Not available

151

Electrolux/AYP 19133210

WASHER
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

WASHER.SRRTD.5/16
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 153236

"BOLT,SHOULDER"
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

158

Electrolux/AYP 165589

BRKT.SHIFT.MOUNT
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 165494

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

160

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

BOLT T
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Electrolux/AYP 74780416

NLA
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

WASHER.5/8X.281X10GA
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

165

Electrolux/AYP 165623

BRKT.PIVOT.LEVER
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 166880

SCREW.5/16-18X5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

BOLT.SHOULDER.5/16-18X.561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165581

PLATE.FASTENING
(Superseded to 532165581)

$4.99

$

Usually ships in 3-10 days

0

171

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0
