YP LT 120 DR - Electrolux/AYP Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

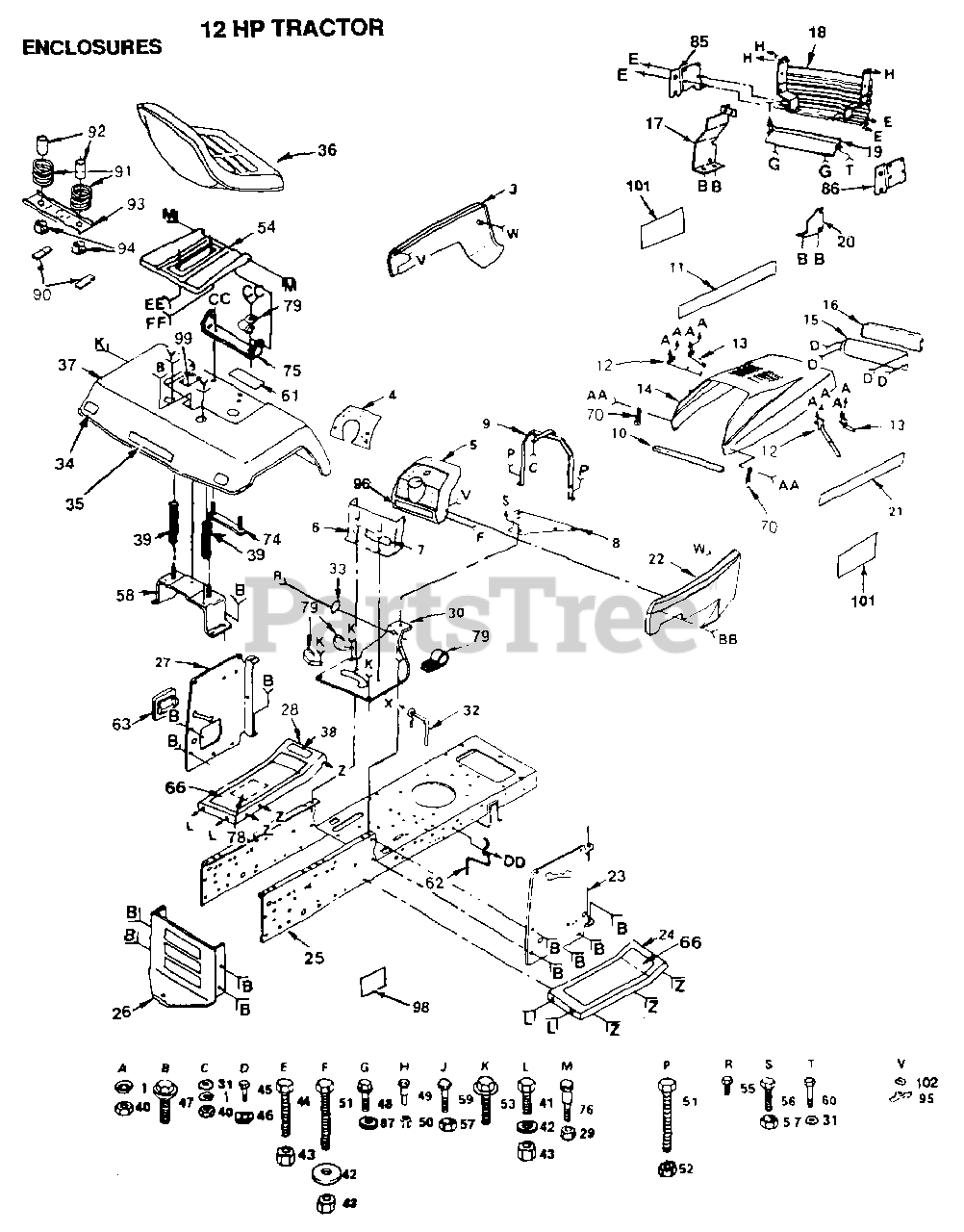

ENCLOSURES Parts Diagram

  • Title

3

Electrolux/AYP 121890X388

SUB= 132637X505

$

$

Not available

4

Electrolux/AYP 121286X014

PLATE DASH

$8.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 121312X

DASH

$

$

Not available

6

Electrolux/AYP 104783X

DASH ASSY LT

$

$

Not available

7

Electrolux/AYP 109821X

SUB= 138956
(Superseded to 532109821)

$

$

Not available

8

Electrolux/AYP 106965X

SUB= 140181

$

$

Not available

9

Electrolux/AYP 104786X

SUPPORT ASSY LT

$

$

Not available

10

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

11

Electrolux/AYP 123965X

DECAL HOOD LH

$

$

Not available

12

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

13

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

14

Electrolux/AYP 121886X388

SUB= 150301X505
(Superseded to 150301X505)

$

$

Not available

15

Electrolux/AYP 104613X

SUB= 147717
(Superseded to 583678801)

$

$

Not available

16

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 121610X

BRCK ASSY

$

$

Not available

18

Electrolux/AYP 104801X

NLA

$

$

Not available

19

Electrolux/AYP 105419X388

NLA

$

$

Not available

20

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

21

Electrolux/AYP 123966X

NLA

$

$

Not available

22

Electrolux/AYP 121889X388

SUB= 132636X505

$

$

Not available

23

Electrolux/AYP 106976X

PANEL DASH RH YT

$

$

Not available

24

Electrolux/AYP 105464X388

FOOTREST-R.H.

$

$

Not available

25

Electrolux/AYP 124355X

SUB= 121277X

$

$

Not available

26

Electrolux/AYP 121306X

SUB= 127866
(Superseded to 127866)

$

$

Not available

27

Electrolux/AYP 109665X

SUB= 532132072

$

$

Not available

28

Electrolux/AYP 105465X388

FOOTREST LH YT

$

$

Not available

29

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 108263X011

SADDLE

$

$

Not available

31

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 121440X

BELT GUIDE
(Superseded to 532121440)

$

$

Not available

33

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

34

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

35

Electrolux/AYP 124580X

NLA

$

$

Not available

36

Electrolux/AYP 121442X

SUB= 140119

$

$

Not available

37

Electrolux/AYP 121663X388

FENDER

$116.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

39

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

40

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

42

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17211010

SCREW LT

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

48

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

51

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 121247X

SUB= 155925

$

$

Not available

55

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

56

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

59

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

60

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 120822X

DECAL
(Superseded to 532120822)

$

$

Not available

62

Electrolux/AYP 121441X

BELT GUIDE
(Superseded to 131402)

$

$

Not available

63

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

66

Electrolux/AYP 109864X

SUB= 108256X

$

$

Not available

70

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

74

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

75

Electrolux/AYP 105513X

SUB= 140551

$

$

Not available

76

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

78

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

85

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

86

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

87

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

90

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

91

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

93

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 73490400

SUB= 146525

$

$

Not available

96

Electrolux/AYP 109821X

SUB= 138956
(Superseded to 532109821)

$

$

Not available

99

REFER TO IMAGE

$

$

Not available

101

Electrolux/AYP 124051X

DECAL.HOOD.LOGO.

$8.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0
