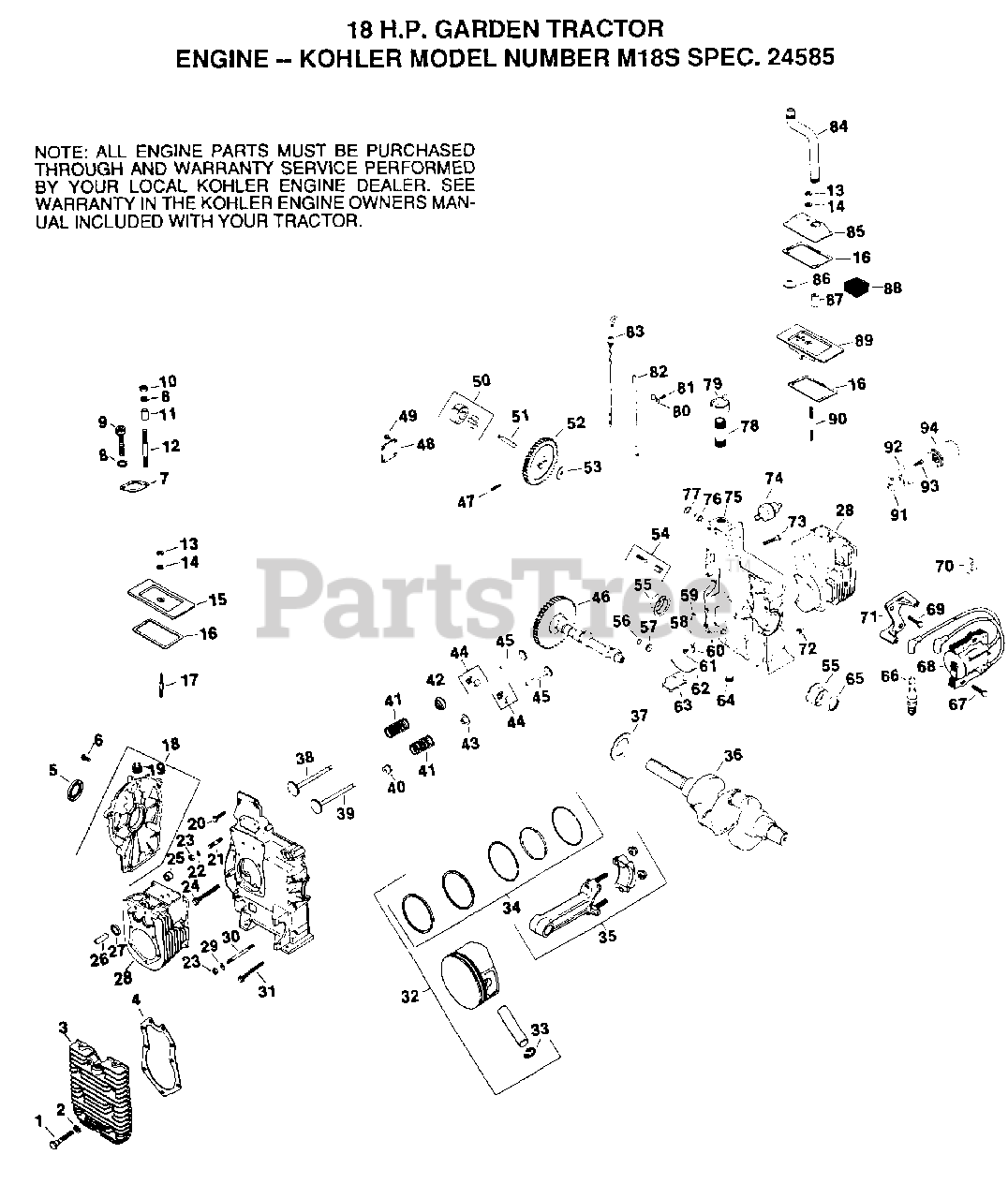

YP GTV 160 AR - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

2

Kohler 220534

WASHER
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

3

Electrolux/AYP 52-015-08

HEAD, CYLINDER

$

$

Not available

4

Electrolux/AYP 52-041-18

GASKET, HEAD

$

$

Not available

5

Kohler X-583-5

SEAL
(Superseded to X-583-5-S)

$22.99

$

In Stock, only 1 left!

0

6

Kohler X-802-9

SCREW
(Superseded to X-802-9-S)

$

$

Not available

7

Electrolux/AYP 52-041-14

GASKET, EXHAUST

$

$

Not available

8

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

9

Kohler X-55-6

SCREW
(Superseded to X-55-6-S)

$3.49

$

In Stock, only 3 left!

0

10

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

11

Electrolux/AYP 52-112-08

SPACER

$

$

Not available

12

Electrolux/AYP 52-072-13

STUD

$

$

Not available

13

Kohler X-81-1

NUT
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0

14

Kohler X-25-12

WASHER
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 52-096-18

COVER, #2 CYLINDER VALVE

$

$

Not available

16

Electrolux/AYP 52-055-01

GASKET

$

$

Not available

17

Kohler X-352-39

STUD
(Superseded to X-352-39-S)

$3.49

$

Usually ships in 2-5 days

0

18

Electrolux/AYP 52-755-55

NUT, HEX

$

$

Not available

19

Kohler X-75-23

PLUG
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 25-086-10

SCREW

$

$

Not available

21

Electrolux/AYP 52-072-12

STEP STUD

$

$

Not available

22

Electrolux/AYP 52-468-12

WASHER

$

$

Not available

23

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

24

Electrolux/AYP 25-086-13

SCREW

$

$

Not available

25

Electrolux/AYP 52-158-04

BUSHING, LOCATING

$

$

Not available

26

Electrolux/AYP 52-316-06

GUIDE

$

$

Not available

27

Kohler 230265

INSERT, VALVE SEAT
(Superseded to 230265-S)

$

$

Not available

28

Electrolux/AYP 52-755-81

KIT, CYLINDER BARREL

$

$

Not available

29

Electrolux/AYP 41-468-01

WASHER

$

$

Not available

30

Kohler X-352-33

STUD
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 25-086-11

SCREW

$

$

Not available

32

Electrolux/AYP 52-874-11

PISTON W/RING SET

$

$

Not available

32A

Electrolux/AYP 52-874-12

PISTON W/RING SET .003"

$

$

Not available

32B

Electrolux/AYP 52-874-13

PISTON W/RING SET .010"

$

$

Not available

32C

Electrolux/AYP 52-874-14

PISTON W/RING SET .020"

$

$

Not available

32D

Electrolux/AYP 52-874-15

PISTON W/RING SET .030"

$

$

Not available

33

Kohler 230004

RETAINER, PISTON PIN
(Superseded to 230004-S)

$6.49

$

In Stock, only 2 left!

0

34

Electrolux/AYP 52-108-09

RING SET, .003"

$

$

Not available

34A

Electrolux/AYP 52-108-10

RING SET, .010"

$

$

Not available

34B

Electrolux/AYP 52-108-11

RING SET, 020"

$

$

Not available

34C

Electrolux/AYP 52-108-12

RING SET, .030"

$

$

Not available

35

Electrolux/AYP 52-067-67

CONNECTING ROD

$

$

Not available

35A

Electrolux/AYP 52-067-68

CONNECT. ROD .010"

$

$

Not available

36

Electrolux/AYP 52-014-64

CRANKSHAFT

$

$

Not available

37

Electrolux/AYP 52-468-03

WASHER, .119/.122 (A.R.)

$

$

Not available

37A

Electrolux/AYP 52-468-04

WASHER, .128/.131

$

$

Not available

37B

Electrolux/AYP 52-468-05

WASHER, .137/.140 (A.R.)

$

$

Not available

38

Electrolux/AYP 52-016-02

VALVE, EXHAUST

$

$

Not available

39

Electrolux/AYP 52-017-08

VALVE, INTAKE

$

$

Not available

40

Electrolux/AYP 52-032-13

SEAL

$

$

Not available

41

Electrolux/AYP 25-089-01

SPRING

$

$

Not available

42

Electrolux/AYP 52-413-01

ROTATOR

$

$

Not available

43

Kohler 230011

RETAINER, INTAKE VALVE
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 6

0

44

Electrolux/AYP 41-755-10

KIT RETAINER

$

$

Not available

45

Electrolux/AYP 52-019-02

TAPPET

$

$

Not available

46

Electrolux/AYP 52-012-08

CAMSHAFT

$

$

Not available

47

Kohler X-280-25

PIN, ROLL
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 9

0

48

Electrolux/AYP 52-096-03

COVER OIL PUMP

$

$

Not available

49

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

50

Electrolux/AYP 52-393-09

ROTOR SET

$

$

Not available

51

Electrolux/AYP 52-144-05

SHAFT OIL PUMP

$

$

Not available

52

Electrolux/AYP 52-043-05

GEAR OIL PUMP

$

$

Not available

53

Electrolux/AYP 52-422-01

SPACER

$

$

Not available

54

Electrolux/AYP 52-755-50

KIT

$

$

Not available

55

Electrolux/AYP 52-030-10

BEARING

$

$

Not available

55A

Electrolux/AYP 52-030-11

BEARING

$

$

Not available

55B

Electrolux/AYP 52-030-12

BEARING

$

$

Not available

56

Electrolux/AYP 52-141-02

O-RING

$

$

Not available

57

Electrolux/AYP 52-139-08

PLUG

$

$

Not available

58

Electrolux/AYP 52-123-10

TUBE, DIPSTICK

$

$

Not available

59

Kohler X-702-15

PLUG, CUP
(Superseded to X-702-15-S)

$2.99

$

Usually ships in 2-5 days

0

60

Electrolux/AYP 52-237-05

CLAMP, TUBE

$

$

Not available

61

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

62

Electrolux/AYP 52-237-02

CLAMP, SPRING

$

$

Not available

63

Electrolux/AYP 52-095-03

HOUSING, OIL PICKUP

$

$

Not available

64

Kohler X-75-32

PLUG
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

65

Electrolux/AYP 52-032-10

SEAL

$

$

Not available

66

Electrolux/AYP 51-132-02

SPARK PLUG

$

$

Not available

67

Electrolux/AYP 25-086-15

SCREW, 1/4-20 X 1

$

$

Not available

68

Electrolux/AYP 52-584-02

MODULE

$

$

Not available

69

Electrolux/AYP 25-086-16

SCREW

$

$

Not available

70

Electrolux/AYP 52-313-02

GROMMET

$

$

Not available

71

Electrolux/AYP 52-126-08

BRKT

$

$

Not available

72

Kohler X-75-10

PLUG
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

73

Electrolux/AYP 25-086-12

SCREW

$

$

Not available

74

Electrolux/AYP 52-099-06

OIL PRESSURE SWITCH

$

$

Not available

75

REFER TO IMAGE

$

$

Not available

76

Electrolux/AYP 52-078-05

SHAFT

$

$

Not available

77

Kohler X-269-43

RING, RETAINING
(Superseded to X-269-43-S)

$3.99

$

Usually ships in 2-5 days

0

78

Electrolux/AYP 46-136-02

PIPE, OIL

$

$

Not available

79

Electrolux/AYP 52-173-01

CAP, PIPE

$

$

Not available

80

Electrolux/AYP 52-154-01

CLIP, TUBE

$

$

Not available

81

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

82

Electrolux/AYP 52-123-09

TUBE, OIL LEVEL

$

$

Not available

83

Electrolux/AYP 52-038-04

DIPSTICK, BLADE 11-5/16

$

$

Not available

84

Electrolux/AYP 52-326-05

HOSE, BREATHER

$

$

Not available

85

Electrolux/AYP 52-096-08

COVER

$

$

Not available

86

Electrolux/AYP 52-462-01

VALVE, BREATHER

$

$

Not available

87

Electrolux/AYP 52-032-04

SEAL BREATHER

$

$

Not available

88

Kohler 231419

FILTER, BREATHER
(Superseded to 231419-S)

$8.49

$

In Stock, Qty 6

0

89

Electrolux/AYP 52-096-22

COVER, #1 LOWER CYLINDER VALVE

$

$

Not available

90

Kohler 275220

STUD
(Superseded to 275220-S)

$

$

Not available

91

Electrolux/AYP 52-041-16

GASKET

$

$

Not available

92

Electrolux/AYP 52-181-02

ADAPTER, OIL FILTER

$

$

Not available

93

Kohler X-55-15

SCREW
(Superseded to X-55-15-S)

$3.49

$

In Stock, only 1 left!

0

94

Electrolux/AYP 52-050-02

OIL FILTER

$

$

Not available

Electrolux/AYP 52-518-22

LEAD, BLACK, MODULE TO CONNECTOR

$

$

Not available

Electrolux/AYP 52-518-08

LEAD, GREEN PRESSURE SWITCH

$

$

Not available
