YP 160 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

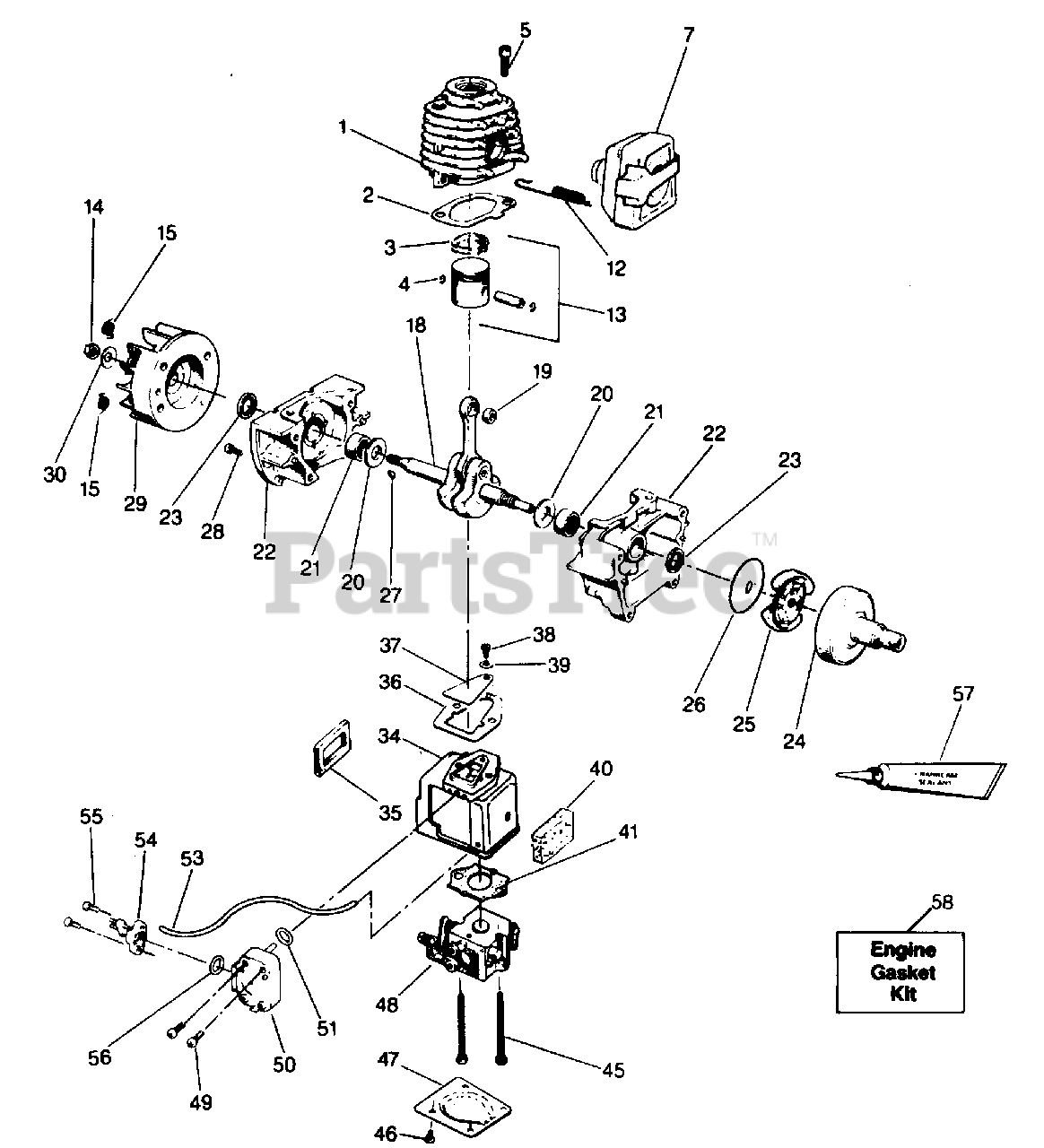

POWER UNIT Parts Diagram

  • Title

1

Poulan 530012112

Cylinder

$

$

Not available

2

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

3

Poulan 530026681

Ring - Piston

$

$

Not available

4

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530015239

Screw - 1/4 - 20 x 3/4 - Hex Soc. Hd. Cylinder

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530026621

Spring - Muffler Attachment

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 502069203

Piston Kit (incl. #3, 4, Pin)
(Superseded to 502069303)

$

$

Not available

14

Poulan 530626605

Nut - Flywheel

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

18

Poulan 530010844

Ass'y. - Crankshaft & Rod

$

$

Not available

19

Poulan 530032092

Bearing - Wrist Pin

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 530015351

Washer - Thrust - Crankcase

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530032029

Bearing - Crankcase

$10.99

$

In Stock, only 2 left!

0

22

Poulan 530010757

Crankcase Ass'y. (Incl. #21, 23 & Qty. 4 of #28)

$

$

Not available

23

Poulan 530019059

Seal - Crankcase

Note: Included in Engine Gasket Kit.

$

$

Not available

24

Poulan 530010765

Drum & Coupling Assembly

$

$

Not available

25

Poulan 530069195

Clutch Assembly Kit (incl. Clutch Washer)

$

$

Not available

26

Poulan 530069196

Kit - Clutch Washer

$

$

Not available

27

Poulan 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015369

Screw - 10 - 24 x 5/8 Fil. Hd. Crankcase

$

$

Not available

29

Poulan 530039114

Flywheel Assembly (incl. #15)

$

$

Not available

30

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530010762

Ass'y. Carburetor Housing & Eyelet

$

$

Not available

35

Poulan 530019105

Seal - Carburetor Case

Note: Included in Engine Gasket Kit.

$

$

Not available

36

Poulan 530019108

Gasket - Carburetor Case to Crankcase

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530024438

Reed Valve

$

$

Not available

38

Poulan 530015241

Screw - 6 - 19 x 5/16 - Pan Hd. - Reed Valve

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530023367

Washer - Reed Valve Screw

$

$

Not available

40

Poulan 530019135

See - Carb. Case (Sponge)

Note: Included in Engine Gasket Kit.

$

$

Not available

41

Poulan 530019115

Gasket - Carburetor

Note: Included in Engine Gasket Kit.

$

$

Not available

45

Poulan 530015566

Screw - 10 - 24 x 2-1/4" - Fil. Hd. - Carburetor

$1.49

$

Usually ships in 3-10 days

0

46

Poulan 530015235

Screw - 8 - 18 x 9/16 - Pan. Hd - Carburetor Case Cover

$

$

Not available

47

Poulan 530026047

Cover - Carburetor Case

$

$

Not available

48

Poulan 530035190

Carburetor - WA - 149 - Cable

$

$

Not available

49

Poulan 530015565

Screw - 8 x 18 x 1" - Accumulator

$

$

Not available

50

Poulan 530010651

Accumulator Assembly (incl. #51 & 54)

$

$

Not available

51

Poulan 530019131

O - ring (Orifice)

$2.49

$

Usually ships in 3-10 days

0

53

Poulan 530021055

Fuel Line - Carburetor

$2.49

$

Usually ships in 3-10 days

0

54

Poulan 530010677

Cap Assembly - Accumulator (incl. #56)

$

$

Not available

55

Poulan 530015235

Screw - 8 - 16 x 9/16

$

$

Not available

56

Poulan 530019128

O - Ring (Accumulator Chamber)

$

$

Not available

57

Poulan 530030054

Sealant - Crankcase (not supplied with unit)

$

$

Not available

58

Poulan 530069219

Engine Gasket Kit

$

$

Not available
