YP 160 - Weed Eater String Trimmer CUTTING HEAD Parts Diagram

String Trimmer

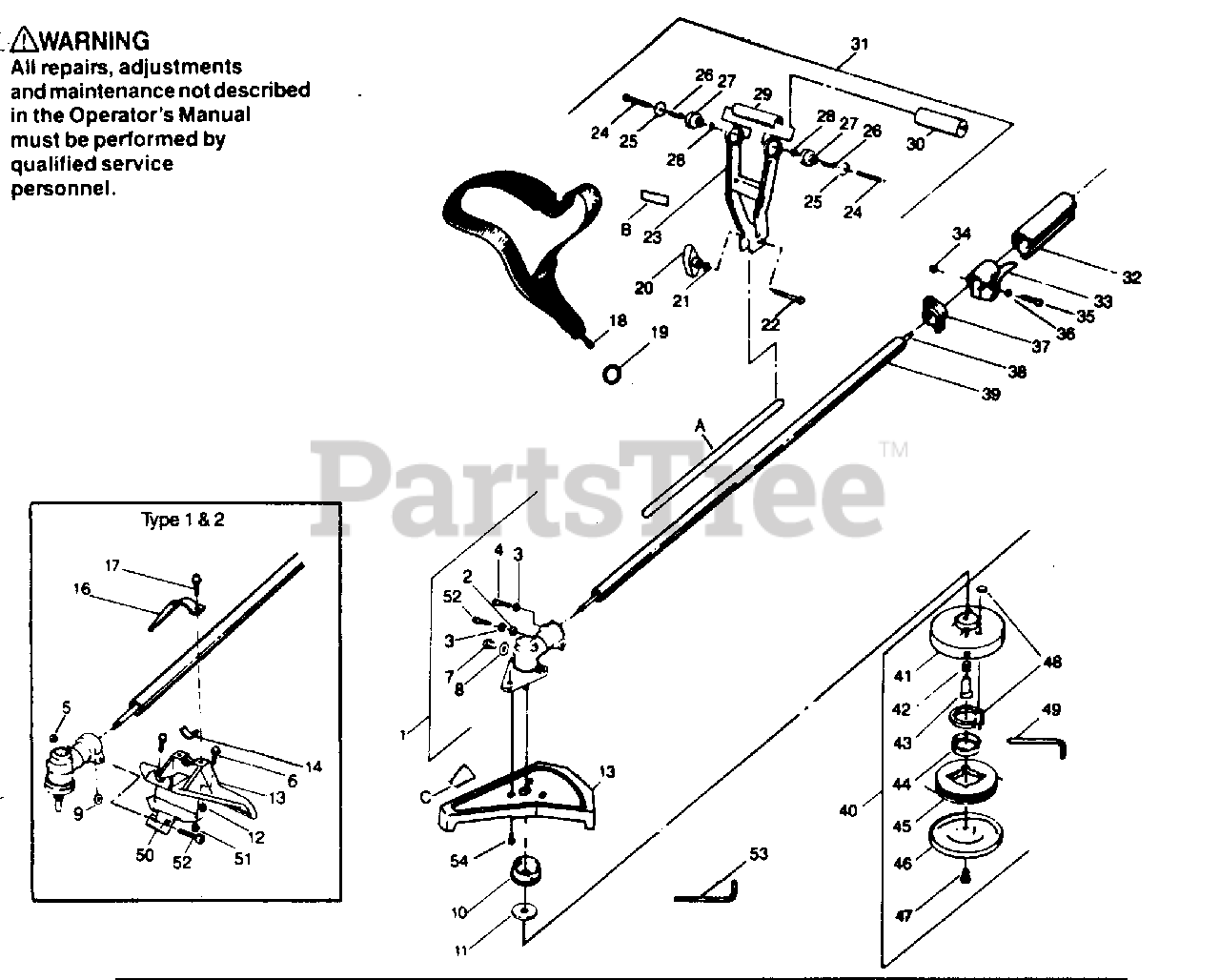

CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530094455

Type 1 & 2

$

$

Not available

1

Poulan 530094495

Type 3

$116.99

$

Usually ships in 3-10 days

0

2

Poulan 530094449

Lockwasher - Type 2

$

$

Not available

2

Poulan 530094206

Washer Type 3

$

$

Not available

3

Poulan 530094200

Lockwasher

$

$

Not available

4

Poulan 530094208

Screw-5 x 12.5 MM-Soc. Hd Gear Box-Index

$

$

Not available

5

Poulan 530094448

Nut-5mm Gear Box-Pinch Clamp-Type 2 only

$

$

Not available

6

Poulan 530094450

Screw-Sems-6 x 16mm-Type 2 only

$

$

Not available

7

Poulan 530094209

Type 1 & 2

$

$

Not available

7

Poulan 530094485

Type 3

$

$

Not available

8

Poulan 530094203

Type 1 & 2

$

$

Not available

8

Poulan 530094486

Type 3

$

$

Not available

9

Poulan 530094207

Washer-Spacer-Gear Box - Type 1 & 2

$

$

Not available

10

Poulan 530093984

Adaptor-Upper

$

$

Not available

11

Poulan 530093985

Adaptor-Lower

$

$

Not available

12

Poulan 530093981

Nut-6mm-Shield Type 1 & 2

$

$

Not available

13

Poulan 530093980

Type 1

$

$

Not available

13

Poulan 530094445

Type 2

$

$

Not available

13

Poulan 530094496

Type 3

$

$

Not available

14

Poulan 530093979

Spacer-Shield-Type 1 & 2

$

$

Not available

16

Poulan 530093978

Bracket-Shield

$

$

Not available

17

Poulan 530093977

Screw-6x20mm-Shield

$

$

Not available

18

Poulan 530094417

Shoulder Strap

$

$

Not available

19

Poulan 530092231

Key Ring-Shoulder Strap

$

$

Not available

20

Poulan 530092059

Knob-Handle

$9.99

$

Usually ships in 3-10 days

0

21

Poulan 530092062

Washer-1/4"-Handle

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530015737

Screw-#1/4-20x1-3/4" Handle

$

$

Not available

23

Poulan 530093960

Handle Antivibe

$

$

Not available

24

Poulan 530015561

Screw-#12-11x2"-Isolator Handle

$

$

Not available

25

Poulan 530024376

Cup-Isolator-Handle

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530025985

Spacer-Isolator Handle

$

$

Not available

27

Poulan 530024373

Isolator-Handle

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015209

Washer-Flat-Handle

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530025986

Center-Section-Handle

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530026009

Cushion-Handle

$

$

Not available

31

Poulan 530010764

Ass'y-Antivibe Handle (incl. #23-30)

$

$

Not available

32

Poulan 530093956

Grip-Drive Shaft Hsg.

$

$

Not available

33

Poulan 530093958

Throttle Control Ass'y.

$

$

Not available

34

Poulan 530094210

Lock Nut-Hex-5mm-Throttle Control

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 530094204

Screw-5x25mm Phil.

$

$

Not available

36

Poulan 530094214

Washer-Throttle Control Throttle Control

$

$

Not available

37

Poulan 530093948

Clamp-Shoulder Strap

$

$

Not available

38

Poulan 530093945

Type 1

$42.99

$

Usually ships in 3-10 days

0

38

Poulan 530094443

Type 2 & 3

$

$

Not available

39

Poulan 530093983

Type 1

$

$

Not available

39

Poulan 530094454

Type 2 & 3

$86.99

$

Usually ships in 3-10 days

0

40

Poulan 530093954

Cutting Head Assembly (incl. #41-49)

$

$

Not available

41

Poulan 530091656

Hub-Cutting Head

$21.99

$

Usually ships in 3-10 days

0

42

Poulan 530091425

Line Saver-Cutting Head

$

$

Not available

43

Poulan 530091423

Drive Adaptor Cutting Head

$

$

Not available

44

Poulan 530091657

Spring-Cutting Head

$

$

Not available

45

Poulan 952701526

Spool w/Line-Cutting Head
(Superseded to 952711515)

$

$

Not available

46

Poulan 530091424

Cover-Cutting Head

$

$

Not available

47

Poulan 530091662

Screw-#3/8-16x7/8"-Cover

$

$

Not available

48

Poulan 530093602

Release Button (incl. Lock Ring)

$

$

Not available

49

Poulan 530091663

Allen Wrench-Cutting Head

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530094447

Bracket-Lower-Splash Deflector-Type 2 only

$

$

Not available

51

Poulan 530094446

Nut-Hex-6mm-Type 2 only

$

$

Not available

52

Poulan 530094205

Type 1 & 3 (5x25mm)

$

$

Not available

52

Poulan 530015742

Type 2 (5x35 mm)

$

$

Not available

53

Poulan 530092258

Wrench-Hex-4mm

$

$

Not available

54

Poulan 530094487

Screw-Type 3

$

$

Not available

A

Poulan 530027432

Upper

$

$

Not available

A

Poulan 530027433

Lower

$

$

Not available

B

Poulan 530026248

Decal-Antivibe

$

$

Not available

C

Poulan 530027348

Decal-Warning Shield

$

$

Not available

Poulan 530066945

Operator's Manual

$6.49

$

Usually ships in 3-10 days

0

Poulan 530060863

Carton (Not a serviceable part)

$

$

Not available
