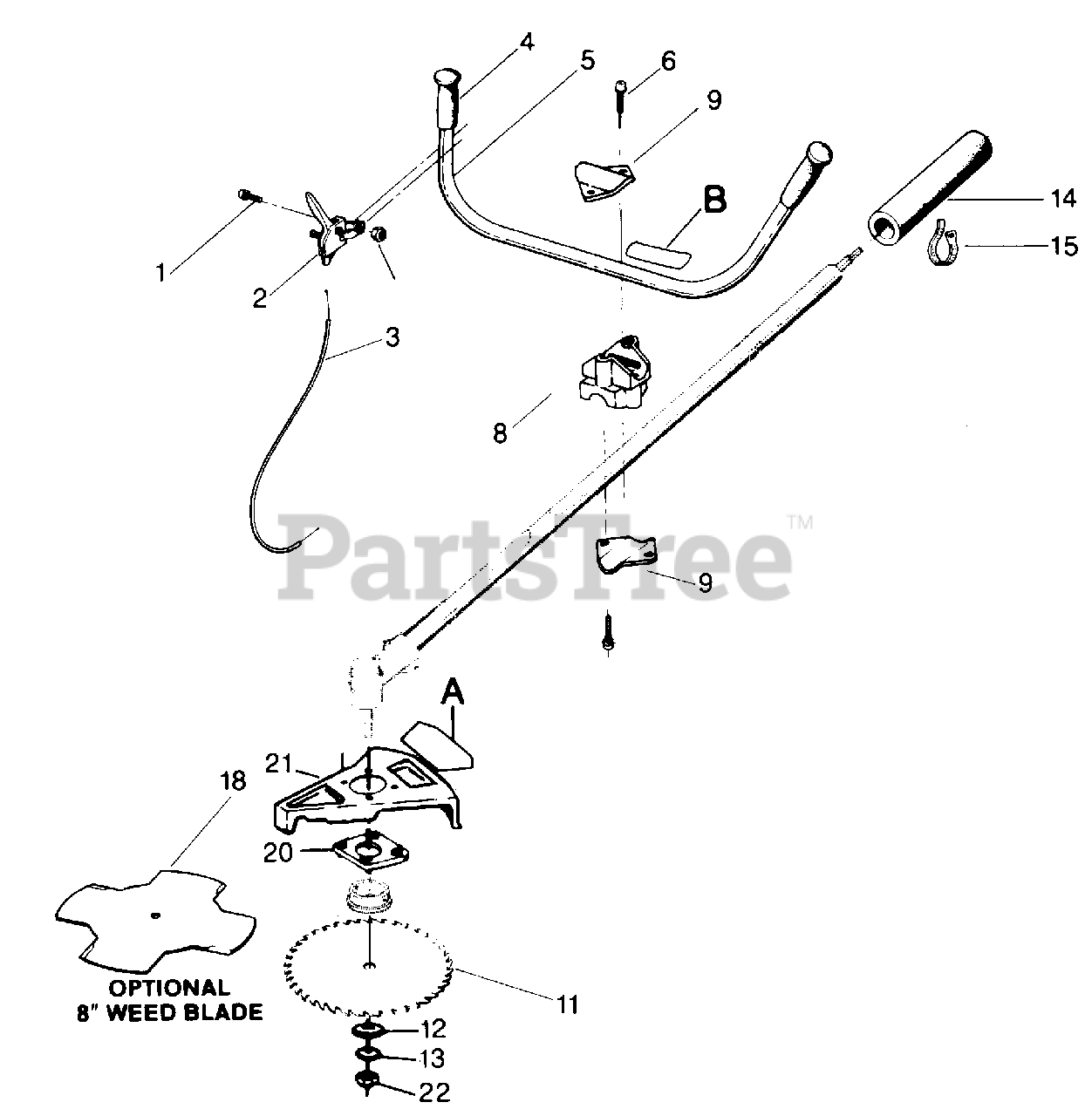

YP 150 - Weed Eater String Trimmer OPTI0NAL BRUSH BLADE ADAPTOR KIT Parts Diagram

String Trimmer

OPTI0NAL BRUSH BLADE ADAPTOR KIT Parts Diagram

  • Title

Poulan 952701576

Brush Blade Adaptor Kit

$

$

Not available

1

Poulan 530015774

Screw - Phil. Hd. - 5 x 25mm.- Throttle Control

$6.49

$

In Stock, only 1 left!

0

2

Poulan 530010959

Ass'y. - Throttle Lever

$

$

Not available

3

Poulan 530093955

Cable - Throttle

$

$

Not available

4

Poulan 530093947

Grip - Handlebar

$

$

Not available

5

Poulan 530093946

Handlebar - "U"

$

$

Not available

6

Poulan 530015791

Bolt - Clamp - Top

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530093962

Cover - Top - Clamp

$

$

Not available

8

Poulan 530012207

Clamp - Handlebar

$

$

Not available

9

Poulan 530094572

Cover - Bottom - Clamp

$3.99

$

In Stock, only 1 left!

0

11

Poulan 952701547

Brush Blade - 10"

$25.99

$

Usually ships in 3-10 days

0

12

Poulan 530015792

washer

$5.99

$

In Stock, only 2 left!

0

13

Poulan 530015492

washer
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

14

Poulan 530027675

Drive Shaft Pad

$

$

Not available

15

Poulan 530091426

Tie Strap

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 530015328

Lockwasher - 10

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530001642

Lockwasher - 10

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 952701546

Weed Blade - 8 inch - Optional

$22.99

$

Usually ships in 3-10 days

0

20

Poulan 530027615

Shield Retention Plate

$7.99

$

Usually ships in 3-10 days

0

21

Poulan 530094627

Shield
(Superseded to 530094633)

$

$

Not available

22

Poulan 530015793

Nut

$6.49

$

In Stock, Qty 5

0

A

Poulan 530027749

Decal - Blade Rotation (Not a serviceable part)

$

$

Not available

B

Poulan 530026229

Decal - Handlebar Warning

$

$

Not available
