YP 140 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

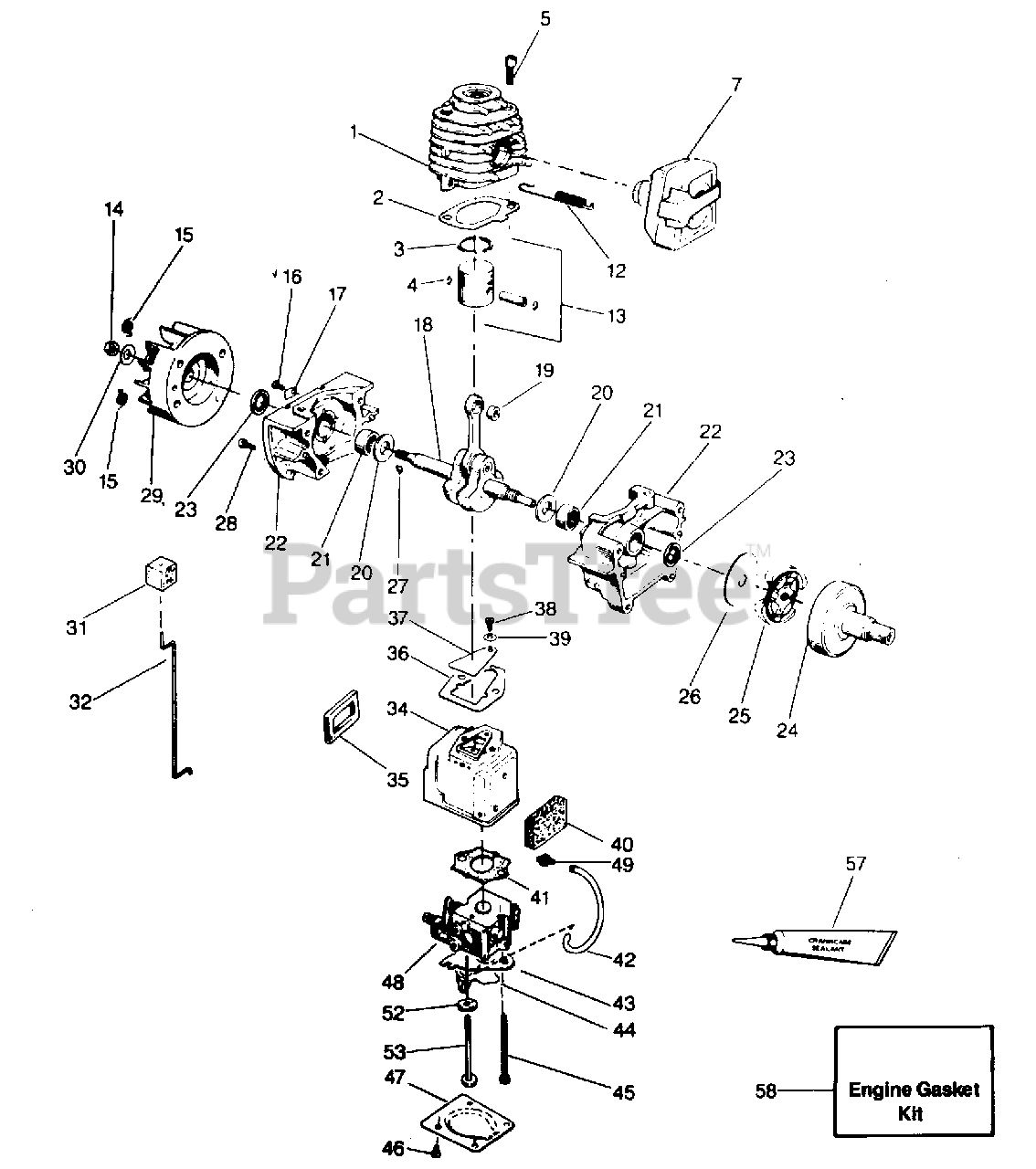

POWER UNIT Parts Diagram

  • Title

1

Poulan 530012168

Cylinder
(Superseded to 530012349)

$

$

Not available

2

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

$

$

Not available

3

Poulan 530026413

Ring - Piston

$

$

Not available

4

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015239

Screw - 1/4 - 20 x 3/4" - Hex Soc.' Hd. - Cylinder

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530026621

Spring - Muffler Attachment

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530010843

Piston Kit (Incl. #3, 4 & Pin)

$

$

Not available

14

Poulan 530626605

Nut - Flywheel

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530015004

Screw - 8 - 32 x 5/16" - Choke Wire Clamp

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530024651

Clamp - Choke Wire

$

$

Not available

18

Poulan 530010849

Ass'y. - Crankshaft & Bearing

$

$

Not available

19

Poulan 530032057

Bearing - Wrist Pin

$

$

Not available

20

Poulan 530015351

Washer - Thrust - Crankcase

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530032029

Bearing - Crankshaft

$10.99

$

In Stock, only 2 left!

0

22

Poulan 530010757

Crankshaft Ass'y. (Incl. #21, 23 & Qty. 4 of #28)

$

$

Not available

23

Poulan 530019059

Seal - Crankcase

$

$

Not available

24

Poulan 530010765

Drum & Coupling Assembly

$

$

Not available

25

Poulan 530069195

Kit - Clutch Assembly (Incl. Washer)

$

$

Not available

26

Poulan 530069196

Kit - Clutch Washer

$

$

Not available

27

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015369

Screw - 10 - 24 x 5/8" - Fil. Hd. Crankcase

$

$

Not available

29

Poulan 530039114

Flywheel Assembly (Incl. #15)

$

$

Not available

30

Poulan 530015127

Washer - Flywheel

$6.49

$

In Stock, only 1 left!

0

31

Poulan 530023373

Boot - Choke Wire

$

$

Not available

32

Poulan 530026236

Choke Wire

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 530010884

Carburetor Housing

$12.99

$

Usually ships in 3-10 days

0

35

Poulan 530019105

Seal - Carburetor Case

$

$

Not available

36

Poulan 530019108

Gasket - Carburetor Case to Crankcase

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530024438

Reed Valve

$

$

Not available

38

Poulan 530015241

Screw - 6 - 19 x 5/16" - Pan Hd. - Reed Valve

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530023367

Washer - Reed Valve Screw

$

$

Not available

40

Poulan 530019135

Seal - Carb. Case (Sponge)

$

$

Not available

41

Poulan 530019115

Gasket - Carburetor

$

$

Not available

42

Poulan 530069238

Line - Fuel - Carburetor

$

$

Not available

43

Poulan 530026237

Guide - Plate Choke Wire

$

$

Not available

44

Poulan 530024558

Shutter - Choke

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530015379

Screw - 10 - 24 x 1-7/8" - Carburetor

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530015235

Screw - 8 - 18 x 9/16" - Pan. Hd. - Carburetor Case Cover

$

$

Not available

47

Poulan 530026029

Cover - Carburetor Case

$

$

Not available

48

Poulan 530035190

Carburetor - WA -149

$

$

Not available

49

Poulan 530025472

Type 1, 2 & 3

$3.49

$

Usually ships in 3-10 days

0

49

Poulan 530026981

Type 4

$6.49

$

In Stock, Qty 7

0

52

Poulan 530015254

Washer - Waver

$3.99

$

In Stock, only 2 left!

0

53

Poulan 530015404

Screw - 10 - 24 x 2-1/18" Carb. Shoulder

$3.99

$

Usually ships in 3-10 days

0

57

Poulan 530030054

Sealant - Crankcase (not supplied with unit)

$

$

Not available

58

Poulan 530069219

Kit - Engine Gasket (Inc. 2,23,31,35,36,40, 41)

$

$

Not available
