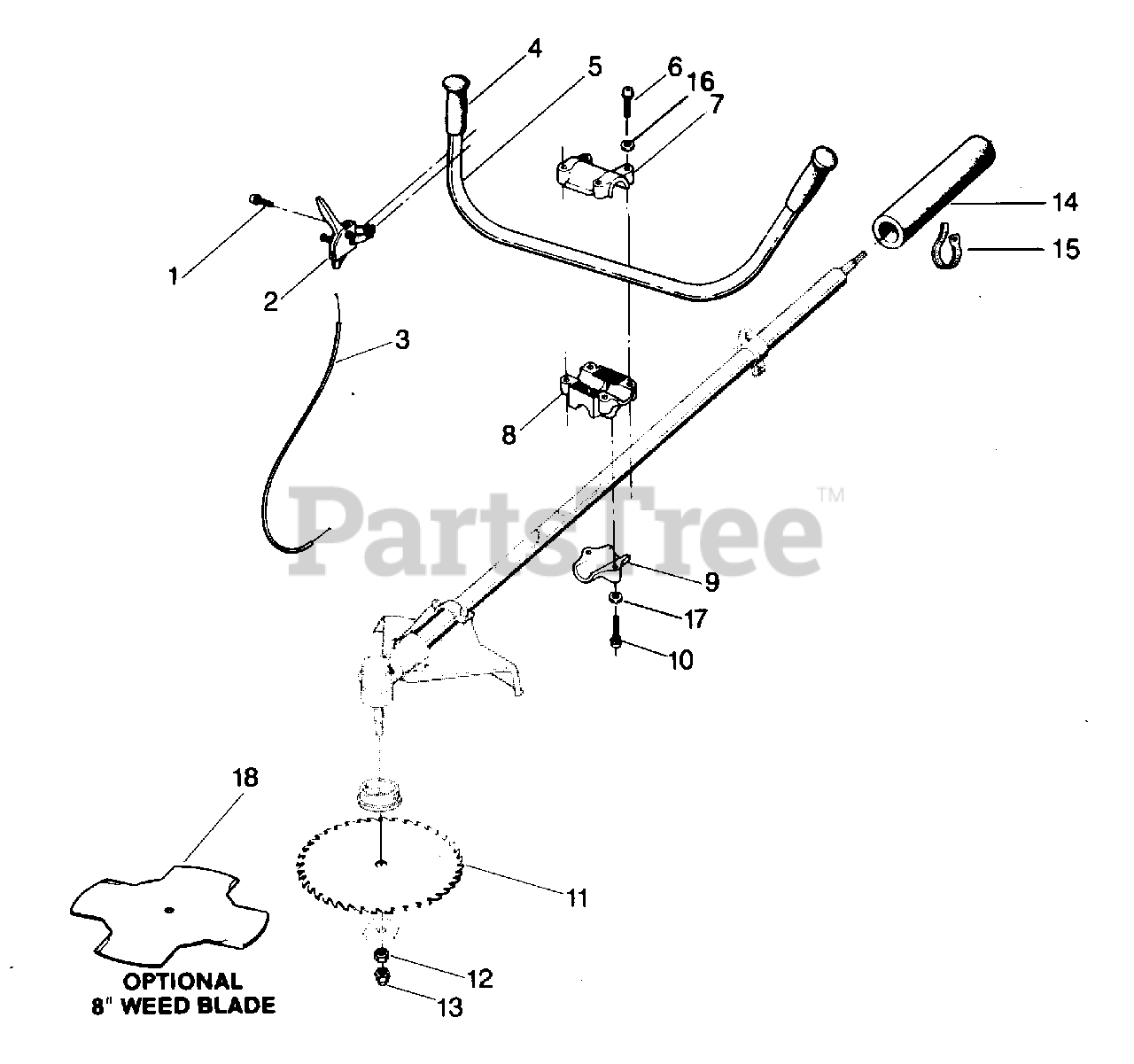

YP 140 - Weed Eater String Trimmer OPTIONAL BRUSH BLADE ADAPTOR KIT Parts Diagram

String Trimmer

OPTIONAL BRUSH BLADE ADAPTOR KIT Parts Diagram

  • Title

1

Poulan 530094204

Screw - Phil. Hd. - 5 x 25mm.- Throttle Control

$

$

Not available

2

Poulan 530093957

Ass'y. - Throttle Control

$

$

Not available

3

Poulan 530093955

Cable - Throttle

$

$

Not available

4

Poulan 530093947

Grip - Handlebar

$

$

Not available

5

Poulan 530093946

Handlebar - "U"

$

$

Not available

6

Poulan 530015337

Bolt - Clamp - Top

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530093962

Cover - Top - Clamp

$

$

Not available

8

Poulan 530094393

Clamp - Handlebar

$

$

Not available

9

Poulan 530093963

Cover - Bottom - Clamp

$

$

Not available

10

Poulan 530001648

Bolt - Clamp - Bottom

$

$

Not available

11

Poulan 952701547

Brush Blade - 10"

$25.99

$

Usually ships in 3-10 days

0

12

Poulan 530091595

Lock Nut - Blade

$

$

Not available

13

Poulan 530091596

Cap - Nut - Blade

$

$

Not available

14

Poulan 530093982

Drive Shaft Pad

$

$

Not available

15

Poulan 530091426

Tie Strap

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 530015328

Lockwasher - 10

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530001642

Lockwasher - 10

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 952701546

Weed Blade - 8 inch - Optional

$22.99

$

Usually ships in 3-10 days

0
