YP 140 - Weed Eater String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

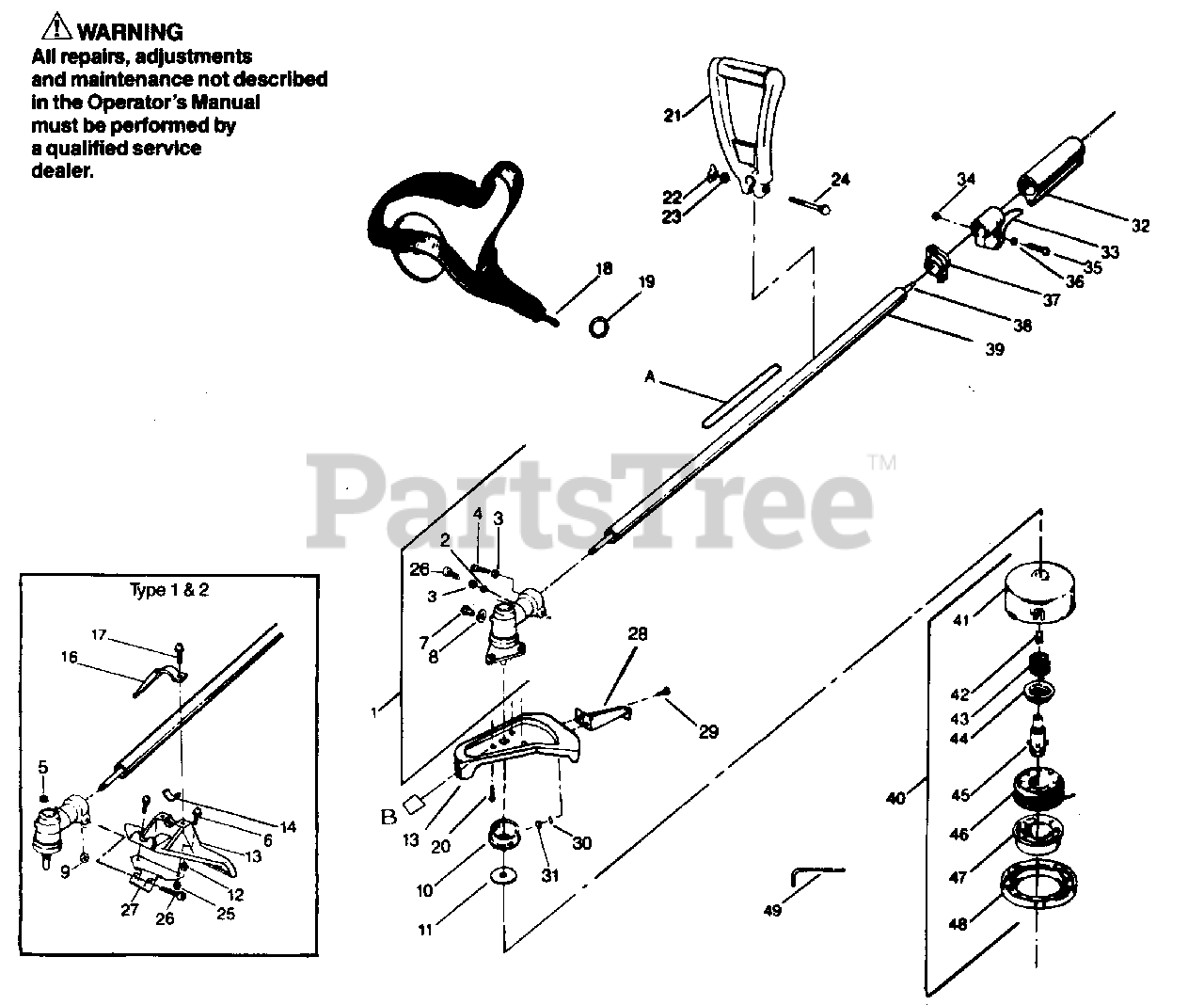

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530094455

Type 1 & 2

$

$

Not available

1

Poulan 530094495

Type 3 & 4

$116.99

$

Usually ships in 3-10 days

0

2

Poulan 530094449

Lockwasher - Type 2

$

$

Not available

2

Poulan 530094206

Washer - Type 1, 3 & 4

$

$

Not available

3

Poulan 530094200

Lockwasher - 5mm

$

$

Not available

4

Poulan 530094208

Screw - 5 x 12.5mm - Soc. Hd. Gear Box - Index

$

$

Not available

5

Poulan 530094448

Nut - 5mm - Type 2 only Gear Box - Pinch Clamp

$

$

Not available

6

Poulan 530094450

Screw - Sems - 6 x 16mm - Type 2 only

$

$

Not available

7

Poulan 530094209

Type 1 & 2

$

$

Not available

7

Poulan 530094485

Type 3 & 4

$

$

Not available

8

Poulan 530094203

Type 1 &2

$

$

Not available

8

Poulan 530094486

Type 3 & 4

$

$

Not available

9

Poulan 530094207

Washer - Spacer - Gear Box - Type 1 & 2

$

$

Not available

10

Poulan 530093984

Adaptor - Upper

$

$

Not available

11

Poulan 530093985

Adaptor - Lower

$

$

Not available

12

Poulan 530093981

Nut - 6mm - Shield - Type 1 & 2

$

$

Not available

13

Poulan 530093980

Type 1

$

$

Not available

13

Poulan 530094445

Type 2

$

$

Not available

13

Poulan 530094496

Type 3 & 4

$

$

Not available

14

Poulan 530093979

Spacer - Shield - Type 1 & 2

$

$

Not available

16

Poulan 530093978

Bracket - Top - Shield - Type 1 & 2

$

$

Not available

17

Poulan 530093977

Screw - 6 x 20 mm - Shield - Type 1 & 2

$

$

Not available

18

Poulan 530094417

Shoulder Strap

$

$

Not available

19

Poulan 530092231

Key Ring Shoulder Strap

$

$

Not available

20

Poulan 530094487

Screw - Type 3 & 4

$

$

Not available

21

Poulan 530012143

Assist Handle

$

$

Not available

22

Poulan 530091373

Wing Nut "D" Handle

$2.49

$

In Stock, only 1 left!

0

23

Poulan 530092062

Washer - Handle

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530015737

Screw - Handle

$

$

Not available

25

Poulan 530094446

Nut - Hex 6mm - Type 2 only

$

$

Not available

26

Poulan 530094205

Type 1, 3 & 4 (5 x 25mm)

$

$

Not available

26

Poulan 530015742

Type 2 (5 x 35mm)

$

$

Not available

27

Poulan 530094447

Bracket - Lower - Splash Deflector - Type 2 only

$

$

Not available

28

Poulan 530094499

Line Limiter - Type 3 & 4

$

$

Not available

29

Poulan 530015539

Screw - Type 3 & 4

$

$

Not available

30

Poulan 530015328

Washer - Type 3 & 4

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530001543

Nut - Type 3 & 4

$

$

Not available

32

Poulan 530093956

Grip - Drive Shaft Hsg.

$

$

Not available

33

Poulan 530093958

Throttle Control Ass'y

$

$

Not available

34

Poulan 530094210

Lock Nut - Hex - 5mm Throttle Control

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 530094204

Screw

$

$

Not available

36

Poulan 530094214

Washer - Throttle Control

$

$

Not available

37

Poulan 530093948

Clamp - Shoulder Strap

$

$

Not available

38

Poulan 530093945

Type 1

$42.99

$

Usually ships in 3-10 days

0

38

Poulan 530094443

Type 2, 3 & 4

$

$

Not available

39

Poulan 530093983

Type 1

$

$

Not available

39

Poulan 530094454

Type 2, 3 & 4

$86.99

$

Usually ships in 3-10 days

0

40

Poulan 530094430

Cutting Head Ass'y (Incl. #41-48)

$

$

Not available

41

Poulan 530093896

Hub w/Line Saver
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

42

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530092068

Adaptor - Spring
(Superseded to 530328929)

$

$

Not available

45

Poulan 530094429

Drive Gear

$

$

Not available

46

Poulan 952701589

Spool w/Line

$6.99

$

In Stock, Qty 6

0

47

Poulan 530093367

Release Button (Incl. Lock Ring)

$

$

Not available

48

Poulan 530092133

Cover

$

$

Not available

49

Poulan 530092258

Wrench - Hex - 4mm

$

$

Not available

A

Poulan 530027432

Upper

$

$

Not available

A

Poulan 530027433

Lower

$

$

Not available

B

Poulan 530027348

Decal - Warning Shield

$

$

Not available

Poulan 530066941

Operator's Manual

$

$

Not available

Poulan 530060852

Carton (Not a serviceable part)

$

$

Not available
