YP 120 - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

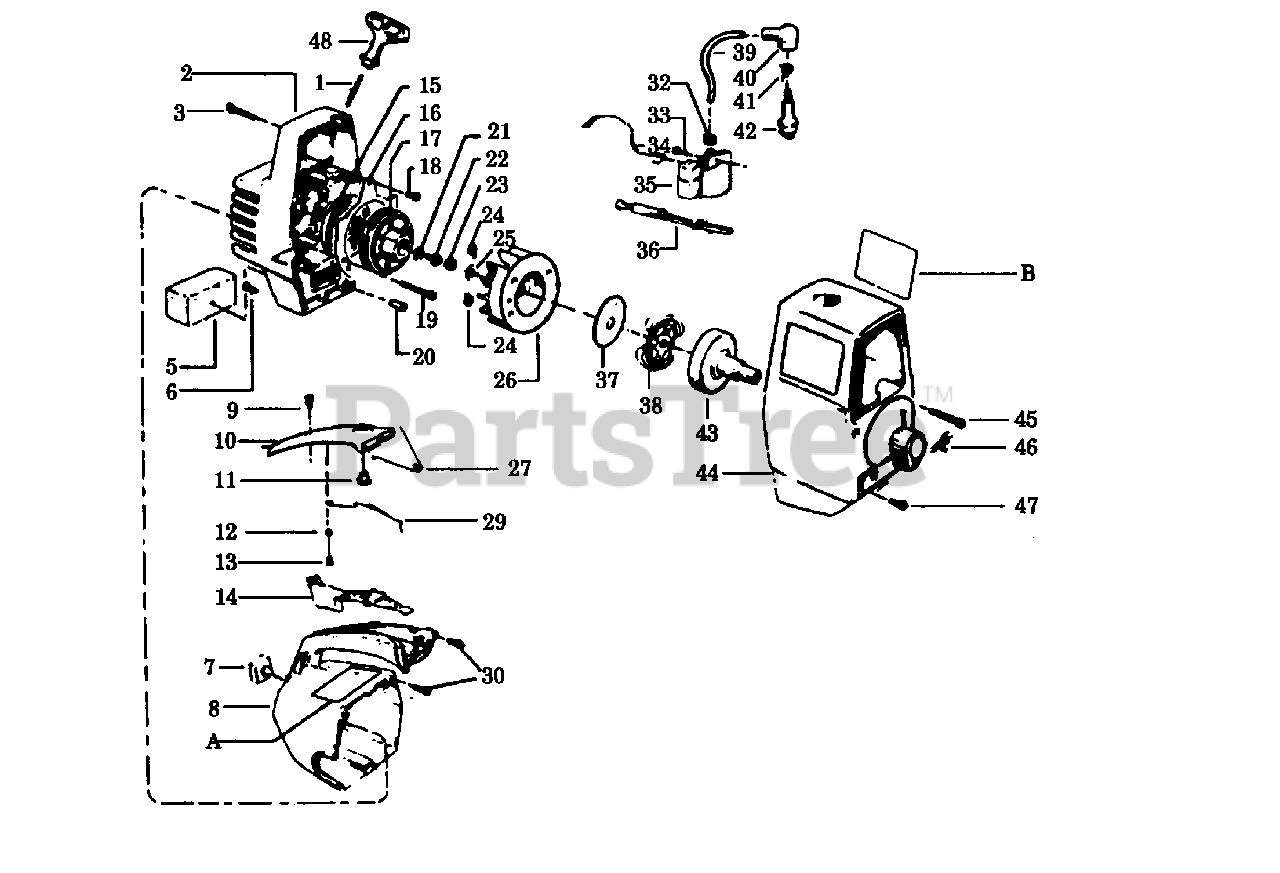

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

2

Poulan 530069178

Fan Housing Kit

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530015583

Screw

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 530015582

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530024436

Fuel Tank Housing Bumper

$

$

Not available

8

Poulan 530026199

Handle & Fuel Tank Housing

$18.99

$

Usually ships in 3-10 days

0

9

Poulan 530015247

Screw

$

$

Not available

10

Poulan 530026202

Handle Cover

$

$

Not available

11

Poulan 530026679

Switch Button

$

$

Not available

12

Poulan 530015123

Switch Washer

$4.99

$

In Stock, only 4 left!

0

13

Poulan 530015407

Screw

$

$

Not available

14

Poulan 530024365

Throttle Trigger

$

$

Not available

15

Poulan 530042067

Recoil Spring Starter
(Superseded to 545008009)

$

$

Not available

16

Poulan 530026035

Air Baffle

$

$

Not available

17

Poulan 530026048

Starter Pulley

$

$

Not available

18

Poulan 530015544

Screw

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530015563

Screw

$

$

Not available

20

Poulan 530026122

Air Baffle Spacer

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

22

Poulan 530015479

Screw
(Superseded to 530071620)

$34.99

$

Usually ships in 3-10 days

0

23

Poulan 530626605

Flywheel Nut

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Starter Dog Spring
(Superseded to 530023817)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530015127

Washer

$6.49

$

In Stock, only 1 left!

0

26

Poulan 530039114

Flywheel Ass'y.

$

$

Not available

27

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530024407

Switch Spring

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530015367

Screw
(Superseded to 530015872)

$6.49

$

In Stock, Qty 16

0

32

Poulan 530024435

Plug Wire Grommet

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530024158

Lead Wire Switch

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530069181

Ignition Module Kit

$

$

Not available

36

Poulan 530024303

Choke Knob

$

$

Not available

37

Poulan 530069196

Clutch Washer Kit

$

$

Not available

38

Poulan 530069194

Clutch Kit Ass'y. (Inc. Clutch Washer)

$21.99

$

Usually ships in 3-10 days

0

39

Poulan 530039082

High Tension Lead Wire

$

$

Not available

40

Poulan 530003934

Spark Plug Boot

$

$

Not available

41

Poulan 530003933

Spark Plug Lead Connector
(Superseded to 507475326)

$

$

Not available

42

Poulan 530030077

Spark Plug-CJ-14

$

$

Not available

43

Poulan 530010902

Drum & Coupling Ass'y.

$

$

Not available

44

Poulan 530012096

Shroud

$

$

Not available

45

Poulan 530015376

Screw

$

$

Not available

46

Poulan 530093802

Pinch Clamp Bolt

$

$

Not available

47

Poulan 530015168

Screw

$

$

Not available

48

Poulan 530026735

Starter Handle
(Superseded to 530027569)

$6.49

$

Usually ships in 3-10 days

0

A

Poulan 530027012

Starting Instruction Decal (Not a serviceable part)

$

$

Not available

B

Poulan 530027010

Right- Model YP120

$

$

Not available

B

Poulan 530027653

Right- Model YP120A

$

$

Not available

B

Poulan 530027011

Left Model YP120

$

$

Not available

B

Poulan 530027654

Left Model YP120A

$

$

Not available

B

Poulan 530027149

Top

$

$

Not available
