YP 116 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

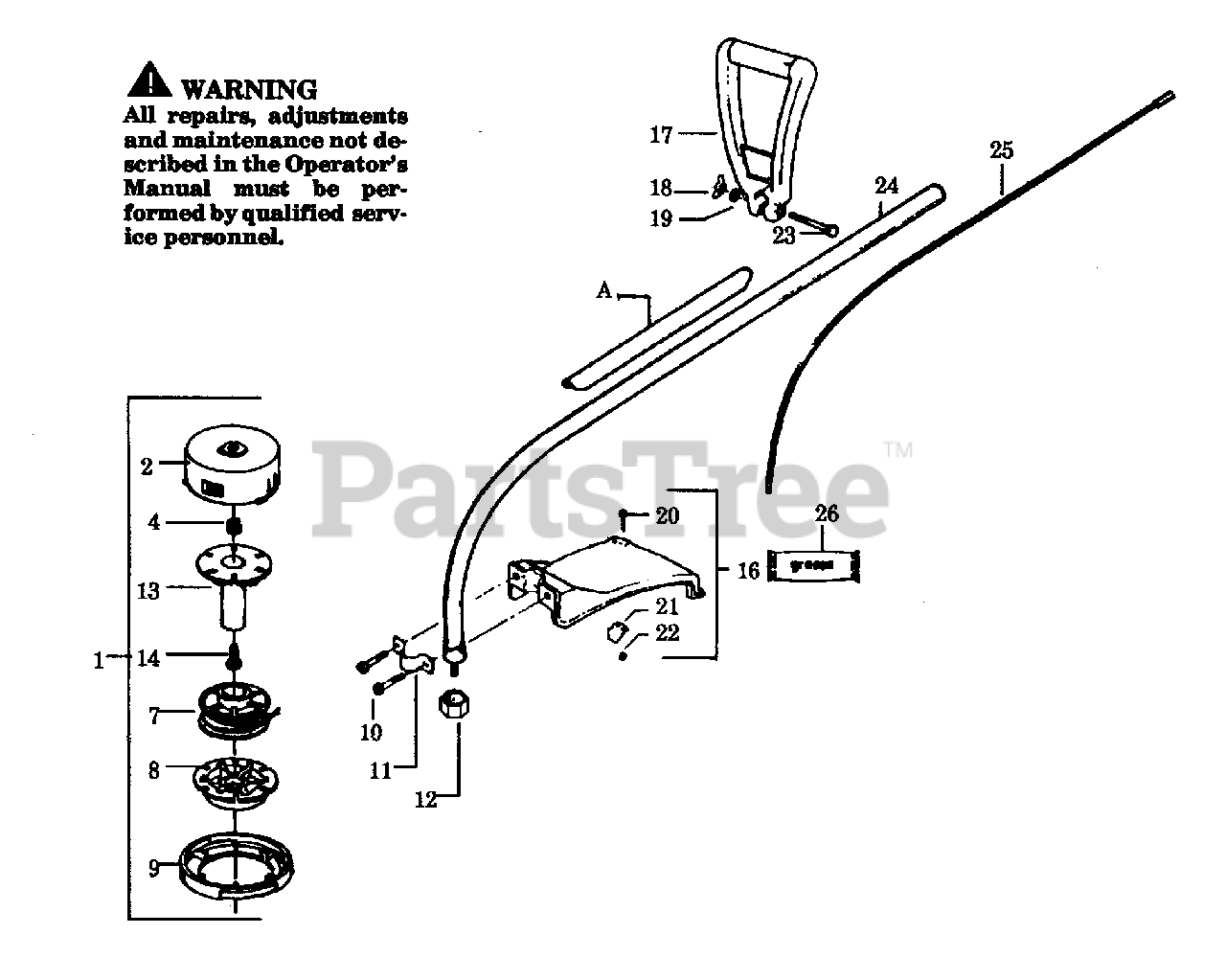

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 952701604

Cutting Head Ass'y. (Inc.2-9)
(Superseded to 952701618)

$

$

Not available

2

Poulan 530094562

Hub w/Line Saver

$

$

Not available

4

Poulan 530094525

Spring
(Superseded to 530094956)

$0.99

$

Usually ships in 3-10 days

0

7

Poulan 952701606

Spool w/Line
(Superseded to 952708510)

$

$

Not available

8

Poulan 530094522

Release Button

$

$

Not available

9

Poulan 530094521

Cover

$10.99

$

Usually ships in 3-10 days

0

10

Poulan 530092243

Screw
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

11

Poulan 530093653

Shield Bracket

$3.99

$

In Stock, only 1 left!

0

12

Poulan 530094543

Dust Cup

$

$

Not available

13

Poulan 530094524

Spool Post

$

$

Not available

14

Poulan 530015542

Screw #10-24x5/8

$

$

Not available

15

Poulan 530001733

Nut

$

$

Not available

16

Poulan 530069249

Shield Kit Ass'y.

$

$

Not available

17

Poulan 530010722

Assist Handle

$

$

Not available

18

Poulan 530091373

Wing Nut

$2.49

$

In Stock, only 1 left!

0

19

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530015337

Screw #10-24x1

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

22

Poulan 530015653

Nut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015737

Screw

$

$

Not available

24

Poulan 530094634

Drive Shaft Ass'y (Inc. 12)

$

$

Not available

25

Poulan 530094607

Flexible Shaft Ass'y.

$

$

Not available

26

Poulan 530030102

Flex Shaft Lube
(Superseded to 952708514)

$

$

Not available

A

Poulan 530027430

Safety Label Decal
(Superseded to 530029159)

$

$

Not available

Poulan 530067214

Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530061069

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
