YP 115 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

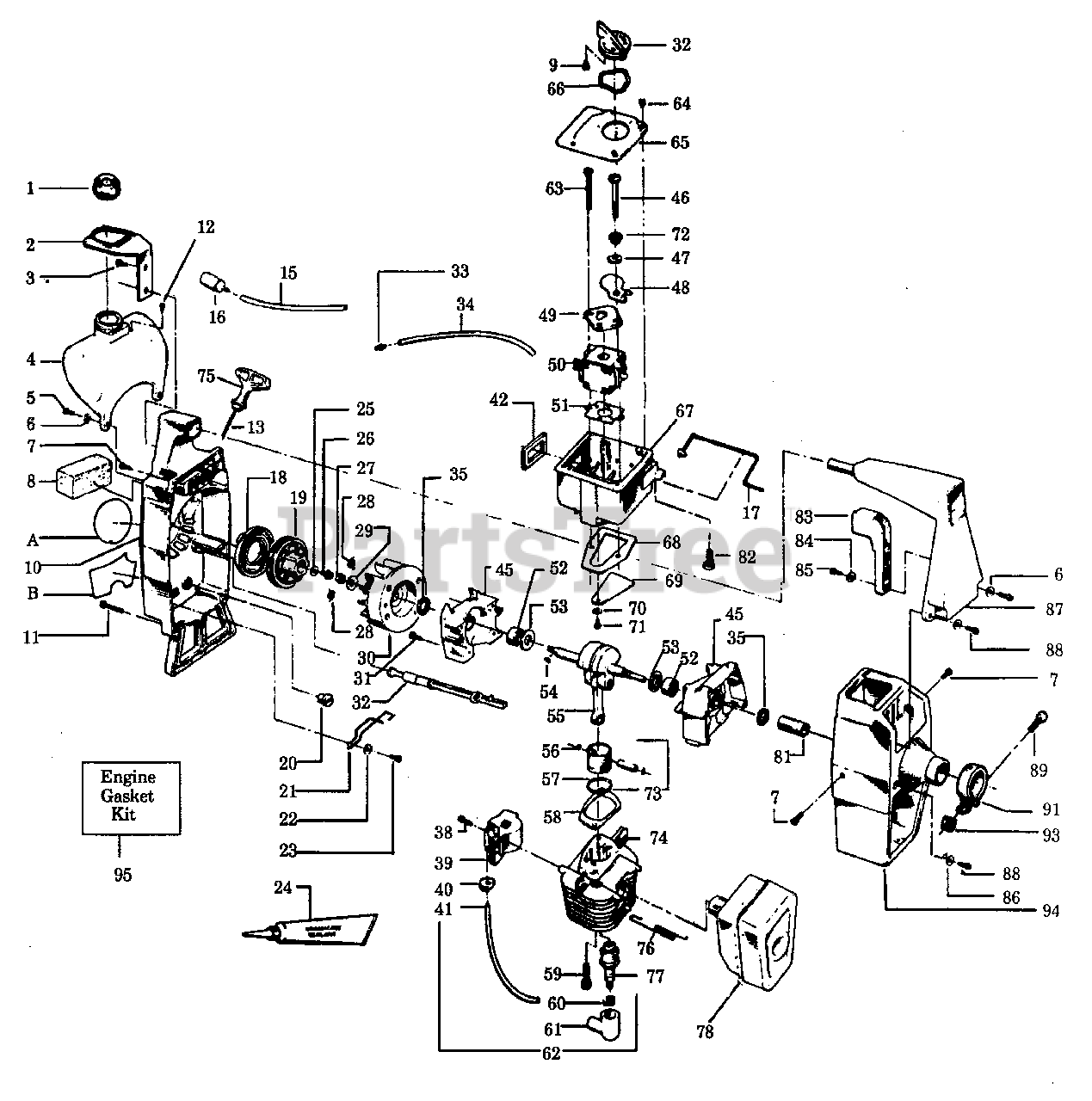

POWER UNIT Parts Diagram

  • Title

1

Poulan 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

Note: (Incl. "O" Ring)

$9.49

$

In Stock, Qty 15

0

2

Poulan 530025377

Fuel Tank Bracket

$

$

Not available

3

Poulan 530092243

Screw
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

4

Poulan 530010887

Fuel Tank Ass'y. (Inc.1,12,15 & 16)

$

$

Not available

5

Poulan 530015509

Screw

$3.99

$

In Stock, only 2 left!

0

6

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

7

Poulan 530015590

Screw

$

$

Not available

8

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530015740

Screw

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530010891

Fan Housing Ass'y.

$24.99

$

In Stock, only 1 left!

0

11

Poulan 530015594

Fan Housing Screw - Bottom

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530026119

Check Valve

$5.99

$

In Stock, only 4 left!

0

13

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

15

Poulan 530069247

Line Kit(Bulk 8148)

$7.99

$

In Stock, Qty 20+

0

16

Poulan 530010897

Fuel Pick-Up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

17

Poulan 530027190

Throttle Wire

$

$

Not available

18

Poulan 530042067

Recoil Spring Starter
(Superseded to 545008009)

$

$

Not available

19

Poulan 530026048

Starter Pulley

$

$

Not available

20

Poulan 530026679

Kill Switch Button

$

$

Not available

21

Poulan 530026559

Kill Switch Spring

$

$

Not available

22

Poulan 530015382

Kill Switch Washer

$

$

Not available

23

Poulan 530015407

Kill Switch Screw

$

$

Not available

24

Poulan 530030054

Crankcase Sealant

$

$

Not available

25

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

26

Poulan 530015479

Screw
(Superseded to 530071620)

$34.99

$

Usually ships in 3-10 days

0

27

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

28

Poulan 530042059

Starter Dog Spring
(Superseded to 530023817)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 530015127

Washer

$6.49

$

In Stock, only 1 left!

0

30

Poulan 530039114

Flywheel Ass'y. (Inc.28)

$

$

Not available

31

Poulan 530015369

Screw

$

$

Not available

32

Poulan 530027101

Choke Knob

$

$

Not available

33

Poulan 530026981

Fuel Line Fitting

$6.49

$

In Stock, Qty 7

0

34

Poulan 530021073

Carburetor Fuel Line

$

$

Not available

35

Poulan 530019059

Crankshaft Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

38

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530069181

Ignition Module Kit (Inc.21,40,62)

$

$

Not available

40

Poulan 530024435

Plug Wire Grommet

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530039082

High Tension Lead Wire

$

$

Not available

42

Poulan 530019105

Carburetor Case Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

45

Poulan 530010757

Crankcase Ass'y. (Inc.31,35,52)

$

$

Not available

46

Poulan 530015630

Carburetor Screw

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

48

Poulan 530026772

Choke Shutter

$

$

Not available

49

Poulan 530026797

Choke Wire Guide Plate

$

$

Not available

50

Poulan 530035257

Carburetor

$86.99

$

Usually ships in 3-10 days

0

51

Poulan 530019157

Carburetor Gasket

Note: Included in Engine Gasket Kit.

$

$

Not available

52

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

53

Poulan 530015351

Crankshaft Thrust Washer

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530026418

Crankshaft & Rod Ass'y.

$

$

Not available

56

Poulan 530015162

Wrist Pin Retainer

$6.49

$

In Stock, only 1 left!

0

57

Poulan 530026413

Piston Ring

$

$

Not available

58

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

59

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530003933

Spark Plug Connector
(Superseded to 507475326)

$

$

Not available

61

Poulan 530003934

Spark Plug Boot

$

$

Not available

62

Poulan 530039103

High Tension Lead Ass'y. (Inc.41,60 & 61)

$

$

Not available

63

Poulan 530015674

Carburetor Screw

$1.99

$

Usually ships in 3-10 days

0

64

Poulan 530015235

Screw

$

$

Not available

65

Poulan 530027100

Carburetor Case Cover

$

$

Not available

66

Poulan 530015741

Wave Washer

$2.49

$

Usually ships in 3-10 days

0

67

Poulan 530027189

Carburetor Case Ass'y.

$

$

Not available

68

Poulan 530019108

Carburetor Case/Crankcase Gasket

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 530024438

Reed Valve

$

$

Not available

70

Poulan 530023367

Reed Valve Washer

$

$

Not available

71

Poulan 530015241

Reed Valve Screw

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530015673

Spacer

$3.99

$

Usually ships in 3-10 days

0

73

Poulan 530010753

Piston Kit (Inc.56,57,Pin)

$

$

Not available

74

Poulan 530012168

Cylinder
(Superseded to 530012349)

$

$

Not available

75

Poulan 530026735

Starter Handle
(Superseded to 530027569)

$6.49

$

Usually ships in 3-10 days

0

76

Poulan 530024903

Muffler Attachment Spring
(Superseded to 530036409)

$

$

Not available

77

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

78

Poulan 530069243

Muffler Ass'y.

$

$

Not available

81

Poulan 530093925

Drive Adaptor

$4.99

$

Usually ships in 3-10 days

0

82

Poulan 530015723

Screw

$

$

Not available

83

Poulan 530025342

Throttle Trigger

$

$

Not available

84

Poulan 530015382

Throttle Washer

$

$

Not available

85

Poulan 530015407

Screw

$

$

Not available

87

Poulan 530025704

Handle

$

$

Not available

88

Poulan 530015163

Screw

$2.49

$

Usually ships in 3-10 days

0

89

Poulan 530015609

Screw

$2.49

$

Usually ships in 3-10 days

0

91

Poulan 530026560

Shroud Clamp

$2.49

$

Usually ships in 3-10 days

0

93

Poulan 530015610

Nut

$0.99

$

Usually ships in 3-10 days

0

94

Poulan 530027007

Shroud

$25.99

$

Usually ships in 3-10 days

0

95

Poulan 530069219

Engine Gasket Kit

$

$

Not available

A

Poulan 530027312

Starting Instructions Decal

$

$

Not available

B

Poulan 530027638

Choke/Off Decal

$

$

Not available

Poulan 530027672

Shroud Decal (Right)

Note: Not Shown.

$

$

Not available

Poulan 530027673

Shroud Decal (Left)

Note: Not Shown.

$

$

Not available
