YP 110 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

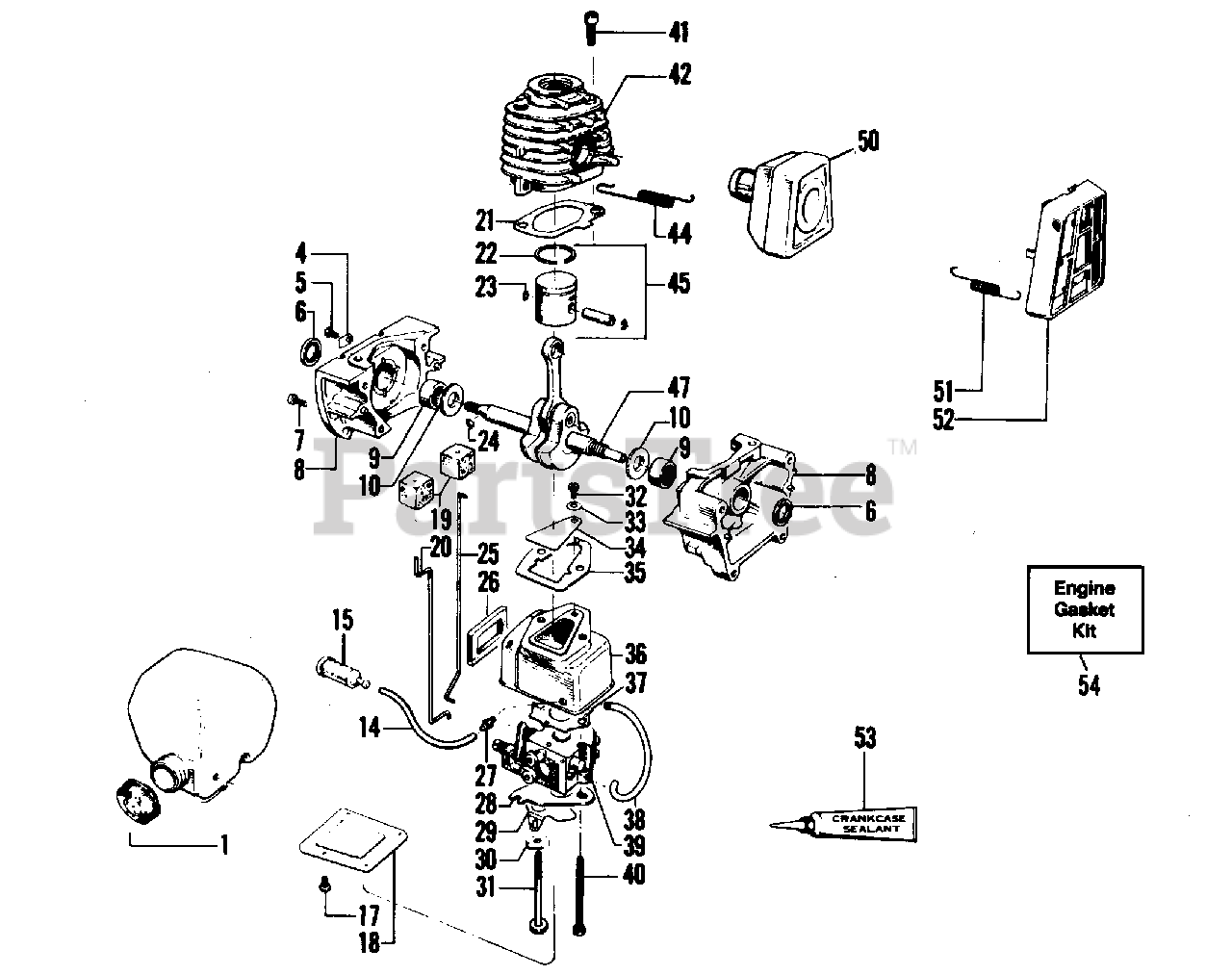

POWER UNIT Parts Diagram

  • Title

1

Poulan 530010729

Fuel Cap Ass'y (Incl. O-Ring)
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

4

Poulan 530024651

Clamp - Choke Wire

$

$

Not available

5

Poulan 530015004

Screw - Choke Rod Clamp (Pan. Hd. 8 - 32 x 5/16)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530019059

Seal - Crankcase

Note: Included in Engine Gasket Kit.

$

$

Not available

7

Poulan 530015369

Screw - Crankcase (Fil. Hd. 10 - 24 x 5/8)

$

$

Not available

8

Poulan 530010757

Crankcase Ass'y. (Incl. 6, 9 & Qty. 1 of #7)

$

$

Not available

9

Poulan 530032029

Bearing - Crankcase

$10.99

$

In Stock, only 2 left!

0

10

Poulan 530015351

Washer - Thrust - Crankcase

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530010776

Fuel Tank Ass'y. (Incl. 3, 14, 15, 16 & 27)

$

$

Not available

14

Poulan 530021042

Fuel Line - Type 1

$

$

Not available

14

Poulan 530069247

Line Kit - Type 2

$7.99

$

In Stock, Qty 20+

0

15

Poulan 530091878

Type 1

$

$

Not available

15

Poulan 530010897

Type 2
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

17

Poulan 530015235

Screw - Carburetor Case Cover (Pan Hd. 8 - 18 x 9/16)

$

$

Not available

18

Poulan 530026029

Cover Carburetor Case

$

$

Not available

19

Poulan 530023373

Boot - Throttle - Choke Wire

Note: Included in Engine Gasket Kit.

$

$

Not available

20

Poulan 530026236

Choke Wire

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

22

Poulan 530026413

Ring - Piston

$

$

Not available

23

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 2 left!

0

24

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530024902

Throttle Wire

$

$

Not available

26

Poulan 530019105

Seal - Carburetor Case

Note: Included in Engine Gasket Kit.

$

$

Not available

27

Poulan 530025472

Type 1

$3.49

$

Usually ships in 3-10 days

0

27

Poulan 530026981

Type 2

$6.49

$

In Stock, Qty 7

0

28

Poulan 530026237

Choke Wire Guide Plate

$

$

Not available

29

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015254

Washer - Wave

$3.99

$

In Stock, only 2 left!

0

31

Poulan 530015404

Screw - Carburetor Shoulder (Fil. Hd. 10 - 24 x 2 1/8)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530015241

Screw - Reed Valve (Pan. Hd. 6 - 19 x 5/16)

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530023367

Washer - Reed Valve Screw (Flat No. 6)

$

$

Not available

34

Poulan 530024438

Reed Valve

$

$

Not available

35

Poulan 530019108

Gasket - Carburetor Case to Crankcase

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530024409

Carburetor Housing

$

$

Not available

37

Poulan 530019115

Gasket - Carburetor

Note: Included in Engine Gasket Kit.

$

$

Not available

38

Poulan 530069238

Line Kit

$

$

Not available

39

Poulan 530035183

Carburetor - WA - 149 (see pg. 4 for assembly)

$

$

Not available

40

Poulan 530015379

Screw - Carburetor (Fil. Hd. 10 - 24 x 1 -7/8)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530015239

Screw - Cylinder (Soc. Hd. 1/4 - 20 x 3/4)

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530012095

Type 1

$

$

Not available

42

Poulan 530012168

Type 2
(Superseded to 530012349)

$

$

Not available

44

Poulan 530024903

Spring - Muffler Detachment
(Superseded to 530036409)

$

$

Not available

45

Poulan 530010753

Piston Kit (Incl. 22,23)

$

$

Not available

47

Poulan 530026418

Crankshaft & Rod Ass'y.

$

$

Not available

51

Poulan 530024932

Spring - Muffler Guard

$

$

Not available

52

Poulan 530024855

Guard - Muffler

$7.49

$

Usually ships in 3-10 days

0

53

Poulan 530030054

Sealant - Crankcase

$

$

Not available

54

Poulan 530069219

Engine Gasket Kit

$

$

Not available
