YMGBV 3100 (41BSGBPG901) - Yard-Man Blower Vacuum Housing Parts Diagram

Blower Vacuum

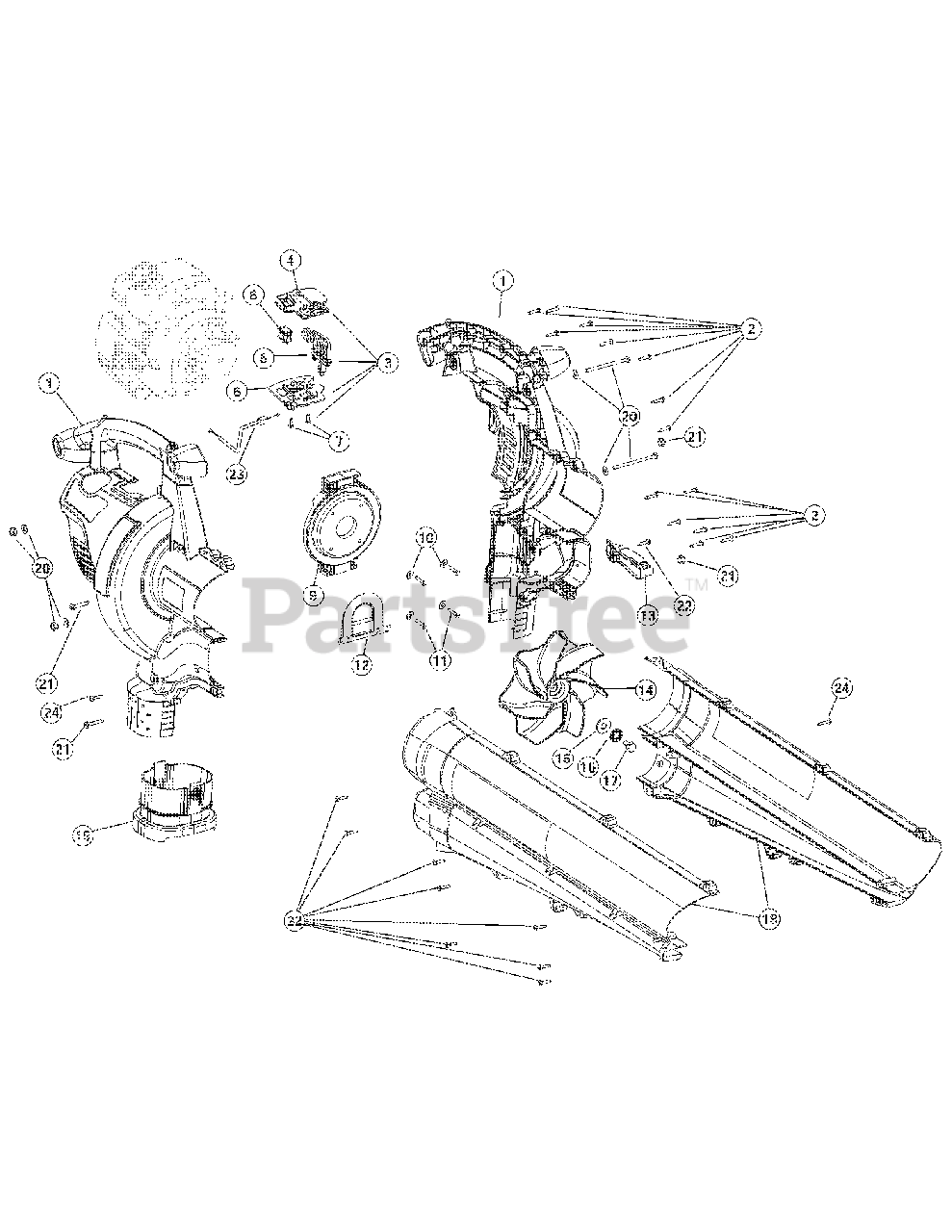

Housing Parts Diagram

  • Title

1

MTD 753-04753

Engine Cover Assembly (includes 2)

$

$

Not available

2

MTD 753-04595

Cover Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

3

MTD 791-182419

Throttle Control Assembly (includes 4-7)
(Superseded to 753-05013A)

$

$

Not available

4

MTD 791-182420

Upper Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

5

MTD 791-182728

Throttle Control Lever
(Superseded to 791-00048)

$11.99

$

Usually ships in 3-6 days

0

6

MTD 791-182422

Lower Throttle Control Plate
(Superseded to 753-05013A)

$

$

Not available

7

MTD 791-182423

Screw, Plastic

$

$

Not available

8

MTD 791-182405

Rocker Switch Assembly

$10.99

$

In Stock, Qty 12

0

9

MTD 753-04483

Engine Mounting Plate (includes 10 & 11)

$

$

Not available

10

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

11

MTD 791-181903

Screw

$

$

Not available

12

MTD 791-182410

Mode Control Flapper

$9.99

$

Usually ships in 3-6 days

0

13

MTD 791-00050

Mode Control Lever (includes 22)

$

$

Not available

14

MTD 753-04596

Impeller Blade
(Superseded to 731-04275)

$35.99

$

In Stock, Qty 5

0

15

MTD 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

16

MTD 753-04834

Lock Washer
(Superseded to 736-04110A)

$5.49

$

Usually ships in 3-6 days

0

17

MTD 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

18

MTD 791-00051

Blower/Vac Tube Assembly (includes 22)

$61.99

$

Usually ships in 3-6 days

0

19

MTD 791-182417

Vacumm Bag Adapter

$18.99

$

Usually ships in 3-6 days

0

20

MTD 791-182424

Mounting Plate Hardware

$

$

Not available

21

MTD 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

22

MTD 791-181482

Screw

$4.49

$

Usually ships in 3-6 days

0

23

MTD 791-00049

Throttle Cable

$

$

Not available

24

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

MTD 791-612930

Cable Tie (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

MTD 753-04465

Vacuum Bag Assembly (Not Shown) (incl 19, Vacuum Bag & Cable Tie)

$72.99

$

In Stock, only 1 left!

0

MTD 753-04325

Patio Head (Not Shown)

$61.99

$

Usually ships in 3-6 days

0
