YMESV 1300 (41ABESPG901) - Yard-Man Blower Vacuum, Electric General Assembly Parts Diagram

Blower Vacuum, Electric

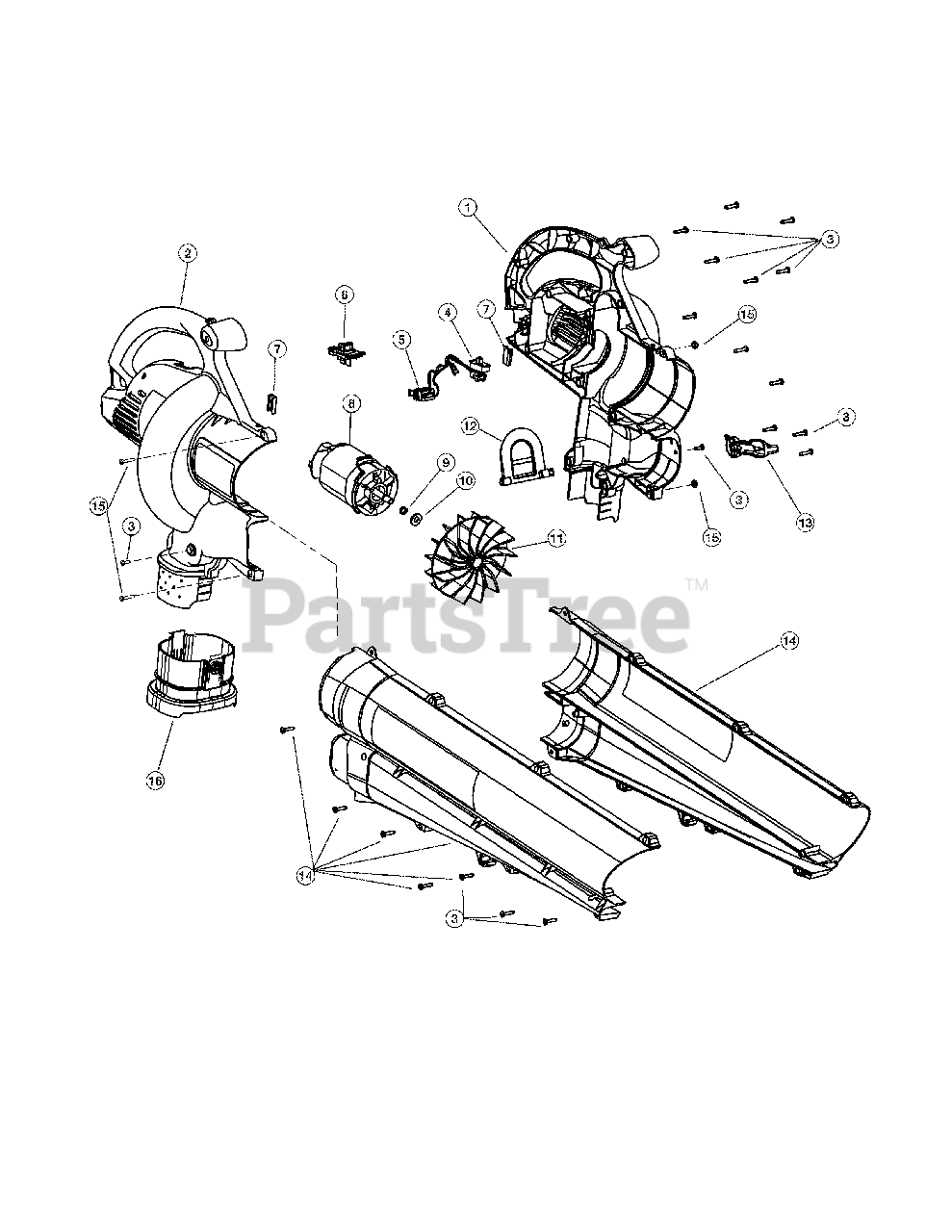

General Assembly Parts Diagram

  • Title

1

MTD 753-04835

Left Motor Housing

$30.99

$

Usually ships in 3-6 days

0

2

MTD 753-04836

Right Motor Housing

$29.99

$

Usually ships in 3-6 days

0

3

MTD 791-181482

Housing Screw

$4.49

$

Usually ships in 3-6 days

0

4

MTD 791-182546

Switch Assembly

$

$

Not available

5

MTD 791-182547

Power Connection Wire Assembly

$15.99

$

Usually ships in 3-6 days

0

6

MTD 791-180509

Switch Lever

$

$

Not available

7

MTD 791-180503

Rubber Cushion

$

$

Not available

8

MTD 791-182548

Motor Assembly

$

$

Not available

9

MTD 791-182549

Spacer

$

$

Not available

10

MTD 791-180505

Washer

$

$

Not available

11

MTD 791-182550

Impeller

$41.99

$

In Stock, Qty 6

0

12

MTD 791-182410

Mode Control Flapper

$9.99

$

Usually ships in 3-6 days

0

13

MTD 791-182411

Mode Control Lever (includes 3)

$8.99

$

Usually ships in 3-6 days

0

14

MTD 791-00051

Blower/Vac Tube Assembly (includes 3)

$61.99

$

Usually ships in 3-6 days

0

15

MTD 791-182425

Blower/Vac Tube Mounting Hardware

$

$

Not available

16

MTD 791-182417

Vacuum Bag Adapter

$18.99

$

Usually ships in 3-6 days

0

MTD 791-612930

Cable Tie NOT SHOWN

$10.99

$

Usually ships in 3-6 days

0

MTD 791-182416

Vacuum Bag Assembly (includes 16, Vacuum Bag & Cable Tie) NOT SHOWN
(Superseded to 753-04465)

$72.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Harness NOT SHOWN

$38.99

$

Usually ships in 3-6 days

0

MTD 753-04325

Patio Head NOT SHOWN

$61.99

$

Usually ships in 3-6 days

0
