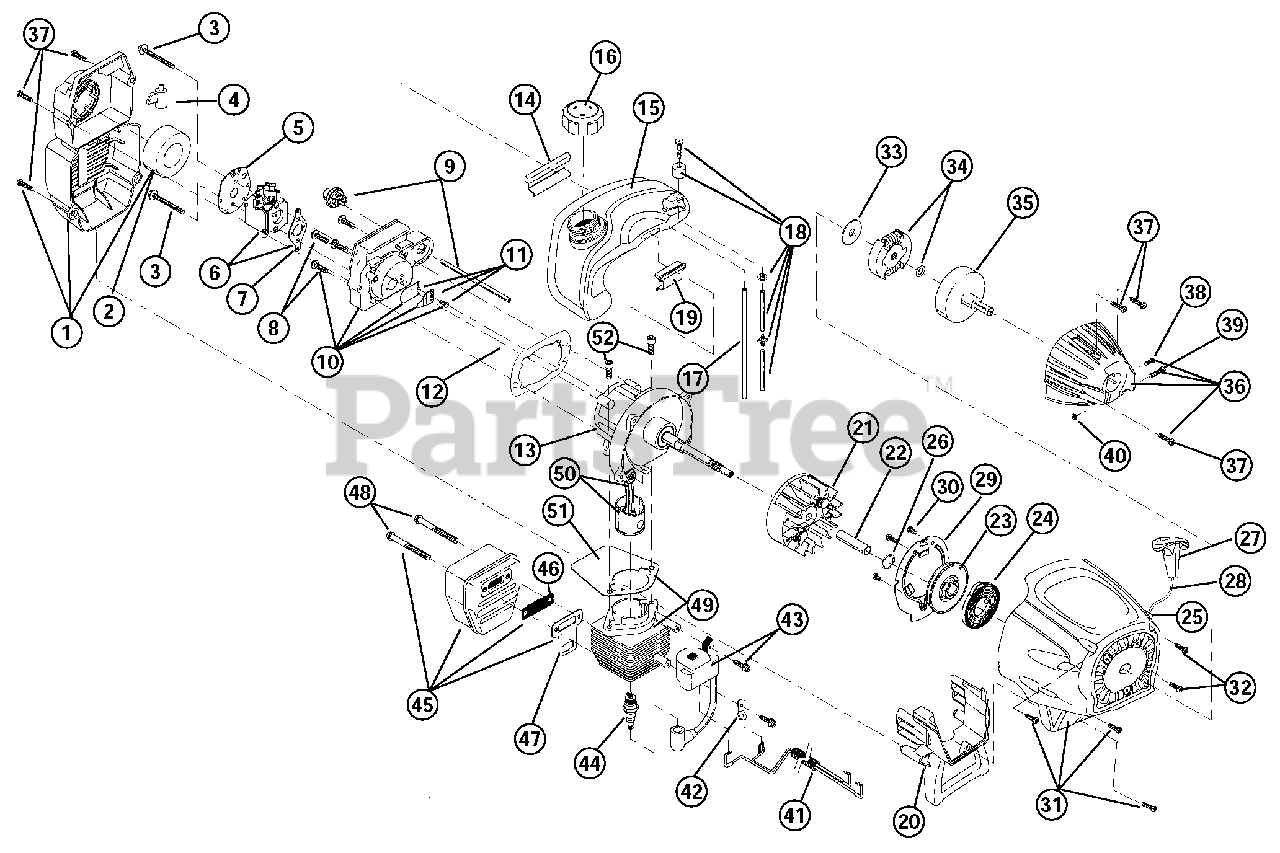

YM 90 (41ADY90C401) - Yard-Man String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-1192

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 41)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-04227

Choke Extension

$

$

Not available

5

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

MTD 753-04338

Carburetor Assembly

Note: (includes 7 & 18)

$96.99

$

In Stock, only 3 left!

0

7

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 17

0

10

MTD 791-182063

Carb Mount Assembly
(Superseded to 753-1196)

Note: (includes 8 & 11)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 753-04332

Crank Case Service Assembly

Note: (includes 10)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04307

Fuel Tank Assembly

Note: (includes 16-18)

$

$

Not available

16

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

17

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 19

0

18

MTD 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 12

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

21

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

MTD 791-181065

Spacer

$

$

Not available

23

MTD 753-1199

Recoil Pulley Assembly

$24.99

$

In Stock, only 4 left!

0

24

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

25

MTD 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

26

MTD 753-04288

Pulley Retainer

$10.99

$

Usually ships in 3-6 days

0

27

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

28

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

MTD 753-1201

Pressure Plate Assembly
(Superseded to 753-04417)

$

$

Not available

30

7531202

Plate Screw

$

$

Not available

31

MTD 753-04335

Starter Housing Assembly

Note: (includes 23-30 & 32)

$

$

Not available

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

34

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 6

0

35

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

MTD 753-1204

Clutch Cover Assembly

Note: (includes 41-44)

$

$

Not available

37

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

39

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

40

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

41

MTD 791-182798

Wire Leads and Sleeve

$

$

Not available

42

MTD 791-611063

Ground Tab

$

$

Not available

43

MTD 753-04337

Module Assembly

$

$

Not available

44

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

45

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 47-49)

$112.99

$

Usually ships in 3-6 days

0

46

MTD 791-182747

Spark Arrestor Screen

$

$

Not available

47

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 3 left!

0

48

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

49

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 52)

$83.99

$

In Stock, only 1 left!

0

50

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

51

MTD 753-1197

Cylinder Gasket

$

$

Not available

52

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

MTD 791-180090

O.E.M. Carburetor Repair Kit (Zama)

$60.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit (Zama)

Note: Item not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set

Note: Item not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04334

Short Block Assembly

Note: (includes 8, 12, 14, 22, 48, 51-56); Item not shown

$224.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: Item not shown

$11.99

$

Usually ships in 3-6 days

0

MTD 753-04134

Eng Gasket Kit

Note: Item not shown

$

$

Not available
