YM 75 (41ADY75C401) - Yard-Man String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

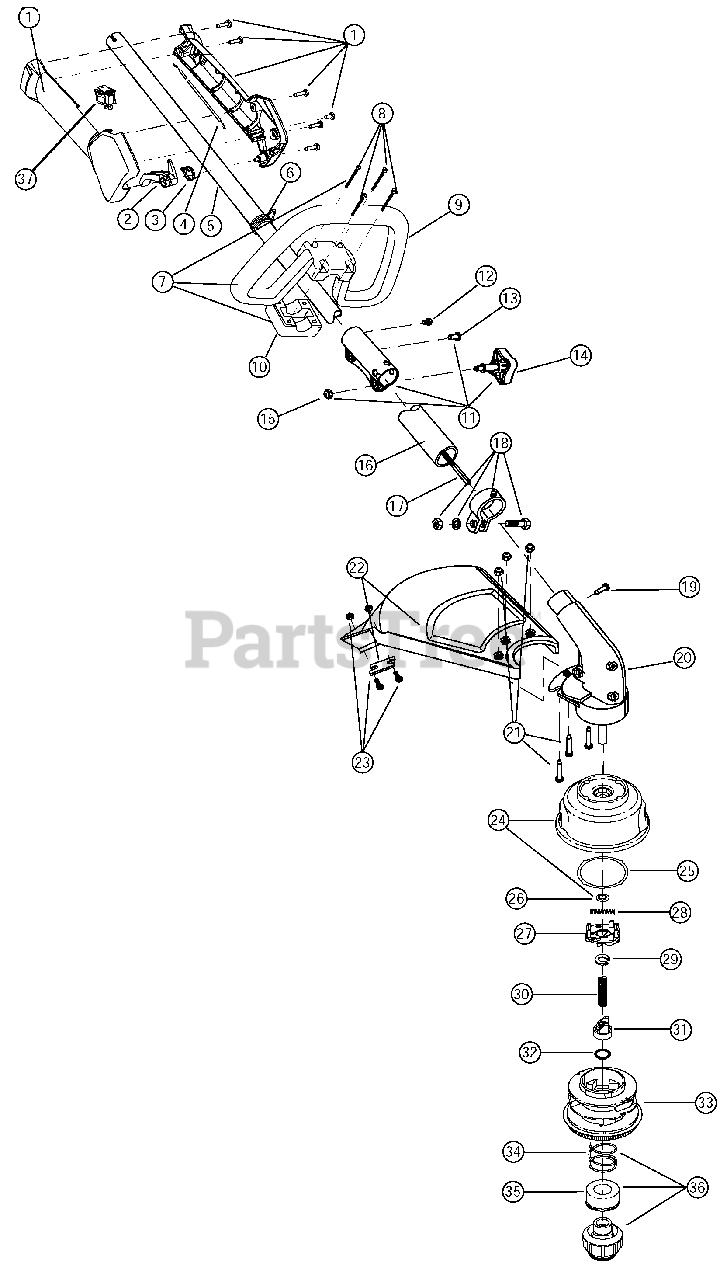

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-00057

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-00058

Throttle Trigger
(Superseded to 753-06754)

$7.49

$

In Stock, only 1 left!

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182877

Throttle Cable Assembly

$16.99

$

Usually ships in 3-6 days

0

5

MTD 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

6

MTD 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (includes 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

MTD 791-182928

EZ-Link(TM) Coupler

Note: (includes 12-15)

$

$

Not available

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

13

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

14

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

15

MTD 791-181886

Nut

$3.49

$

In Stock, only 4 left!

0

16

MTD 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

17

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

18

MTD 791-153597

Lower Clamp Assembly

Note: (includes 19)

$

$

Not available

19

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

20

MTD 791-181566

Gear Box Assembly

$

$

Not available

21

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

22

MTD 791-180548

Shield and Blade Assembly

$

$

Not available

23

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

24

MTD 791-181457

Outer Spool and Eyelet Assembly w/ Retainer

$39.99

$

In Stock, only 1 left!

0

25

MTD 791-181458

Retainer

$4.49

$

In Stock, Qty 11

0

26

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

27

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

28

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

29

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

30

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

31

MTD 791-181462

Plunger

$

$

Not available

32

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

33

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

34

MTD 791-181465

Large Spring

$

$

Currently unavailable

35

MTD 791-181467

Foam Seal

$

$

Not available

36

MTD 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (includes 34 & 35)

$

$

Not available

37

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessory; Item not shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Item not shown

$38.99

$

Usually ships in 3-6 days

0
