YM 4520 (41AD452C755) - Yard-Man String Trimmer (Walmart) General Assembly Parts Diagram

String Trimmer

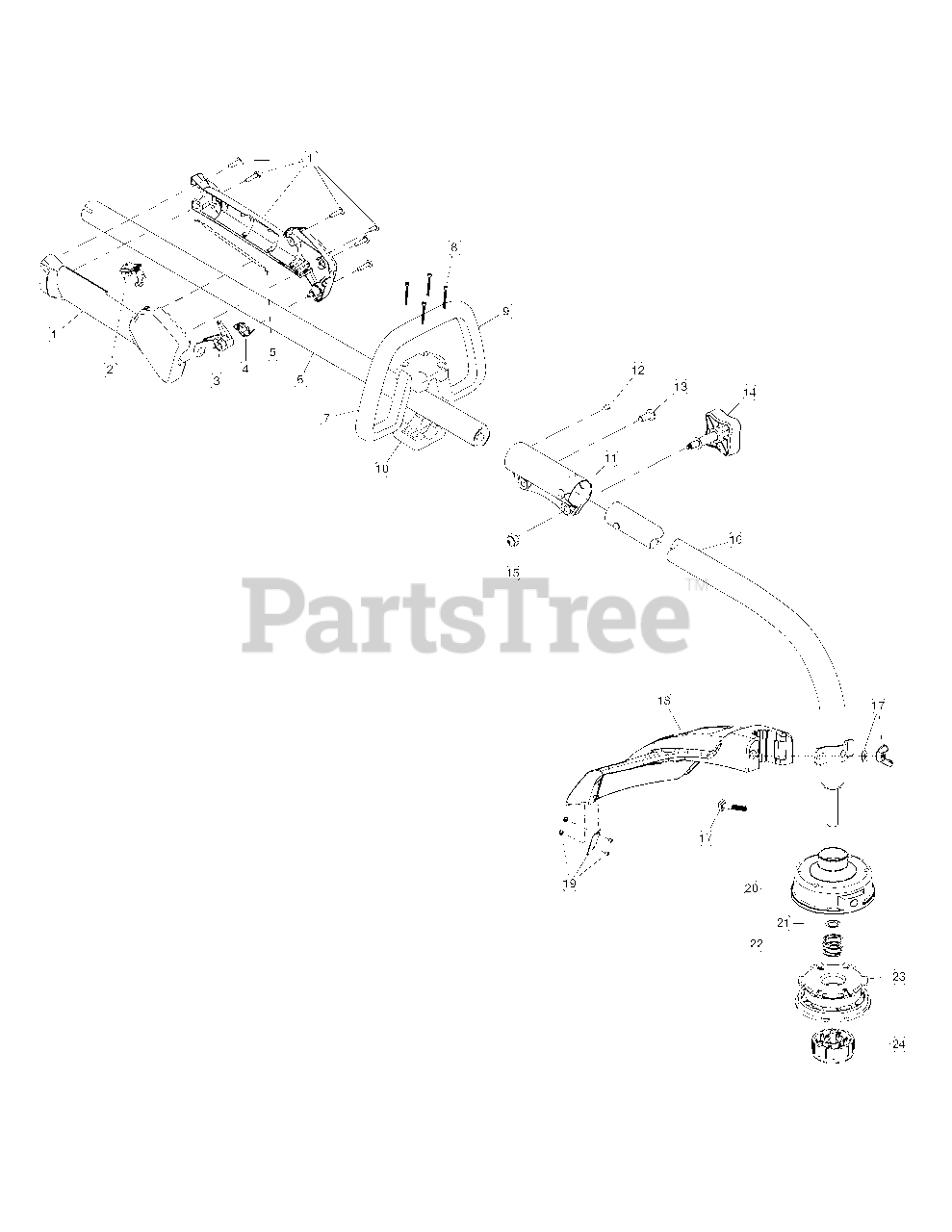

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-05266

Throttle Cable

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

7

MTD 791-180869

Deluxe D-Handle Assembly (Incl. Ref No. 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

MTD 753-1190

Split Boom Coupler (Incl. Ref No. 12-15)

$23.99

$

In Stock, only 1 left!

0

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

13

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

14

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

15

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

16

MTD 753-04508

Lower Drive Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

17

MTD 753-04282

Guard Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

18

MTD 753-04283

Guard (Incl. Ref No. 19)

$50.99

$

In Stock, only 1 left!

0

19

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

20

MTD 753-04284

Outer Spool Assembly (Incl. Ref No. 21)

$28.99

$

In Stock, only 1 left!

0

21

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

22

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 8

0

23

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

24

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 953-1156

Reel and Line Assembly

Note: Not shown

$31.99

$

In Stock, only 1 left!

0

MTD 753-05778

Fixed Line Insert

Note: Not shown

$7.99

$

Usually ships in 3-6 days

0
