YM 45 BP (41AR4BPG755) - Yard-Man Backpack Blower Engine Assembly Parts Diagram

Backpack Blower

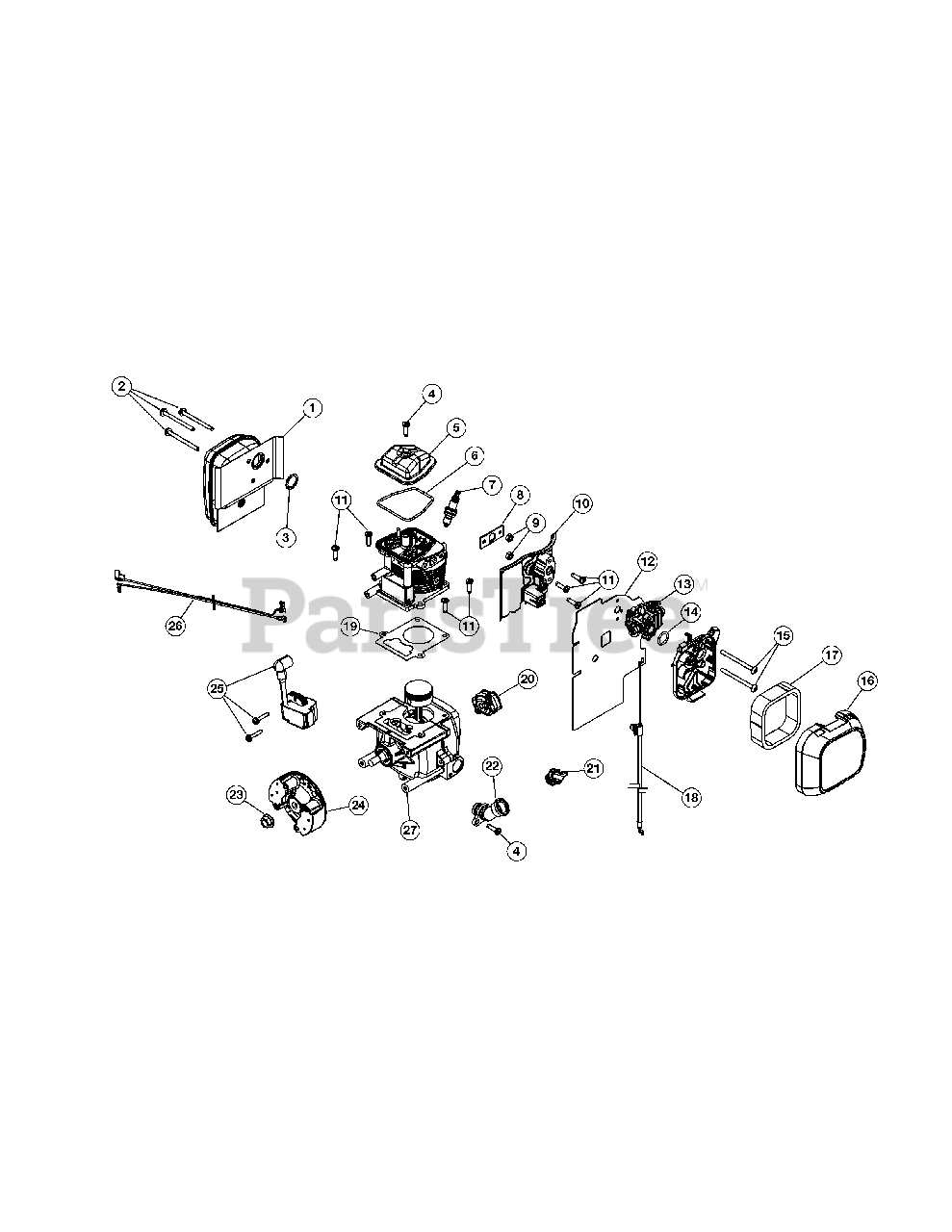

Engine Assembly Parts Diagram

  • Title
1

MTD 753-05669

Muffler Assembly (Incl. Ref No. 2 & 3)

$43.99

$

In Stock, only 1 left!

0

2

MTD 791-182361

Muffler Screw

$

$

Not available

3

MTD 753-05670

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

4

$2.99

$

Usually ships in 3-6 days

0

5

MTD 753-05671

Rocker Cover

$13.99

$

Usually ships in 3-6 days

0

6

MTD 753-05672

Rocker Cover O-Ring

$10.99

$

In Stock, only 1 left!

0

7

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

8

MTD 753-05673

Insulator Gasket

$10.99

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

10

MTD 753-05674

Insulator

$15.99

$

Usually ships in 3-6 days

0

11

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

12

MTD 753-05675

Carburetor Gasket

$17.99

$

In Stock, only 1 left!

0

13

MTD 753-05676

Carburetor
(Superseded to 753-05676A)

$

$

Not available

14

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

15

$5.49

$

In Stock, Qty 20+

0

16

MTD 753-05852

Air Cleaner Assembly (Incl. Ref No. 16)

$25.99

$

In Stock, only 1 left!

0

17

MTD 753-05677

Air Filter

$4.49

$

Usually ships in 3-6 days

0

18

MTD 753-05970

Throttle Cable

$16.99

$

Usually ships in 3-6 days

0

19

MTD 753-05681

Cylinder Gasket

$10.99

$

Usually ships in 3-6 days

0

20

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, only 3 left!

0

21

MTD 753-05400

Oil Plug
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

22

MTD 753-05682

Oil Fill Tube (Incl. Ref No. 4)

$10.99

$

In Stock, only 1 left!

0

23

$6.99

$

Usually ships in 3-6 days

0

24

MTD 753-05688

Flywheel Asssembly

$45.99

$

Usually ships in 3-6 days

0

25

MTD 753-06003

Module Assembly

$42.99

$

Usually ships in 3-6 days

0

26

MTD 753-05690

Lead Wire

$19.99

$

Usually ships in 3-6 days

0

27

MTD 753-06367

Short Block Assembly
(Superseded to 753-08026)

Note: (Incl. Ref No. 4-7, 11, 19, 21 & 22)

$146.99

$

In Stock, only 1 left!

0
