YM 400 (41ADY40G755) - Yard-Man String Trimmer (Walmart) Boom And Trimmer Parts Parts Diagram

String Trimmer

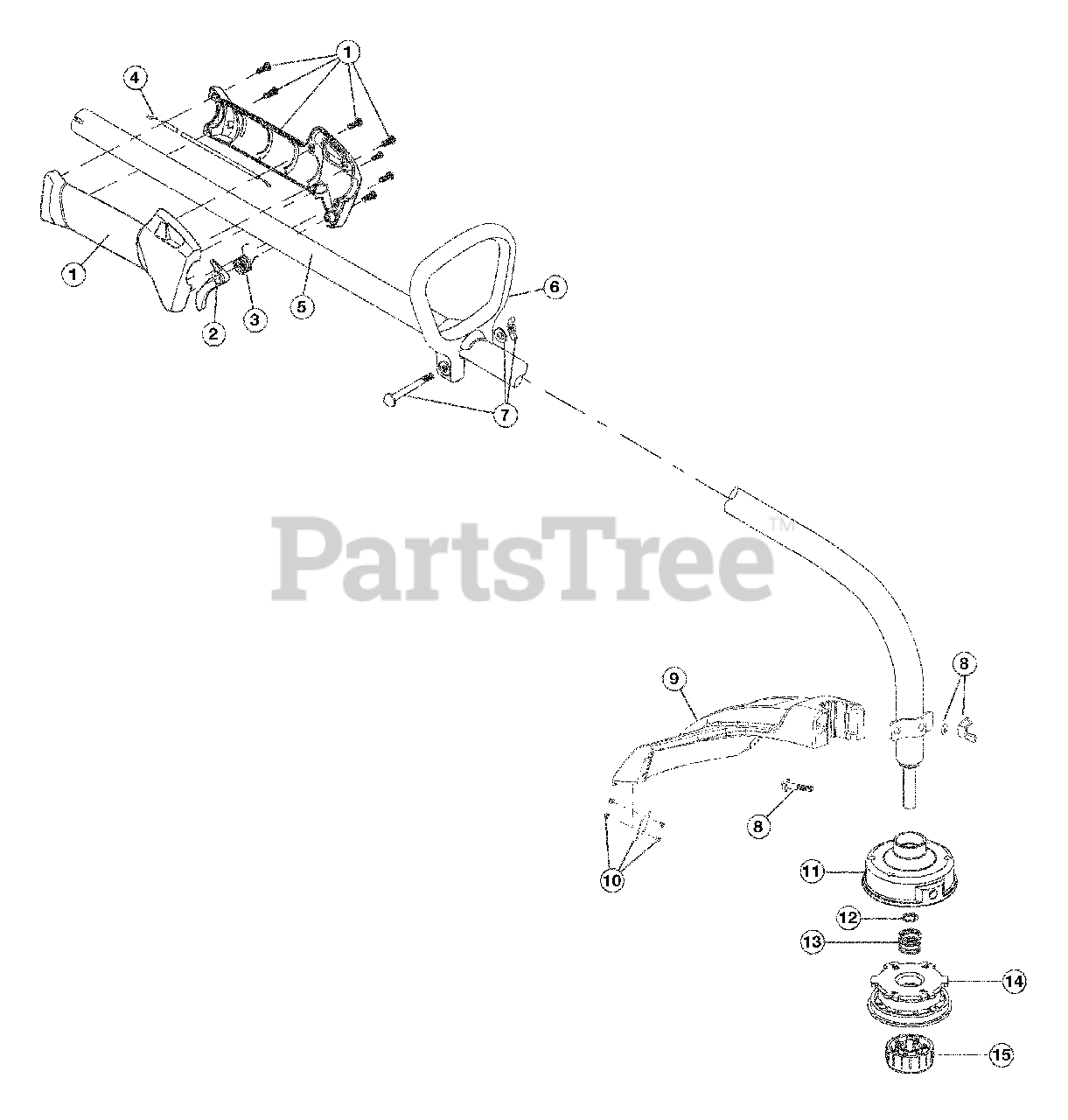

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04114

Throttle Housing Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 753-04295

Throttle Trigger

$

$

Not available

4

MTD 791-102068

Throttle Cable

$

$

Currently unavailable

5

MTD 753-04366

Drive Shaft Housing Assembly

$

$

Not available

6

MTD 791-153064

D-Handle

Note: (includes 7)

$

$

Not available

7

MTD 791-153317

Handle Hardware
(Superseded to 791-181587)

$19.99

$

In Stock, only 1 left!

0

8

MTD 753-04282

Guard Mounting Hardware

$25.99

$

Usually ships in 3-6 days

0

9

MTD 753-04283

Guard

Note: (includes 10)

$50.99

$

In Stock, only 1 left!

0

10

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

11

MTD 753-04284

Outer Spool Assembly

Note: (includes 12)

$28.99

$

In Stock, only 1 left!

0

12

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

13

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 6

0

14

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

15

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 19

0

MTD 791-153577B

Reel and Line Assembly

Note: Item Not Shown

$28.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Item Not Shown

$38.99

$

Usually ships in 3-6 days

0
