YM 290 (41AR290G701) - Yard-Man Blower Impeller Housing Parts Diagram

Blower

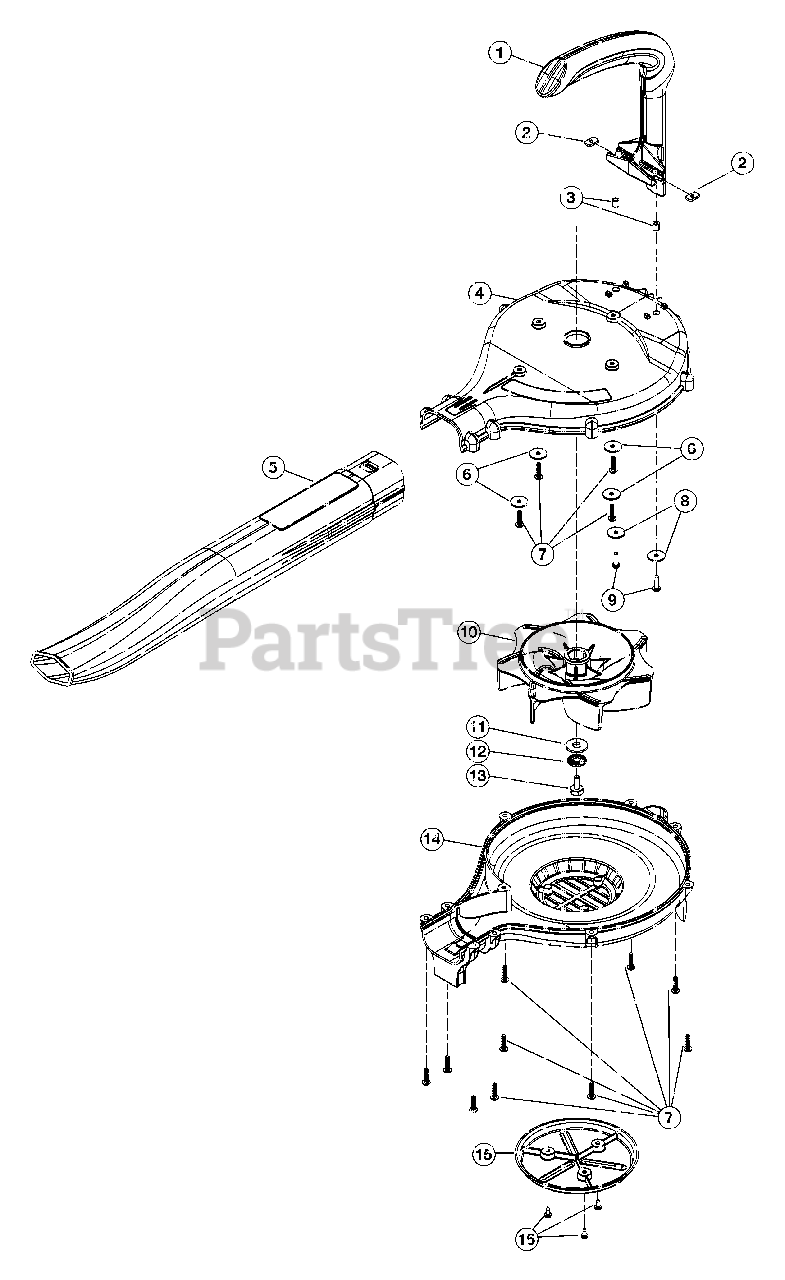

Impeller Housing Parts Diagram

  • Title

1

MTD 753-04591

Blower Handle
(Superseded to 731-04452)

$32.99

$

Usually ships in 3-6 days

0

2

MTD 753-04186

Weldnut

$

$

Not available

3

MTD 753-04592

Spacer
(Superseded to 797-00015)

$3.49

$

Usually ships in 3-6 days

0

4

MTD 753-04593

Upper Impeller Housing

$

$

Not available

5

MTD 753-04594

Blower Tube
(Superseded to 731-04444)

$30.99

$

Usually ships in 3-6 days

0

6

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

7

MTD 753-04595

Housing Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

8

MTD 791-181904

Handle Washer

$

$

Not available

9

MTD 791-683606

Handle Screw

$

$

Not available

10

MTD 753-04596

Impeller
(Superseded to 731-04275)

$35.99

$

In Stock, only 4 left!

0

11

MTD 753-04597

Washer
(Superseded to 736-04117)

$3.49

$

In Stock, Qty 20+

0

12

MTD 753-04598

Lock Washer
(Superseded to 736-04118)

$

$

Not available

13

MTD 753-04599

Bolt
(Superseded to 710-04218)

$2.99

$

Usually ships in 3-6 days

0

14

MTD 753-04600

Lower Impeller Housing
(Superseded to 731-04441)

$

$

Not available

15

MTD 753-04601

Intake Deflector

$

$

Not available

16

MTD 791-182474

Deflector Screw
(Superseded to 3661)

$7.49

$

Usually ships in 3-6 days

0
