YM 26 SS (41AD26SC901) - Yard-Man String Trimmer Boom & Trimmer 1 Parts Diagram

String Trimmer

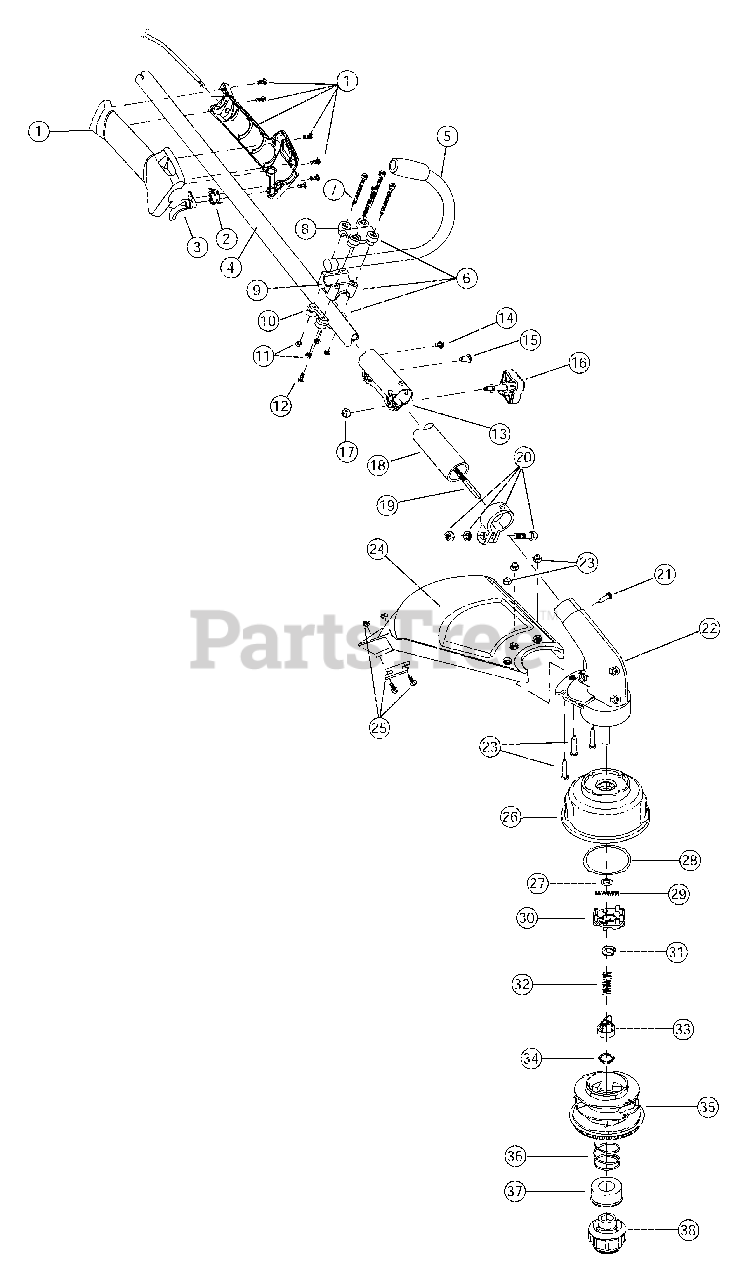

Boom & Trimmer 1 Parts Diagram

  • Title

1

MTD 753-04294

Throttle Housing Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.99

$

Usually ships in 3-6 days

0

3

MTD 753-04295

Throttle Trigger

$

$

Not available

4

MTD 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

5

MTD 791-180687

J-Handle Assembly

$41.99

$

Usually ships in 3-6 days

0

6

MTD 791-683295

Handle Bracket Assembly

Note: (includes 7-12)

$45.99

$

Usually ships in 3-6 days

0

7

MTD 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

8

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

9

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

10

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

11

MTD 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

12

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

MTD 791-182928

Split Boom Coupler

Note: (includes 14-17)

$

$

Not available

14

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

15

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

16

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

Note: (Includes 17)

$

$

Not available

17

MTD 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

18

MTD 791-182388

Lower Drive Shaft Housing Assembly

Note: (Includes 19-21)

$

$

Not available

19

MTD 791-181166

Lower Flexible Drive Shaft

$28.99

$

Usually ships in 3-6 days

0

20

MTD 791-153597

Lower Clamp Assembly

Note: (includes 21)

$

$

Not available

21

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

22

MTD 791-181470

Gearbox Assembly

Note: (includes 26-38)

$

$

Not available

23

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

24

MTD 791-180548

Shield Assembly

Note: (includes 25)

$

$

Not available

25

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

26

MTD 791-181457

Outer Spool Assembly

Note: (includes 27)

$39.99

$

In Stock, only 1 left!

0

27

MTD 791-181458

Retainer

$4.49

$

In Stock, Qty 11

0

28

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

29

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

30

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

31

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

32

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

33

MTD 791-181462

Plunger

$

$

Not available

34

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

35

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

36

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

37

MTD 791-181467

Foam Seal

$

$

Not available

38

MTD 791-181468

Bump Head Knob Assembly
(Superseded to 791-181468B)

Note: (Includes 36 & 37)

$

$

Not available

MTD 791-181472

Replacement Line, 0.80 Diameter (Eight - 10 ft lengths)
(Superseded to 791-181460B)

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181460B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0
