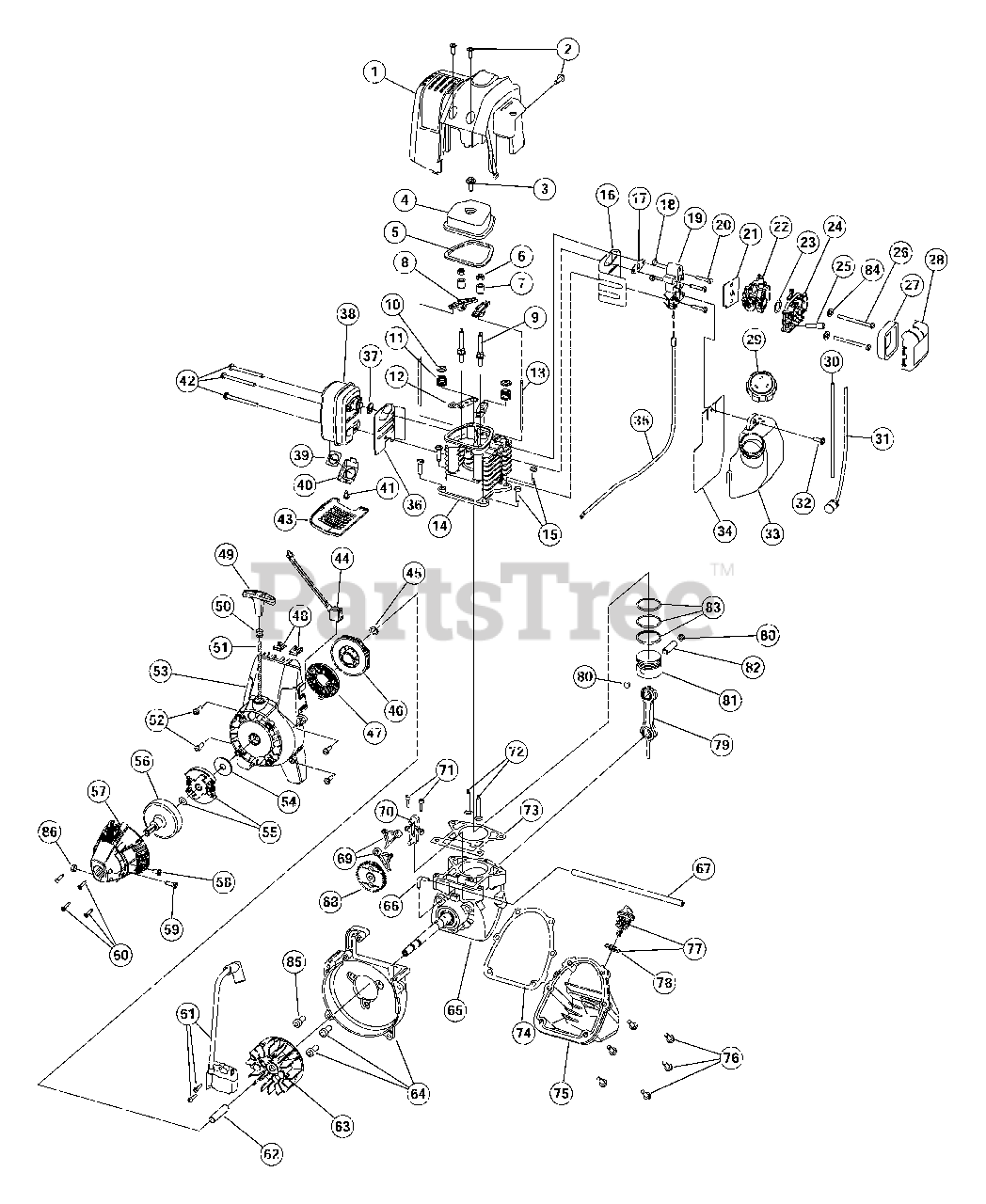

YM 26 CS (41AD26CC901) - Yard-Man String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

MTD 753-1222

Engine Cover

$

$

Not available

2

MTD 791-182339

Engine Cover Screws
(Superseded to 753-04994)

$6.99

$

In Stock, only 1 left!

0

3

MTD 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

4

MTD 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

5

MTD 791-182099

Valve Cover Gasket

$9.99

$

Usually ships in 3-6 days

0

6

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

7

MTD 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

8

MTD 791-182100

Rocker Arm

$

$

Not available

9

MTD 791-182341

Rocker Arm Stud

$

$

Not available

10

MTD 791-182103

Valve Spring Retainer

$

$

Not available

11

MTD 791-181038

Valve Spring

$

$

Not available

12

MTD 791-182102

Push Rod Guide

$

$

Not available

13

MTD 791-181033

Push Rod

$

$

Not available

14

MTD 791-182745

Cylinder Head
(Superseded to 753-04816)

Note: (includes 9-12)

$

$

Not available

15

MTD 791-182344

Cylinder Screw
(Superseded to 791-181003)

$

$

Not available

16

MTD 753-1226

Intake Baffle

$

$

Not available

17

MTD 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

18

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

19

MTD 791-182347

Carburetor Mount

Note: (includes 18)

$19.99

$

Usually ships in 3-6 days

0

20

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

21

MTD 791-182732

Carburetor Gasket

$

$

Not available

22

MTD 753-1225

Carburetor with Primer

$71.99

$

In Stock, Qty 13

0

23

MTD 791-181751

O-Ring, Carburetor

$4.49

$

In Stock, Qty 19

0

24

MTD 791-182350

Air Filter Assembly
(Superseded to 753-04223)

Note: (includes 27 & 28)

$30.99

$

Usually ships in 3-6 days

0

25

MTD 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

26

MTD 791-181750

Air Filter Mounting Screw

$6.49

$

Usually ships in 3-6 days

0

27

MTD 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

28

MTD 791-182351

Air Filter Cover
(Superseded to 753-04223)

$30.99

$

Usually ships in 3-6 days

0

29

MTD 791-182271

Fuel Cap

$21.99

$

Usually ships in 3-6 days

0

30

MTD 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 19

0

31

MTD 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, Qty 9

0

32

MTD 753-04510

Screw
(Superseded to 710-04185)

$

$

Not available

33

MTD 791-182355

Fuel Tank Assembly

$

$

Not available

34

MTD 791-182356

Fuel Tank Shield

$

$

Not available

35

MTD 753-1231

Throttle Cable

$17.99

$

In Stock, only 1 left!

0

36

MTD 753-1232

Muffler Baffle

$10.99

$

Usually ships in 3-6 days

0

37

MTD 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

38

MTD 791-182359

Muffler

Note: (includes 37 & 39-41)

$

$

Not available

39

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

40

MTD 791-181045

Screen Cover

$

$

Not available

41

MTD 791-181046

Screw

$

$

Not available

42

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

43

MTD 753-04092

Muffler Cover

$

$

Not available

44

MTD 791-182365

Switch with Wires

$

$

Not available

45

MTD 791-181247

Pulley Retainer
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

46

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

47

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

48

MTD 791-182366

Nut Clip

$5.99

$

In Stock, only 1 left!

0

49

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

50

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

51

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

52

MTD 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

53

MTD 753-04127

Starter Housing Assembly
(Superseded to 753-05314)

Note: (includes 45-52)

$

$

Not available

54

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

55

MTD 753-1238

Clutch with Spacer

$45.99

$

In Stock, Qty 13

0

56

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

57

MTD 753-1239

Clutch Cover

$

$

Not available

58

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

59

MTD 753-1240

Screw

$

$

Not available

60

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, Qty 20+

0

61

MTD 791-182725

Ignition Module with Screws

$

$

Not available

62

MTD 791-181065

Spacer

$

$

Not available

63

MTD 791-182736

Flywheel
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

64

MTD 791-182743

Shroud Assembly w\Screws

$

$

Not available

65

MTD 791-182376

Crankcase Assembly

Note: (includes 66 & 67)

$

$

Not available

66

MTD 791-182375

90° Elbow

$

$

Not available

67

MTD 791-182379

Breather Hose

$4.99

$

Usually ships in 3-6 days

0

68

MTD 791-181015

Cam Gear

$

$

Not available

69

MTD 753-1242

Cam Follower

$

$

Not available

70

MTD 791-181013

Cam Bracket

$

$

Not available

71

MTD 791-181012

Cam Bracket Screw

$

$

Not available

72

MTD 791-181040

Valves, Intake and Exhaust

$

$

Not available

73

MTD 791-182374

Cylinder Gasket

$

$

Not available

74

MTD 791-181018

Oil Pan Gasket

$

$

Not available

75

MTD 791-182377

Oil Pan

Note: (includes 74 & 76)

$

$

Not available

76

MTD 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

77

MTD 791-182378

Dipstick Assembly

Note: (includes 78)

$10.99

$

Usually ships in 3-6 days

0

78

MTD 791-182290

O-Ring

$4.99

$

In Stock, Qty 9

0

79

MTD 791-181009

Connecting Rod

$

$

Not available

80

MTD 791-181008

Wrist Pin Button

$

$

Not available

81

MTD 753-1243

Piston
(Superseded to 753-04878)

$

$

Not available

82

MTD 791-181006

Wrist Pin

$5.99

$

In Stock, only 1 left!

0

83

MTD 753-04801

Piston Ring Set

$

$

Not available

84

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

85

MTD 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

86

MTD 753-1241

Nut

$

$

Not available

MTD 791-180852B

Spark Plug
(Superseded to 794-00082)

Note: Not shown

$7.49

$

In Stock, Qty 5

0

MTD 753-04087

Short Block Assembly

Note: (includes 3-15, 65-84); Not shown

$

$

Not available

MTD 791-180142

Starter Pawl Repair Kit
(Superseded to 753-05240)

Note: Not shown

$76.99

$

In Stock, only 2 left!

0

MTD 753-04014

Carburetor Repair Kit

Note: Not shown

$38.99

$

In Stock, Qty 5

0
