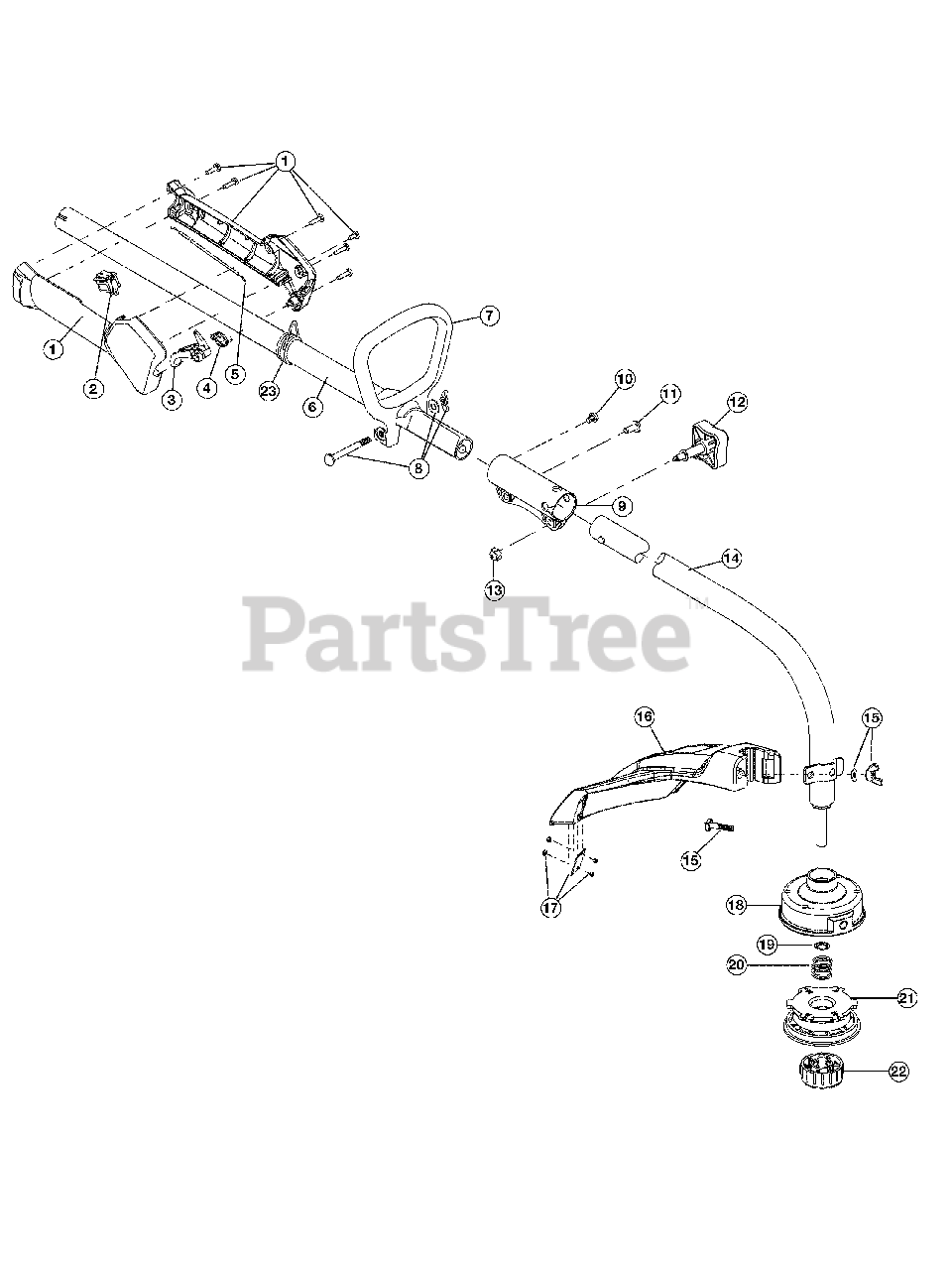

YM 20 CS (41BDY20C901) - Yard-Man String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 746-04085A

Throttle Cable

$10.99

$

In Stock, only 2 left!

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

7

MTD 753-05461

D-Handle (includes 8)

$22.99

$

Usually ships in 3-6 days

0

8

MTD 791-181587

Handle Hardware

$19.99

$

In Stock, only 1 left!

0

9

MTD 791-181616B

Split Boom Coupler (includes 10-13)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 6

0

11

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

12

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

13

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

14

MTD 753-04508

Lower Drive Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

15

MTD 753-04282

Guard Mounting Hardware

$25.99

$

Usually ships in 3-6 days

0

16

MTD 753-04283

Guard (includes 17

$50.99

$

In Stock, only 1 left!

0

17

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

18

MTD 753-04284

Outer Spool Assembly (includes 19)

$28.99

$

In Stock, only 1 left!

0

19

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

20

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 6

0

21

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

22

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 19

0

23

MTD 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1223

Reel and Line Assembly
(Superseded to 953-1156)

Note: Not Shown

$31.99

$

In Stock, only 1 left!

0

MTD 791-682075B

Shoulder Strap

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0
