YM 2 BV (41AS2BVG901) - Yard-Man Blower General Assembly Parts Diagram

Blower

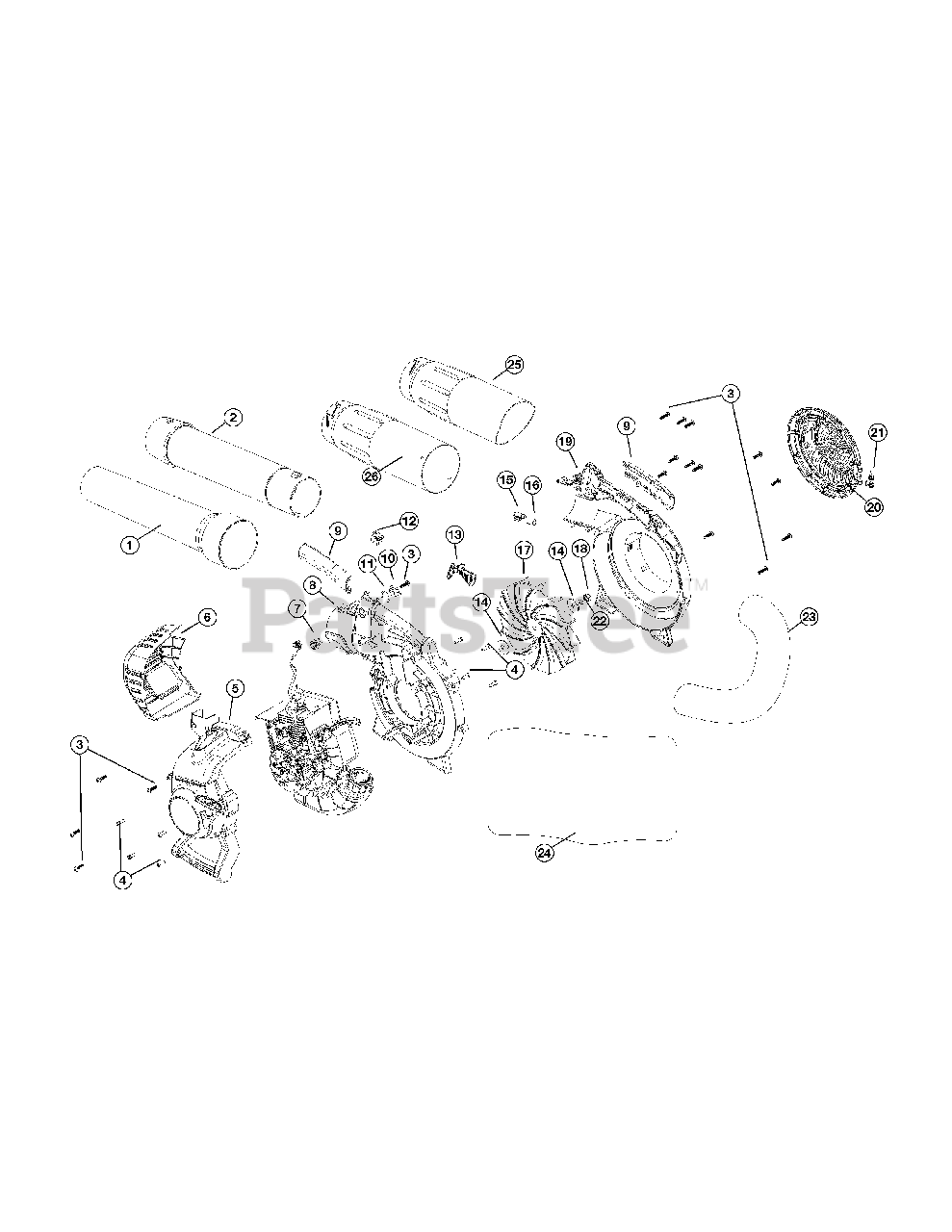

General Assembly Parts Diagram

  • Title

1

MTD 753-05937

Lower Tube

$18.99

$

Usually ships in 3-6 days

0

2

MTD 753-05936

Upper Tube

$19.99

$

Usually ships in 3-6 days

0

3

MTD 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

5

MTD 753-06657

Engine Cover Assembly (Incl. 3 & 4)

$

$

Not available

6

MTD 753-05944

Muffler Cover Assembly (Incl. 3)

$

$

Not available

7

MTD 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

8

MTD 753-05921

Impeller Housing (Incl. 9)
(Superseded to 753-06693)

$17.99

$

In Stock, only 1 left!

0

9

MTD 753-05919

Handle Grips

$6.49

$

Usually ships in 3-6 days

0

10

MTD 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

11

MTD 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

12

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

13

MTD 753-05930

Throttle Trigger

$

$

Not available

14

MTD 753-05928

Washer

$2.99

$

In Stock, Qty 20+

0

15

MTD 753-05926

Latch Tube

$2.99

$

Usually ships in 3-6 days

0

16

MTD 753-05939

Latch Spring

$2.99

$

In Stock, only 1 left!

0

17

MTD 753-05929

Impeller

$13.99

$

In Stock, Qty 20+

0

18

MTD 753-05927

Nut

$3.49

$

In Stock, only 3 left!

0

19

MTD 753-05920

Impeller Housing (Incl. 9)

$36.99

$

Usually ships in 3-6 days

0

20

MTD 753-05917

Intake Cover

$7.99

$

Usually ships in 3-6 days

0

21

MTD 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

22

MTD 736-04110A

Lock Washer

$5.49

$

In Stock, only 1 left!

0

23

MTD 753-06658

Elbow

$14.99

$

Usually ships in 3-6 days

0

24

MTD 753-06659

Bag

$17.99

$

In Stock, Qty 18

0

25

MTD 753-06660

Upper Vac Tube

$13.99

$

Usually ships in 3-6 days

0

26

MTD 753-06661

Lower Vac Tube
(Superseded to 791-180467)

$38.99

$

In Stock, only 4 left!

0
