YM 1500 (41CDY15G901) - Yard-Man String Trimmer Engine Assembly Parts Diagram

String Trimmer

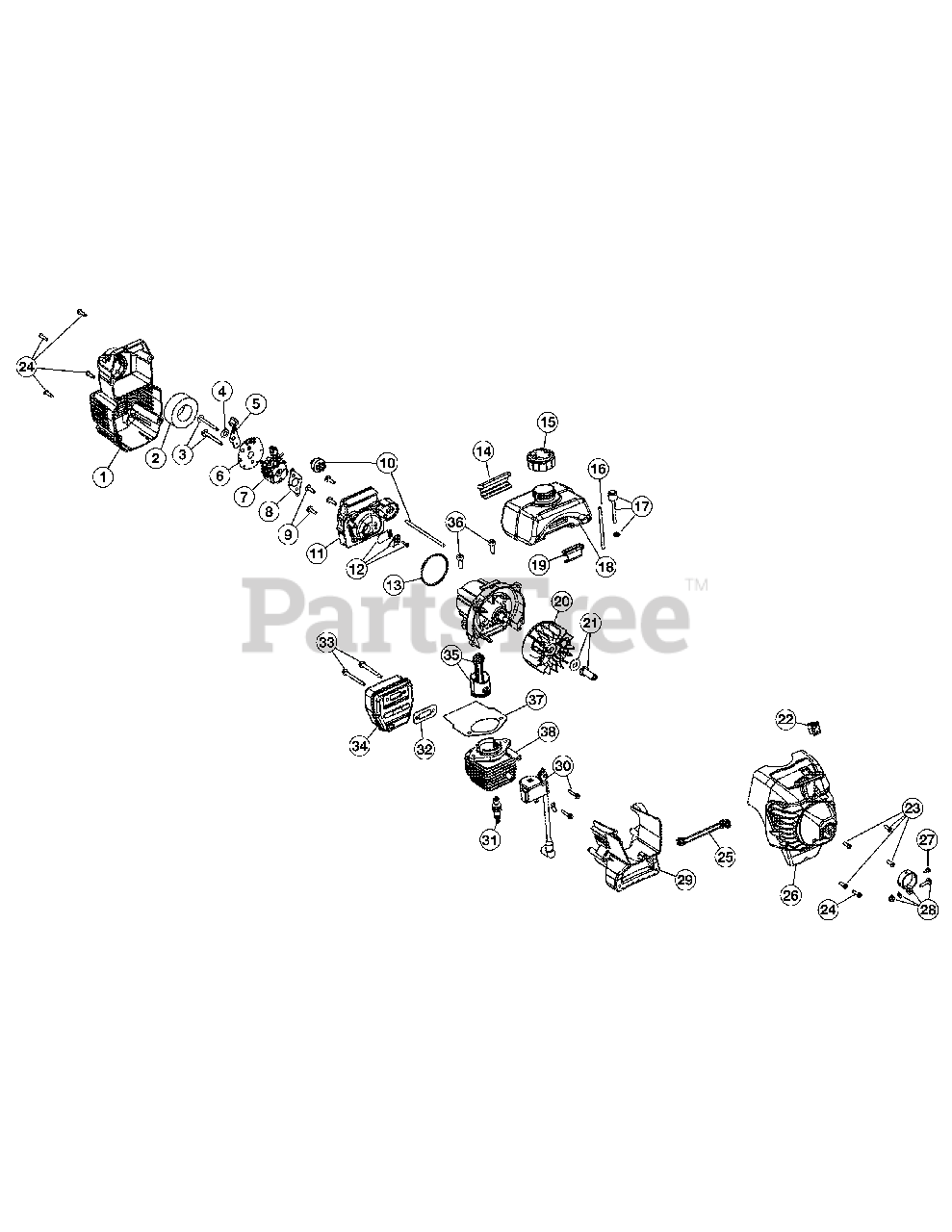

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly

Note: (includes 2 & 24)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 753-04418

Choke Lever Assembly

$

$

Not available

6

MTD 753-04419

Choke Plate

Note: (includes 5)

$

$

Not available

7

MTD 753-04408

Carburetor Assembly

Note: (includes 8 & 17)

$71.99

$

In Stock, only 2 left!

0

8

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

11

MTD 753-1196

Carburetor Mount Assembly

Note: (includes 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 753-05487

O-Ring
(Superseded to 721-04163)

$3.99

$

In Stock, Qty 7

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-1187

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

16

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

17

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

18

MTD 791-182767

Fuel Tank Assembly

Note: (includes 15-17)

$

$

Not available

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

21

MTD 791-610303

Square Nut Drive Assembly

$

$

Not available

22

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

23

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

24

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

25

MTD 753-05023

Wire Lead
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

26

MTD 753-05021

Starter Housing Assembly

Note: (includes 22-25)

$

$

Not available

27

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

28

MTD 753-05056

Clamp Assembly

Note: (includes 27)

$

$

Not available

29

MTD 753-05091

Shroud Extension and Stand

Note: (includes 24)

$19.99

$

Usually ships in 3-6 days

0

30

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

31

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

32

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

33

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

34

MTD 753-05169

Muffler Assembly

Note: (includes 32, 33 & Spark Arrestor)

$112.99

$

Usually ships in 3-6 days

0

35

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

36

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

37

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

38

MTD 753-04814

Cylinder Assembly

Note: (includes 36 & 37)

$83.99

$

In Stock, only 1 left!

0

MTD 753-1209

Piston Ring Set

Note: (not shown)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04826

Short Block Assembly

Note: (not shown)(includes Crankcase, 9, 31, & 35-38)

$195.99

$

Usually ships in 3-6 days

0
