YM 1500 (41BDY15G901) - Yard-Man String Trimmer Engine Parts YM1500 Parts Diagram

String Trimmer

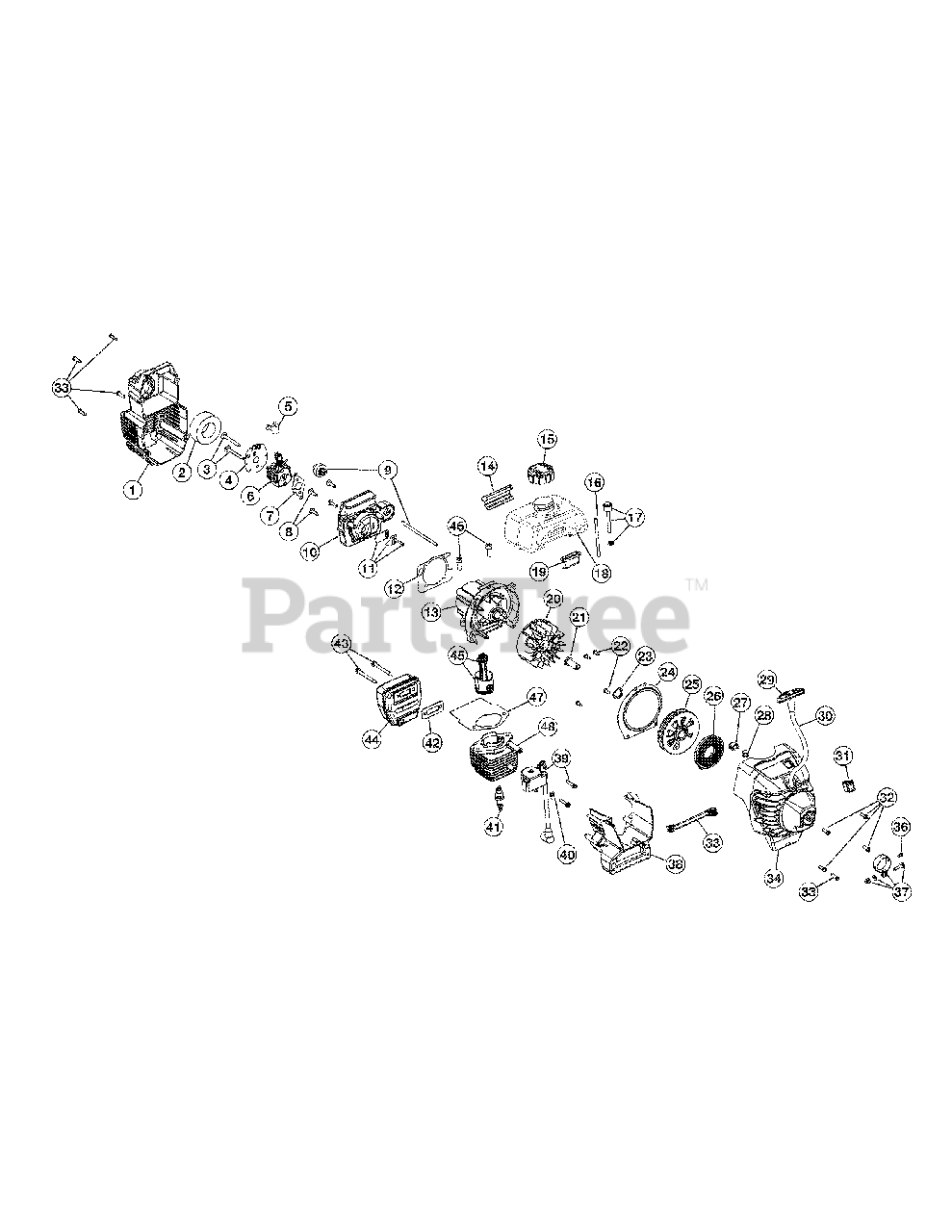

Engine Parts YM1500 Parts Diagram

  • Title

1

MTD 753-04810

Air Cleaner Cover Assembly (includes 2 & 33)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

5

MTD 753-04227

Choke Lever

$

$

Not available

6

MTD 753-04807

Carburetor Assembly (includes 7 & 17)

$93.99

$

In Stock, only 1 left!

0

7

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 17

0

10

MTD 753-1196

Carburetor Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 753-04321

Crankcase Service Assembly (includes 8)

$

$

Not available

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-1187

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 10

0

16

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

17

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 10

0

18

MTD 791-182767

Fuel Tank Assembly (includes 15-17)

$

$

Not available

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

21

MTD 791-610303

Square Nut Drive

$

$

Not available

22

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

23

MTD 753-04288

Palnut

$10.99

$

Usually ships in 3-6 days

0

24

MTD 753-04928

Pressure Plate (includes 22 & 27)

$

$

Not available

25

MTD 753-04823

Recoil Pulley Assembly (includes 23)

$33.99

$

In Stock, Qty 8

0

26

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

27

MTD 753-04824

Eyelet Retainer

$

$

Not available

28

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

29

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

30

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

31

MTD 791-182673

Switch Assembly

$10.99

$

Usually ships in 3-6 days

0

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

33

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

34

MTD 753-05021

Starter Housing Assembly (includes 22-34)

$

$

Not available

36

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

37

MTD 753-05056

Clamp Assembly (includes 36)

$

$

Not available

38

MTD 753-04702

Shroud Extension and Stand (includes 33)

$29.99

$

Usually ships in 3-6 days

0

39

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

40

MTD 791-611063

Ground Tab

$

$

Not available

41

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

42

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

43

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

44

MTD 753-05169

Muffler Assembly (includes 42, 43 & Spark Arrestor )

$112.99

$

Usually ships in 3-6 days

0

45

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

46

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

47

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

48

MTD 753-04814

Cylinder Assembly (includes 46 & 47)

$83.99

$

In Stock, only 1 left!

0

MTD 753-1209

Piston Ring Set (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04689

Spark Arrestor (NOT SHOWN)

$

$

Not available

MTD 753-04826

Short Block Assembly (includes 8, 13, 41 & 45-48) (NOT SHOWN)

$195.99

$

Usually ships in 3-6 days

0
