YM 1500 (41ADY15G701) - Yard-Man String Trimmer Engine Parts Diagram

String Trimmer

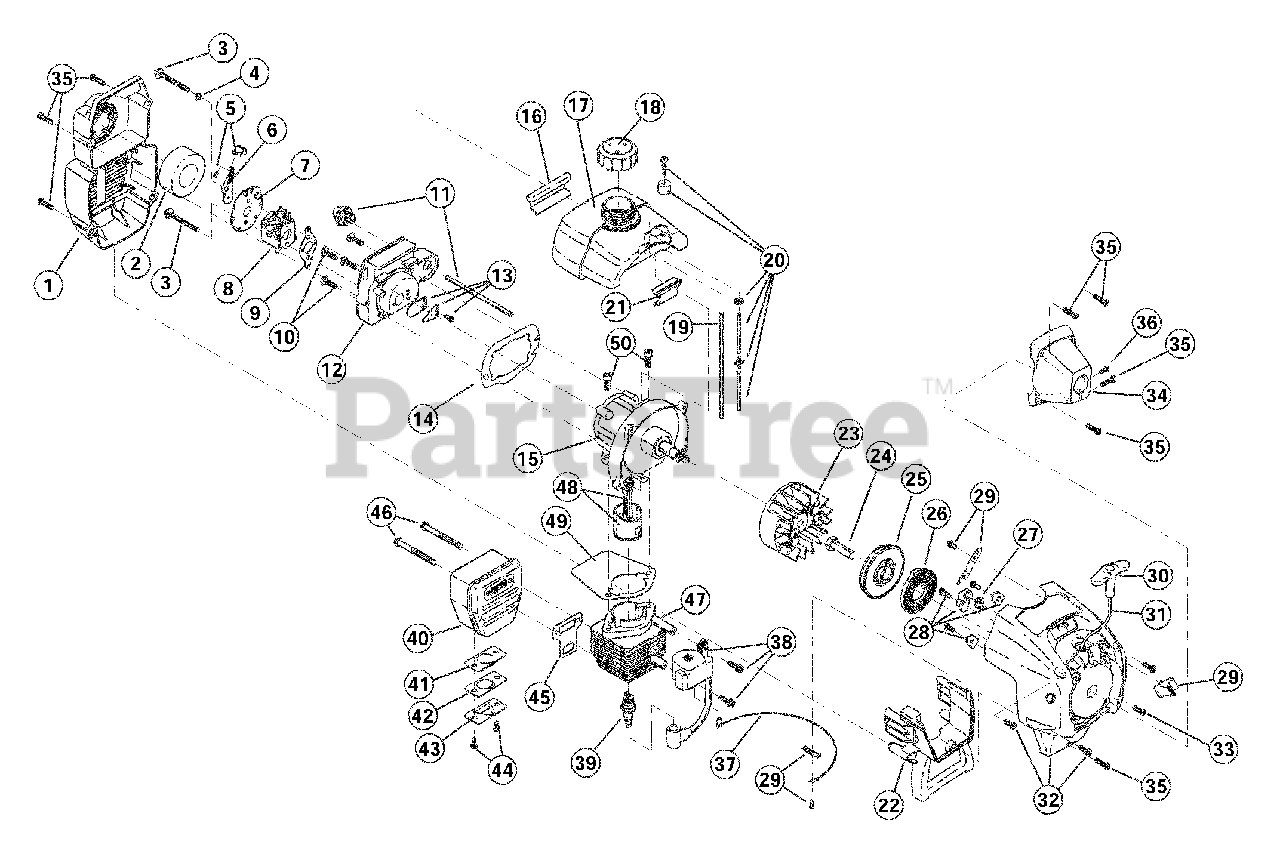

Engine Parts Diagram

  • Title

1

MTD 753-04303

Air Cleaner/Muffler Cover Assembly

Note: (Includes 2 & 35)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 753-1183

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly

Note: (Includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever and Plate

Note: (Includes 6)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (Includes 9)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (Includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04321

Crank Case Service Assembly

Note: (Includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04311

Fuel Tank Assembly

Note: (Includes 18 & 20)

$

$

Not available

18

MTD 753-1187

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

Note: (Includes 35)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-610303

Spacer

$

$

Not available

25

MTD 753-1199

Recoil Pulley Assembly

$24.99

$

In Stock, only 4 left!

0

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

29

MTD 791-182618

Switch Assembly

Note: (Includes 37)

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 753-04293

Starter Housing Assembly
(Superseded to 753-04485)

Note: (Includes 25-31, 33 & 37)

$

$

Not available

33

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-182797

Clutch Cover Assembly
(Superseded to 753-04889)

Note: (Includes 35-36)

$21.99

$

Usually ships in 3-6 days

0

35

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

36

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

37

MTD 791-180036

Wire Lead

$

$

Not available

38

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

39

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

40

MTD 753-04618

Muffler Assembly
(Superseded to 753-05169)

Note: (Includes 41-46)

$112.99

$

Usually ships in 3-6 days

0

41

MTD 753-04689

Spark Arrestor Screen

$

$

Not available

42

MTD 753-04690

Exhaust Hood Diverter

$

$

Not available

43

MTD 753-04691

Exhaust Hood

$

$

Not available

44

MTD 753-04315

Screw
(Superseded to 753-04110)

$

$

Not available

45

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

46

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

47

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (Includes 49 & 50)

$83.99

$

In Stock, only 1 left!

0

48

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

49

MTD 753-1197

Cylinder Gasket

$

$

Not available

50

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

MTD 753-04134

Engine Gasket Kit

Note: Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit

Note: Not Shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-181873

Gasket Diaphragm Repair Kit

Note: Not Shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04322

Short Block Assembly

Note: (Includes 10, 15, 39 & 47-50); Not Shown

$

$

Not available
