YM 1500 (41ADY15G401) - Yard-Man String Trimmer Engine Parts Parts Diagram

String Trimmer

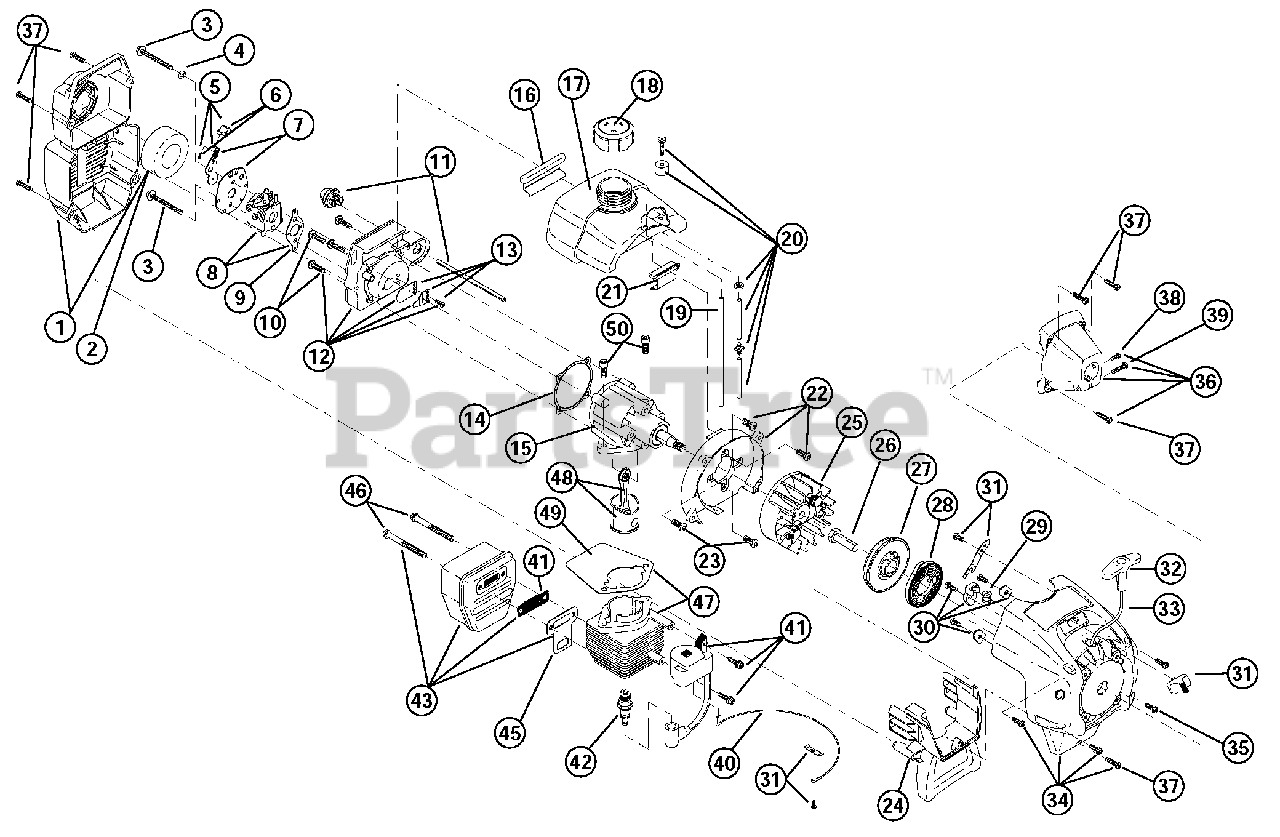

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 37)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 753-1182

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$

$

Not available

6

MTD 753-1183

Choke Knob and Screw
(Superseded to 791-182202)

$

$

Not available

7

MTD 753-1184

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5)

$

$

Not available

8

MTD 753-04144

Carburetor Assembly
(Superseded to 753-04408)

Note: (includes 9)

$71.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 753-1185

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04272

Crank Case Service Assembly

Note: (includes 10 & 22)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-1186

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 753-1187

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-153520

Shroud Assembly

$

$

Not available

23

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

24

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

25

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

26

MTD 791-610303

Spacer

$

$

Not available

27

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

28

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

29

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

31

MTD 791-182618

Switch Assembly

Note: (includes 40)

$

$

Not available

32

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

33

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

34

MTD 753-04293

Starter Housing Assembly
(Superseded to 753-04485)

Note: (includes 27-33 & 40)

$

$

Not available

35

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

36

MTD 791-182797

Clutch Cover Assembly
(Superseded to 753-04889)

Note: (includes 37-39)

$21.99

$

Usually ships in 3-6 days

0

37

MTD 791-181501

Cover Screws

$10.99

$

Usually ships in 3-6 days

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

39

MTD 791-181345

Clamping Screw

$4.49

$

In Stock, only 4 left!

0

40

MTD 791-180036

Wire Lead

$

$

Not available

41

MTD 753-04125

Module Assembly

$

$

Not available

42

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 3 left!

0

43

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 44-46)

$112.99

$

Usually ships in 3-6 days

0

44

MTD 753-1206

Spark Arrestor Screen
(Superseded to 753-04814)

$83.99

$

In Stock, only 1 left!

0

45

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 1 left!

0

46

MTD 791-147575

Muffler Mounting Bolt Assembly

$

$

Not available

47

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 49)

$83.99

$

In Stock, only 1 left!

0

48

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

49

MTD 753-1197

Cylinder Gasket

$

$

Not available

50

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

MTD 753-04134

Engine Gasket Kit

Note: not shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: not shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-181873

Gasket Diaphragm Repair Kit (Walbro)

Note: not shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04173

Short Block Assembly

Note: (includes 10, 15, 23, 42, 46-50); not shown

$

$

Not available

MTD 791-181501

Starter Housing Screw Set

Note: not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 791-610309

Crankcase Seal

Note: not shown

$16.99

$

Usually ships in 3-6 days

0
