YM 137 (41AC137C901) - Yard-Man String Trimmer, Electric Boom & Trimmer Assembly 2007 & after Parts Diagram

String Trimmer, Electric

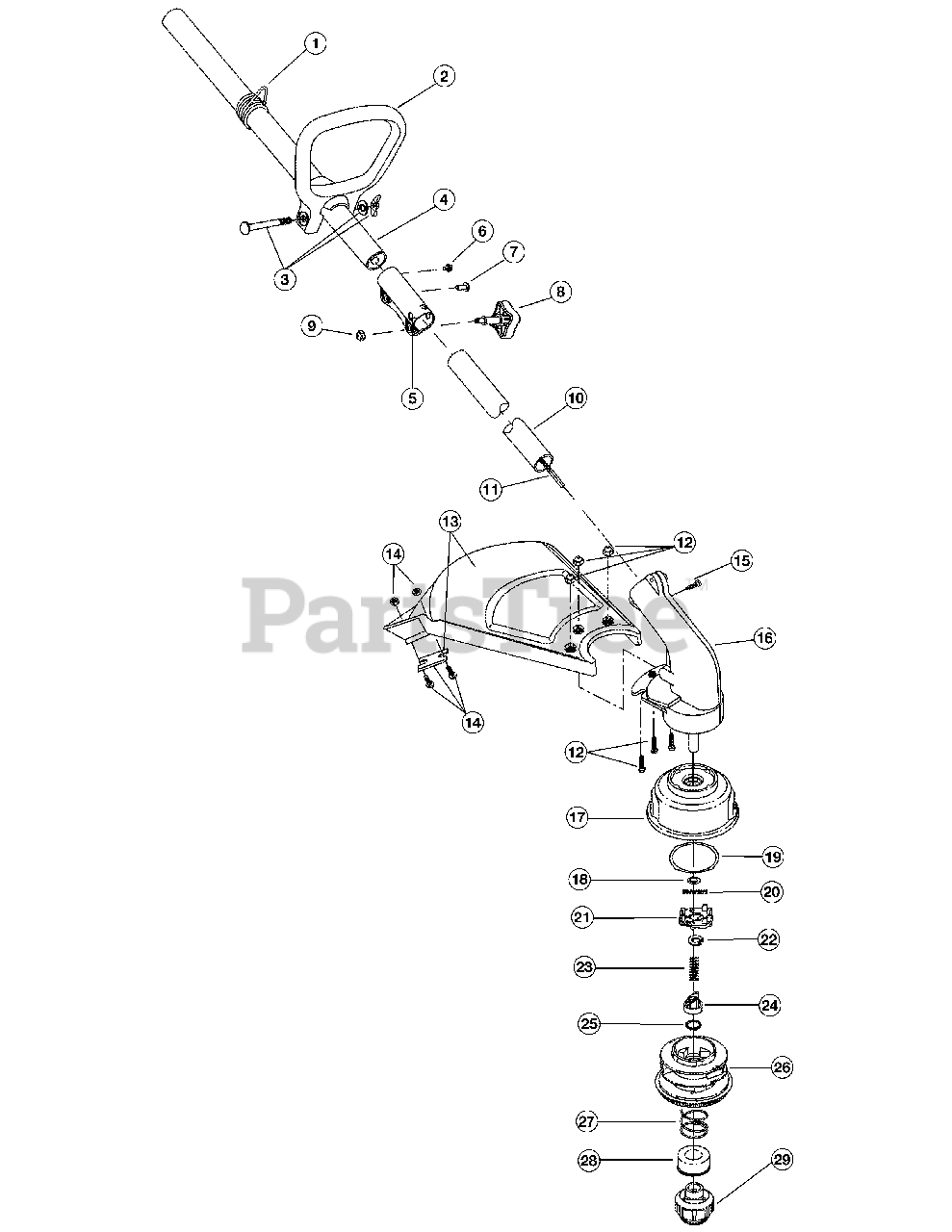

Boom & Trimmer Assembly 2007 & after Parts Diagram

  • Title

1

MTD 791-610327

Shoulder Harness Clamp

$32.99

$

Usually ships in 3-6 days

0

2

MTD 791-153064

D-Handle

$

$

Not available

3

MTD 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

4

MTD 753-04345

Upper Drive Shaft Housing Assembly

$

$

Not available

5

MTD 791-182928

Split Boom Coupler (includes 6-9)

$

$

Not available

6

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 7

0

7

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

8

MTD 791-181951

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

9

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

10

MTD 753-1212

Lower Drive Shaft Housing Assembly
(Superseded to 753-04089)

$49.99

$

Usually ships in 3-6 days

0

11

MTD 753-05182

Flexible Drive Shaft

$31.99

$

In Stock, only 1 left!

0

12

MTD 791-180547

Guard Mounting Hardware

$

$

Not available

13

MTD 791-180548

Guard Assembly

$

$

Not available

14

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

15

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

16

MTD 753-05188

Gearbox (includes 17-29)

$

$

Not available

17

MTD 791-181457

Outer Spool Assembly (includes 18)

$39.99

$

In Stock, only 1 left!

0

18

MTD 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

19

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, only 4 left!

0

20

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

21

MTD 791-181461

Slider
(Superseded to 753-04257)

$7.49

$

In Stock, only 1 left!

0

22

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

23

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

24

MTD 791-181462

Plunger

$

$

Not available

25

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

26

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

27

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

28

MTD 791-181467

Foam Seal

$

$

Not available

29

MTD 791-181468B

Bump Knob Assembly (includes 27 & 28)

$

$

Not available

MTD 791-181472

.080" Replacement Line (Eight - 10 foot lengths)
(Superseded to 791-181460B)

Note: Optional Accessories

$32.99

$

Usually ships in 3-6 days

0

MTD 791-181460

Reel and Line Assembly
(Superseded to 791-181460B)

Note: Optional Accessories

$32.99

$

Usually ships in 3-6 days

0

MTD 791-682075

Shoulder Strap Harness
(Superseded to 791-682075B)

Note: Optional Accessories

$38.99

$

Usually ships in 3-6 days

0
