YM-1338 (13BH660F009) - White Outdoor 38" Lawn Tractor (2001) Speed Selector Parts Diagram

38" Lawn Tractor

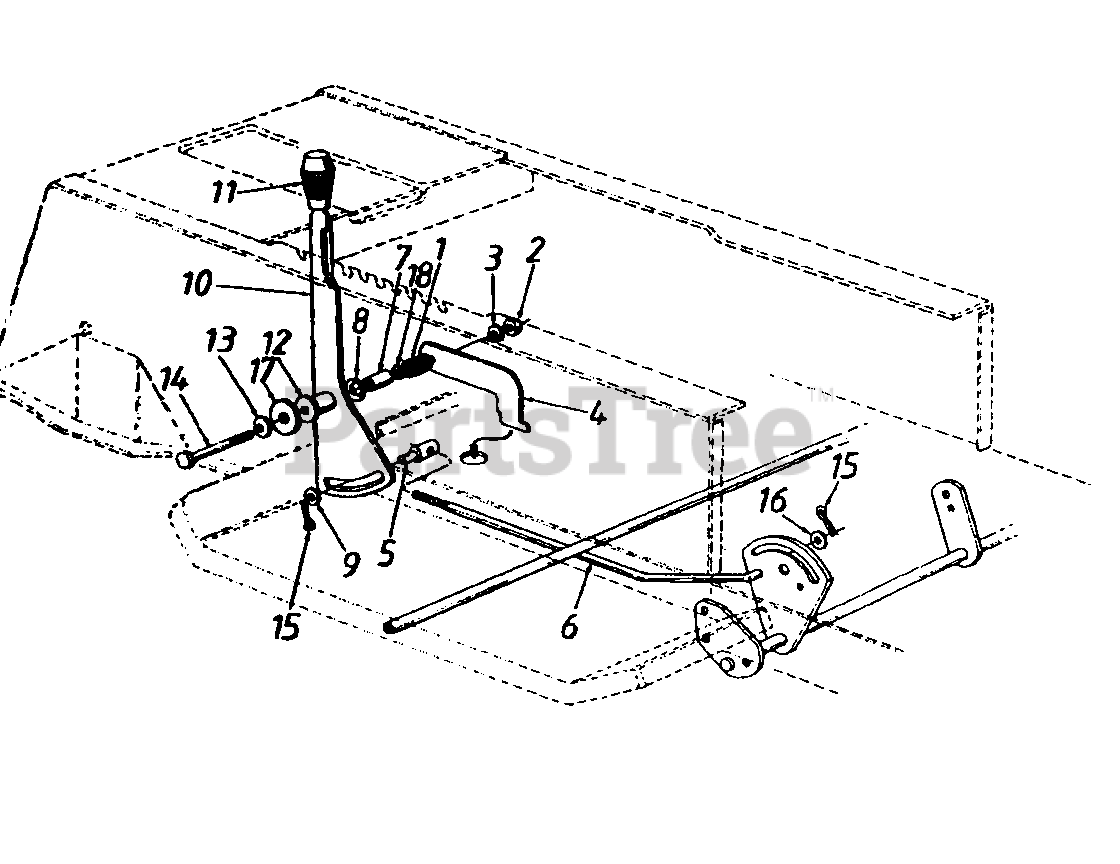

Speed Selector Parts Diagram

  • Title

1

MTD 932-0645

Compression Spring

$2.99

$

In Stock, Qty 6

0

2

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

4

MTD 17956

Shift Lever Support

$

$

Not available

5

MTD 911-0198

Ferrule 3/8-24 Thd.

$13.99

$

In Stock, Qty 17

0

6

MTD 747-0787

Speed Control Rod

$

$

Not available

7

MTD 750-0662

Spacer 1.56" Lg.

$

$

Not available

8

MTD 936-0253

Bell-Wash. .505" I.D. x 1"
(Superseded to 736-0253)

$

$

Not available

9

MTD 936-0300

Fl-Wash. .385" I.D. x .87"
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

10

MTD 17888A

Speed Selector Lever

$

$

Not available

11

MTD 920-0232

Shift Knob

$10.99

$

In Stock, Qty 10

0

12

MTD 750-0913

Spacer 1.46" Lg.

$

$

Not available

13

MTD 936-0159

Fl-Wash. .345" I.D. x .88"
(Superseded to 736-0159)

$

$

Not available

14

MTD 710-3056

Hex Bolt 5/16-18 x 3.25" Lg.

$10.99

$

In Stock, only 1 left!

0

15

MTD 914-0111

Cotter Pin 3/32" Dia. x 1"
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

16

MTD 936-0226

Fl-Wash. .469" I.D. x .88"

$3.99

$

In Stock, only 1 left!

0

17

MTD 736-0418A

Fl-Wash. .34" I.D. x 2.25"

$10.99

$

Usually ships in 3-6 days

0

18

MTD 726-0201

Speed Nut 5/16-18 Thd.

$6.99

$

In Stock, only 2 left!

0
