YM-1338 (13BH660F009) - White Outdoor 38" Lawn Tractor (2001) Frame, Drive, Wheels Rear Parts Diagram

38" Lawn Tractor

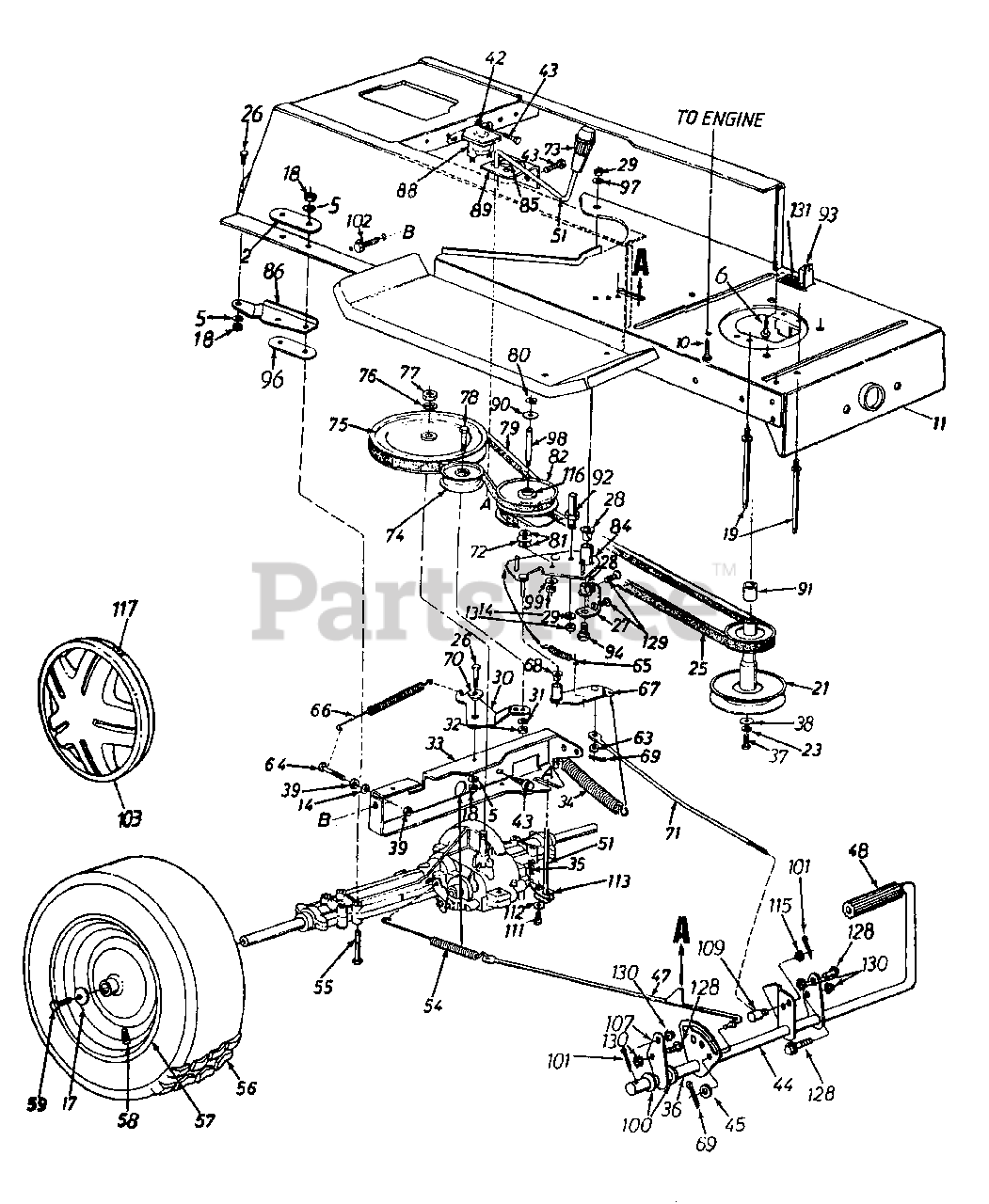

Frame, Drive, Wheels Rear Parts Diagram

  • Title

2

MTD 17840-0637

Transaxle Mtg. Brkt.

$11.99

$

Usually ships in 3-6 days

0

5

MTD 936-0119

L-Wash. 5/16" I.D."

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-1315

Hex TT-Tap Scr. 3/8-16 x1.5" Lg.

$4.49

$

In Stock, only 2 left!

0

11

MTD 783-0310F

Lower Frame Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0310F-0637

FRAME-LOWER 600 - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-0310F-0665

FRAME-LOWER 600 - YARDMAN GREEN (0665)

$148.99

$

Usually ships in 3-6 days

0

MTD 783-0310F-0483

FRAME-LOWER 600 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0310F-0638

FRAME-LOWER 600 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0310F-0648

No Longer Available FRAME-LOWE - TECH GRAY (0648)

$

$

Not available

MTD 783-0310F-0650

FRAME-LOWER 600 R - RED METALLIC (0650)

$

$

Not available

MTD 783-0310F-0667

No Longer Available FRAME-LOWE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0310F-0709

No Longer Available FRAME-LOWE - MASTERCRAFT GREEN (0709)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

13

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

14

MTD 936-0329

L-Wash. 1/4" I.D."

$4.49

$

In Stock, Qty 11

0

17

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

MTD 912-3010

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-1044A

Belt Guard Stud 4.75" Lg.

$8.99

$

In Stock, Qty 10

0

21

MTD 756-0982B

Engine Pulley

$72.99

$

In Stock, only 1 left!

0

22

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

MTD 936-0171

L-Wash. 7/16" 1.13.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

24

MTD 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

MTD 954-0280A

Variable-Speed Belt

$45.99

$

In Stock, only 1 left!

0

26

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 17963

Bearing Shaft Bracket Ass'y.

Note: NLA

$

$

Not available

28

MTD 741-0495

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.

$4.99

$

In Stock, Qty 20+

0

29

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

MTD 17643-0637

Idler Bracket

Note: (Used w/20" Wheels w/o 46" Deck)

$10.99

$

In Stock, only 4 left!

0

30

MTD 17694-0637

Idler Bracket

Note: (Used w/46" Deck)

$16.99

$

Usually ships in 3-6 days

0

31

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

MTD 17629A-0637

Transaxle Support Brkt.

$

$

Not available

34

MTD 932-0556

Ext. Spring .94" O.D. x 7.58"

$21.99

$

Usually ships in 3-6 days

0

35

MTD 914-0149B

Inter. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

36

MTD 750-0802

Spacer.63" I.D.

$6.99

$

Usually ships in 3-6 days

0

39

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

40

MTD 710-0896

Hex AB-Tap Scr. 1/4" x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

42

MTD 936-0222

Ext. L-Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available

43

MTD 710-0599

Hex Wash. S-Tap Scr.1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

MTD 683-0123

Clutch/Brake Pedal Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0123-0483

PEDAL-ASSY BRAKE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 683-0123-0637

PEDAL-ASSY BRAKE - POWDER BLACK (0637)

$

$

Not available

MTD 683-0123-0638

PEDAL-ASSY BRAKE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0123-0650

PEDAL-ASSY BRAKE - RED METALLIC (0650)

$

$

Not available

MTD 683-0123-0662

PEDAL-ASSY BRAKE - OYSTER GRAY (0662)

$

$

Not available

MTD 683-0123-0665

PEDAL-ASSY BRAKE - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0123-0691

PEDAL-ASSY BRAKE - BLACK JACK (0691)

$

$

Not available

$

$

45

MTD 936-0140

Fl-Wash. .344" I.D. x .62"
(Superseded to 736-0140)

$

$

Not available

47

MTD 747-0755A

Brake Rod Ass'y.

$

$

Not available

48

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

51

MTD 17705

Shift Lever Ass'y.

$

$

Not available

54

MTD 932-0413

Ext. Spring .59" O.D. x 7.08"

Note: (Used w/20" Wheels w/o 46"Deck)

$12.99

$

In Stock, only 4 left!

0

54

MTD 932-0642

Ext. Spring 7.33" Lg.

Note: (Used w/46" Deck)

$

$

Not available

55

MTD 710-1266

Hex Bolt 5/16-18 x 3.5" Lg.

Note: (Used w/46" Deck)

$9.99

$

Usually ships in 3-6 days

0

55

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

Note: (Used w/20" Wheels w/o 46" Deck)

$6.49

$

In Stock, Qty 5

0

56

MTD 734-1675

Wheel Ass'y. Comp. 20" x 8.0" (Round Shoulder)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 734-1675-0911

WHEEL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1675-0914

WHEEL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

MTD 734-1675-0931

WHEEL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

MTD 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1675-0944

No Longer Available WHEEL ASM - Cheng Yellow (0944)

$

$

Not available

MTD 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

MTD 734-1675-0985

No Longer Available WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

56

MTD 634-0104

Wheel Ass'y. Comp. 20" x 8.0" (Square Shoulder)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

56

MTD 734-1596

Tire Only 20" x 8.0" (Round Shoulder)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1596-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

MTD 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

56

MTD 734-1730

Tire Only 20" x 8.0" (Square Shoulder)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

57

MTD 634-0070

Wheel Rim Only 20" x 8.0" (Round Shoulder) (Square Shoulder)
(Superseded to 634-04369)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

58

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

63

MTD 936-0275

Fl-Wash. .34" I.D. x .68" O.D.
(Superseded to 736-0275)

$

$

Not available

64

MTD 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

65

MTD 932-0568

Ext. Spring

$

$

Not available

66

MTD 932-0384

Ext. Spring .62" O.D. x 6.12"

$14.99

$

In Stock, Qty 12

0

67

MTD 16554A-0637

Variable Speed Torque Brkt. Ass'y.

$20.99

$

Usually ships in 3-6 days

0

68

MTD 741-0419

Flanged Bearing

$

$

Not available

69

MTD 914-0111

Cotter Pin 3/32" Dia.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

70

MTD 748-0234

Shoulder Spacer.27" Lg.

$4.49

$

In Stock, Qty 20+

0

71

MTD 747-0530A

Speed Control Link

$14.99

$

Usually ships in 3-6 days

0

72

MTD 941-0405

Truss Bearing .56 Dia. x 1.25"

$

$

Not available

73

MTD 920-0232

Shift Knob

$10.99

$

In Stock, Qty 10

0

74

MTD 756-0643A

Fl-Idler Pulley 3.12" Dia.

$40.99

$

In Stock, Qty 15

0

75

MTD 656-0005

V Pulley

Note: NLA (Used w/46" Deck)

$

$

Not available

75

MTD 656-0004

V Pulley

Note: (Used w/20" Wheels w/o 46" Deck)

$120.99

$

In Stock, only 1 left!

0

76

MTD 936-0427

Bell-Wash. .56" I.D. x 1.125"

$

$

Not available

77

MTD 712-3035

Hex Jam Nut 5/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

78

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

79

MTD 954-0370

Variable Speed Belt

$41.99

$

Usually ships in 3-6 days

0

80

MTD 916-0114

Snap Ring .56" Dia.

$6.99

$

In Stock, only 2 left!

0

81

MTD 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

82

MTD 917-0800A

Variable Speed Pulley Ass'y.

$245.99

$

In Stock, only 3 left!

0

84

MTD 16354B-0637

Variable Speed Brkt. Ass'y.

$

$

Not available

85

MTD 732-0525

Comp. Spring-Clip

$10.99

$

In Stock, only 1 left!

0

86

MTD 17668A-0637

Axle Support Brkt.-R.H.

$

$

Not available

86

MTD 17669A-0637

Axle Support Brkt.-L.H.

$

$

Not available

88

MTD 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

89

MTD 17630A-0637

Shift Lever Bracket

$15.99

$

Usually ships in 3-6 days

0

90

MTD 936-0414

Teflon Washer.565" I.D.
(Superseded to 736-0414)

$

$

Not available

91

MTD 750-0956

Spacer 1" I.D. x 1.25" Lg.

$19.99

$

In Stock, only 2 left!

0

92

MTD 911-1000

Belt Keeper 3" Lg.

$10.99

$

In Stock, only 2 left!

0

93

MTD 925-1657A

Safety Switch (Clutch)

$24.99

$

In Stock, only 4 left!

0

94

MTD 938-0755

Shld. Bolt 3/8-24 x 3.12" Lg.

$14.99

$

Usually ships in 3-6 days

0

97

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

MTD 938-0569

Shaft .56" Dia. x 3.875" Lg.

$33.99

$

In Stock, only 1 left!

0

99

MTD 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 20+

0

100

MTD 936-0256

Fl-Wash. .64" I.D. x .94"

$7.49

$

Usually ships in 3-6 days

0

101

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25"
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

102

MTD 710-0604A

Hex Wash. Hd. Scr. 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

103

MTD 734-1615A

Hub Cap

Note: (Gray-Optional)

$32.99

$

Usually ships in 3-6 days

0

103

MTD 734-1614A

Hub Cap

Note: NLA (Beige-Optional)

$

$

Not available

103

MTD 934-1788A

Hub Cap

Note: (Yellow-Optional)

$34.99

$

Usually ships in 3-6 days

0

107

MTD 17860-0637

Pedal Bracket

$

$

Not available

109

MTD 911-0198

Ferrule

$13.99

$

In Stock, Qty 17

0

111

MTD 910-0195

Hex Bolt 1/4-28 x .50" Lg.

$3.99

$

In Stock, only 1 left!

0

112

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

MTD 17707

Shift Lever Link Ass'y.

$

$

Not available

115

MTD 936-0140

Fl-Wash. .385" I.D. x .62"
(Superseded to 736-0140)

$

$

Not available

116

MTD 941-0404

Needle Brgs. (2 Req'd.)
(Superseded to 741-0404)

$

$

Not available

117

MTD 927-0425A

Spring Clip

Note: (Used w/Ref. No. 103)

$

$

Not available

128

MTD 710-1238

Hex Wash. TT-Tap Scr. 5/16-18x .75"
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

129

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16-18x .75"

$4.49

$

In Stock, Qty 20+

0

130

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

131

MTD 932-0750A

Spring Switch

$21.99

$

Usually ships in 3-6 days

0
