YM-1338 (13BH660F009) - White Outdoor 38" Lawn Tractor (2001) Engine Accessories, Muffler Parts Diagram

38" Lawn Tractor

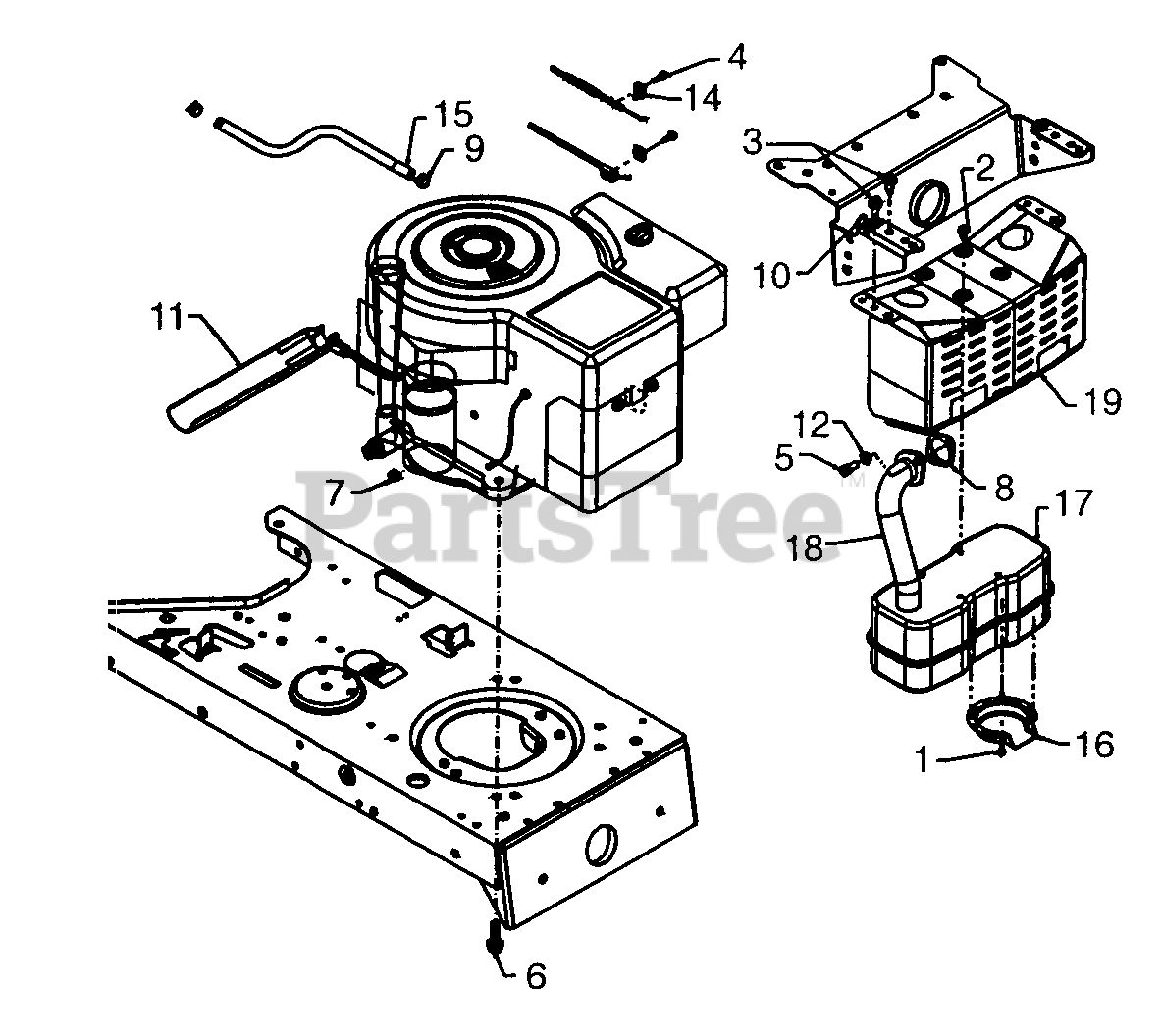

Engine Accessories, Muffler Parts Diagram

  • Title

1

MTD 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Hex TT Tap Scr. 1 /4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Hex TT Tap Scr. 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Hex Wash. Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Head Scr. 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Hex TT Tap Scr. 3/8-16 x 1.25"

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0271

Hex Sems Scr. 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

8

MTD BS-692236

Gasket

$5.49

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

11

MTD 731-1682A

Oil Drain Sleeve

$7.99

$

In Stock, Qty 6

0

12

MTD 936-0119

Lock Washer 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

14

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

15

MTD 751-10349-13

Fuel Line 12" Lg.

$17.99

$

In Stock, only 3 left!

0

16

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 4 left!

0

17

MTD 751-0617C

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

MTD 751-0619A

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

19

MTD 783-0615E-0637

Muffler Brkt.

$64.99

$

In Stock, only 1 left!

0
