YM-1338 (13BH660F009) - White Outdoor 38" Lawn Tractor (2001) Deck, Lift Hanger Assembly Parts Diagram

38" Lawn Tractor

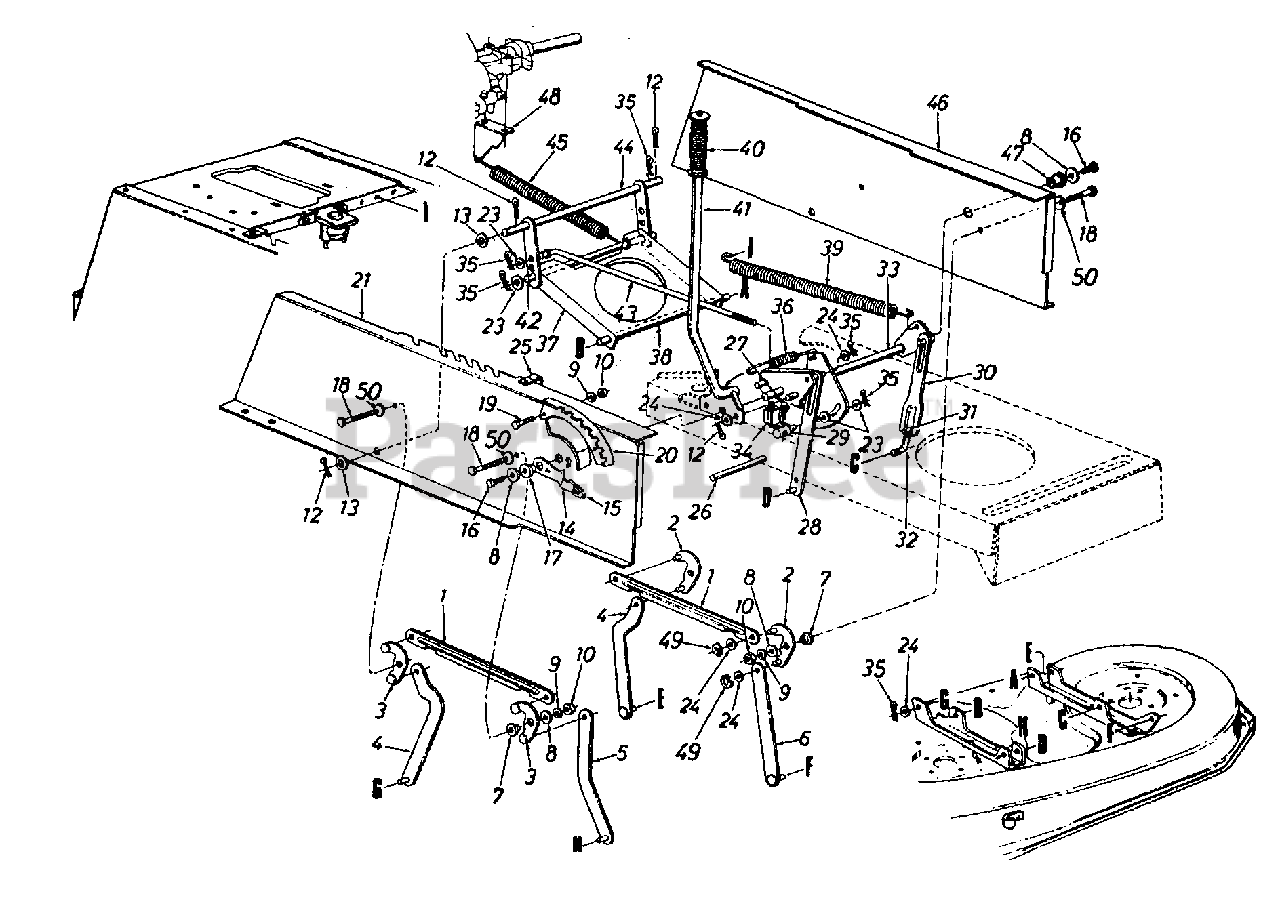

Deck, Lift Hanger Assembly Parts Diagram

  • Title

1

MTD 783-0103-0637

Connecting Rod

$

$

Not available

2

MTD 983-0029A-0637

Pivot Link Ass'y.-L.H.

$13.99

$

In Stock, only 3 left!

0

3

MTD 683-0028A

Pivot Link Ass'y.-R.H.

Note: NLA

$

$

Not available

4

MTD 97710-0637

Deck Hanger Link Ass'y.

$

$

Not available

5

MTD 14800A-0637

Deck Hanger Link Ass'y.

$

$

Not available

6

MTD 14804A

Deck Hanger Link Ass'y.

Note: NLA

$

$

Not available

7

MTD 948-0331

Shld. Spacer.318" I.D.

$

$

Not available

8

MTD 936-0231

Fl-Wash. .344" I.D. x 1.125" O.D.
(Superseded to 736-0231)

$

$

Not available

9

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3004A

Flange Lock Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

12

MTD 914-0470

Cotter Pin 1/8" Dia.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

13

MTD 936-0256

Fl-Wash. .635" I.D. x 1.0" O.D.

$7.49

$

Usually ships in 3-6 days

0

14

MTD 983-0003

Hgt Adj. Stop Lever Ass'y.

Note: (Incl. #15); Optional

$

$

Not available

15

MTD 08540

Knob

Note: Optional

$

$

Not available

16

MTD 710-0604A

Hex Wash. TT Tap Scr.5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 748-0176

Flange Brg. .63" I.D.

Note: Optional

$9.99

$

In Stock, only 1 left!

0

18

MTD 710-1238

Hex Wash. Hd. Scr. 5/16-18x .875" Lg.
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 783-04113P

Index Brkt.

$25.99

$

In Stock, only 1 left!

0

21

MTD 783-0042D

Upper Frame-R.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0042D-0480

FRAME-UPPER RH SID - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0042D-0483

FRAME-UPPER RH SID - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0042D-0606

FRAME-UPPER RH SID - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0042D-0629

FRAME-UPPER RH SID - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0042D-0637

FRAME-UPPER RH SID - POWDER BLACK (0637)

$

$

Not available

MTD 783-0042D-0638

FRAME-UPPER RH SID - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0042D-0640

FRAME-UPPER RH SID - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0042D-0648

FRAME-UPPER RH SID - TECH GRAY (0648)

$

$

Not available

MTD 783-0042D-0650

FRAME-UPPER RH SID - RED METALLIC (0650)

$

$

Not available

MTD 783-0042D-0665

FRAME-UPPER RH SID - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0042D-0691

No Longer Available FRAME-UPPE - BLACK JACK (0691)

$

$

Not available

MTD 783-0042D-0709

No Longer Available FRAME-UPPE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

23

MTD 936-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

24

MTD 936-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 1 left!

0

25

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

26

MTD 738-0526

Running Board Rod

$

$

Not available

27

MTD 710-3007

Hex Wash. Hd. Tap Scr.

$4.49

$

In Stock, Qty 20+

0

28

MTD 14802A-0637

Link Deck Lift Ass'y.

$

$

Not available

29

MTD 911-0723A

Adj. Ferrule 3/8-24 Thd.

$15.99

$

Usually ships in 3-6 days

0

30

MTD 17712-0637

Adj. Deck Lift Link

$25.99

$

Usually ships in 3-6 days

0

31

MTD 912-3066

Hex Nut 1/2-20 Thd. (Gr. 5)

$6.99

$

In Stock, only 1 left!

0

32

MTD 911-0841

Lift Link Adjuster

$

$

Not available

33

MTD 17637A

Lift Shaft Ass'y.

Note: NLA

Variations

MTD 17637A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 925-1657A

Safety Switch (Deck)

$24.99

$

In Stock, only 4 left!

0

35

MTD 914-0145

Inter. Cotter Pin 3/8" Dia.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

36

MTD 932-0637

Extension Spring

$

$

Not available

37

MTD 17636D-0637

Stabilizer Bracket

$

$

Not available

38

MTD 738-0670A

Shaft 1/2" Dia. x 10.28" Lg.

$

$

Not available

39

MTD 732-0638

Extension Spring

$

$

Not available

40

MTD 920-0233

Grip (Lift Handle)

$

$

Not available

41

MTD 97675A

Deck Lift Handle Ass'y.

Note: NLA

Variations

MTD 97675A-0637

No Longer Available HANDLE-ASM - POWDER BLACK (0637)

$

$

Not available

MTD 97675A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 97675A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 97675A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 97675A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 747-1283

Shaft 3/8" Dia. x 9.34" Lg.

$

$

Not available

43

MTD 747-0598

Disengagement Rod

$13.99

$

Usually ships in 3-6 days

0

44

MTD 97624-0637

Stabilizer Shaft Ass'y.

$

$

Not available

45

MTD 932-0556

Extension Spring 7.58" Lg.

$21.99

$

In Stock, only 1 left!

0

46

MTD 783-0043B

Upper Frame-L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0043B-0648

FRAME-UPPER LH - TECH GRAY (0648)

$

$

Not available

MTD 783-0043B-0483

No Longer Available FRAME-UPPE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0043B-0499

FRAME-UPPER LH - CUB BEIGE (0499)

$

$

Not available

MTD 783-0043B-0606

No Longer Available FRAME-UPPE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0043B-0629

FRAME-UPPER LH - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0043B-0637

FRAME-UPPER LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0043B-0638

FRAME-UPPER LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0043B-0650

FRAME-UPPER LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0043B-0662

No Longer Available FRAME-UPPE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0043B-0665

No Longer Available FRAME-UPPE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0043B-0667

No Longer Available FRAME-UPPE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0043B-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0043B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0043B-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

47

MTD 741-0487C

Flange Brg. .632" I.D.

$7.49

$

Usually ships in 3-6 days

0

48

MTD 17128A-0637

Spring Retainer Brkt.

$16.99

$

Usually ships in 3-6 days

0

49

MTD 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

50

MTD 936-0425

Bell-Wash. .325" I.D.
(Superseded to 736-0425)

$

$

Not available
