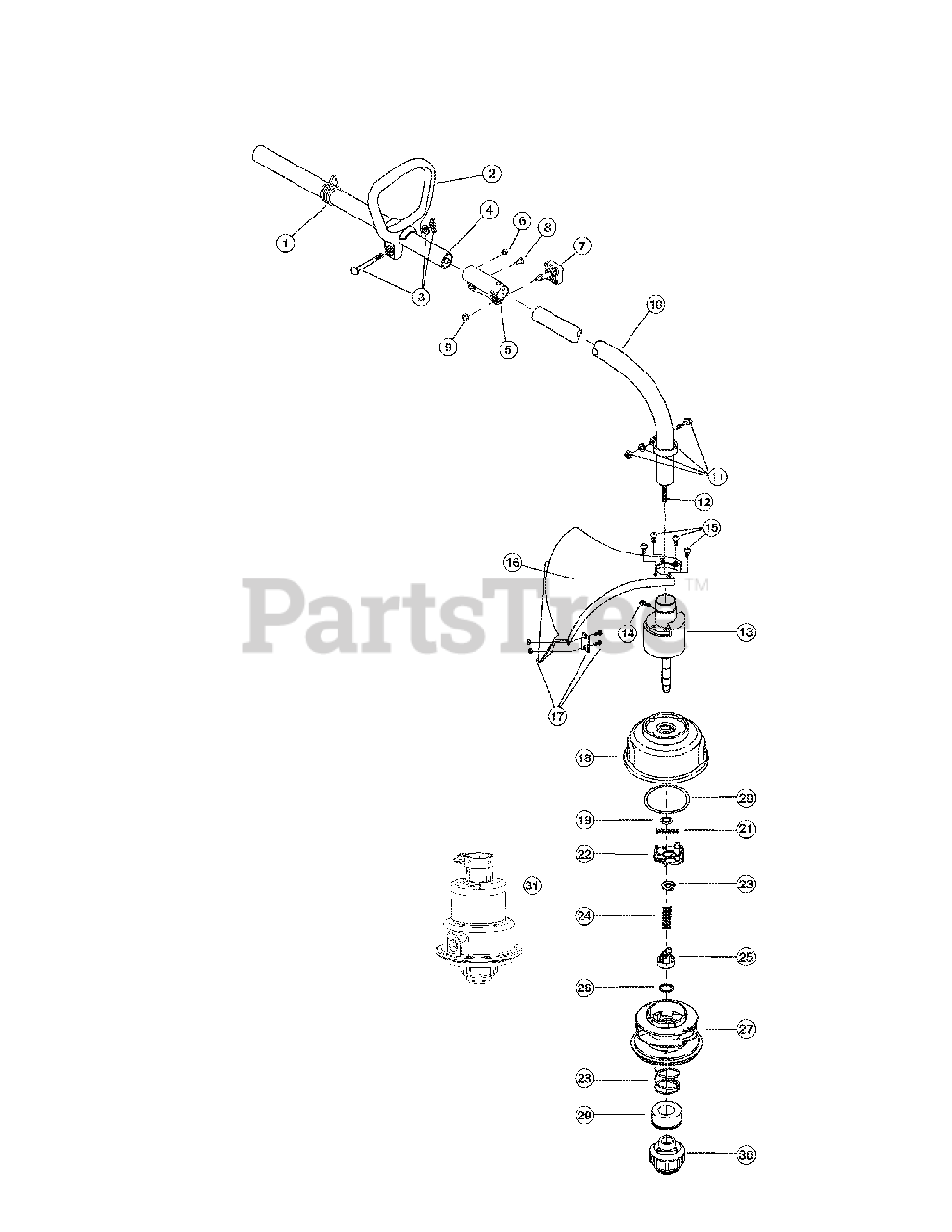

YM 132 (41AC132C901) - Yard-Man String Trimmer, Electric Boom and Trimmer Parts Parts Diagram

String Trimmer, Electric

Boom and Trimmer Parts Parts Diagram

  • Title
1

MTD 791-610327

Shoulder Harness Clamp

$32.99

$

Usually ships in 3-6 days

0

2

MTD 791-153064

D-Handle (includes 3)

$

$

Not available

3

MTD 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

4

MTD 753-04345

Upper Drive Shaft Housing Assembly

$

$

Not available

5

MTD 791-182928

Split Boom Coupler (includes 6-9)

$

$

Not available

6

$4.49

$

In Stock, Qty 6

0

7

MTD 791-181951

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

$5.49

$

In Stock, Qty 11

0

9

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

10

MTD 753-1218

Lower Drive Shaft Assembly

$105.99

$

Usually ships in 3-6 days

0

11

MTD 791-153597

Lower Clamp Assembly

$

$

Not available

12

MTD 791-181852

Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

13

MTD 791-181857

Bushing Housing Assembly

$

$

Not available

14

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

15

MTD 791-180531

Guard Mounting Screws
(Superseded to 791-181858)

$

$

Not available

16

MTD 791-683274

Guard Assembly (includes 17)

$36.99

$

Usually ships in 3-6 days

0

17

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

18

MTD 791-181457

Outer Spool Assembly (includes 19)

$39.99

$

In Stock, only 1 left!

0

19

MTD 791-181458

Retainer

$4.49

$

In Stock, Qty 11

0

20

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 5

0

21

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

22

MTD 753-04257

Slider

$7.49

$

In Stock, Qty 20+

0

23

$4.49

$

In Stock, Qty 8

0

24

$4.49

$

In Stock, Qty 9

0

25

MTD 791-181462

Plunger

$

$

Not available

26

$3.99

$

Usually ships in 3-6 days

0

27

MTD 791-181464

Inner Reel
(Superseded to 791-181460B)

$32.99

$

Usually ships in 3-6 days

0

28

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

29

MTD 791-181467

Foam Seal

$

$

Not available

30

MTD 791-181468B

Bump Head Knob Assembly (includes 28 & 29)

$

$

Not available

31

MTD 791-181469B

Complete Cutting Head Assembly (includes 11 & 13-30)

$

$

Not available

MTD 791-682075B

Shoulder Strap Harness (NOT SHOWN)

Note: Optional Accessories

$38.99

$

Usually ships in 3-6 days

0

MTD 791-181460B

Reel w/.080 Line (NOT SHOWN)

Note: Optional Accessories

$32.99

$

Usually ships in 3-6 days

0
