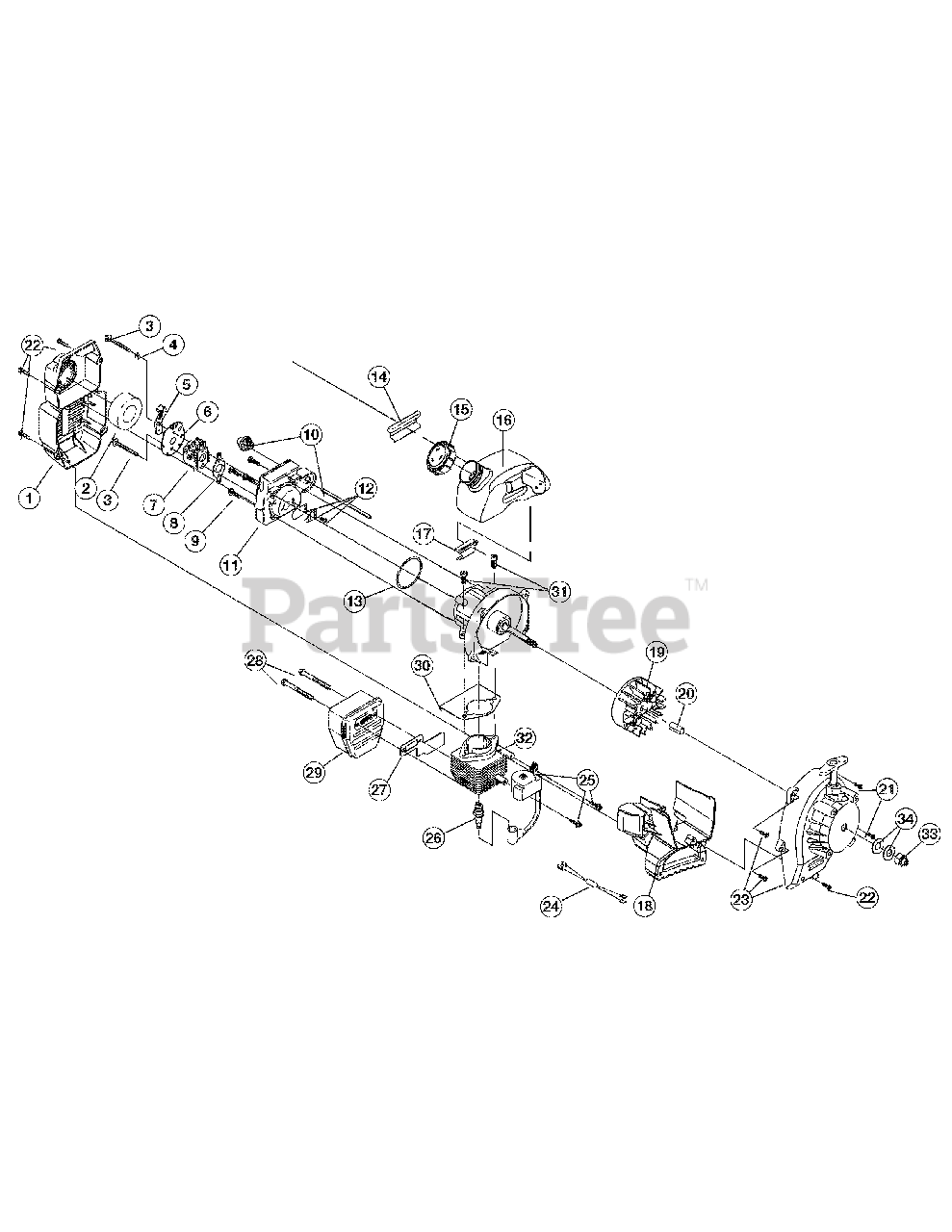

YGBV (41ASGBPG900) - Yard Machines Blower Vacuum Engine Assembly Parts Diagram

Blower Vacuum

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly

Note: (Incl. Ref No. 2 & 22)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 936-0271

Wavey Washer

$4.49

$

In Stock, Qty 10

0

5

MTD 753-04418

Choke Lever Assembly

$

$

Not available

6

MTD 753-04419

Choke Plate Assembly

Note: (Incl. Ref No. 5)

$

$

Not available

7

MTD 753-05153

Carburetor Assembly

Note: (Incl. Ref No. 8)

$74.99

$

Usually ships in 3-6 days

0

8

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

9

MTD 791-181860

Carb Mount Screw

$

$

Not available

10

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 17

0

11

MTD 753-1196

Carb Mount Assembly

Note: (Incl. Ref No. 9, 12 & 13)

$

$

Not available

12

MTD 791-684451

Reed Assembly

$

$

Not available

13

MTD 721-04163

O-Ring

$3.99

$

In Stock, Qty 6

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 3 left!

0

16

MTD 753-04310

Fuel Tank Assembly

Note: (Incl. Ref No. 15)

$

$

Not available

17

MTD 791-145308

Front Mounting Pad

$

$

Not available

18

MTD 791-182401

Shroud Extension

Note: (Incl. Ref No. 22)

$

$

Not available

19

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

20

MTD 750-04260

Spacer

$9.49

$

Usually ships in 3-6 days

0

21

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

22

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-04749

Starter Housing Assembly

Note: (Incl. Ref No. 21 & 22)

$

$

Not available

24

MTD 753-06332

Wire Lead Assembly

$

$

Not available

25

MTD 753-05866

Module Assembly

$92.99

$

Usually ships in 3-6 days

0

26

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

27

MTD 791-180980

Exhaust Gasket

$7.99

$

Usually ships in 3-6 days

0

28

MTD 710-04188A

Muffler Mounting Bolt Assembly

$4.49

$

Usually ships in 3-6 days

0

29

MTD 753-05709

Muffler Assembly
(Superseded to 753-05169)

Note: (Incl. Ref No. 27, 28 & Spark Arrestor)

$112.99

$

Usually ships in 3-6 days

0

30

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

31

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

32

MTD 753-04814

Cylinder Assembly

Note: (Incl. Ref No. 30 & 31)

$83.99

$

In Stock, only 1 left!

0

33

MTD 791-181524

Crankshaft Extension

$

$

Not available

34

MTD 9162-1

Washer

$4.49

$

In Stock, only 3 left!

0

MTD 753-1209

Piston Ring Set

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04924

Short Block Assembly

Note: Not Shown (Incl. Crankcase, 9, 26 & 30-32)

$

$

Not available
